Collection: Graco Ultra 490 / 495 / 595 / 650 XT Sprayer & Parts
Which Graco Ultra 395 / 490 / 495 / 595 / 650 XT do I have? ยท Versions, model numbers & manuals
Graco has built several versions of the Ultra 395 / 490 / 495 / 595 / 650 XT. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.
| Version | Model / part numbers | Graco manual |
|---|---|---|
| Ultra 490 XT / Ultra 495 XT / Ultra 650 XT | โ | Operation manual 3A9095 (rev. D) |
| 490 / 495 / 595 / 650 | โ | Operation manual 3A6491 (rev. R) |
| Ultra 395 / Ultra 450 / Ultimate 395 / Ultimate 450 | 25F503, 25F504, 25F505, 25F512, 25F513, 25F514, 25F522, 25F521, 25F506, 25F507, 25F508, 25F515, 25F516, 25F523, โฆ | Operation manual X020252 (rev. E) |
| Ultra 395 / Ultimate Nova 395 / Ultra 495 / Super Nova 495 | 233960, 233961, 233962, 234180, 826014, 233966, 233967, 233968, 234183, 234181, 234182, 234186, 233974, 826017, โฆ |
Service manual 309674 (rev. P) Operation manual 309725J Operation manual 309725E Operation manual 309665 (rev. L) |
| Ultra 395t (B) / Ultra 495t / Ultra 595t / Ultra Max II 490t (C) | 233960, 233961, 233962, 233966, 233967, 233968, 234490, 234435, 249911, 249913, 249914, 249915, 249916, 249917, โฆ | Parts list 309675 (rev. V) |
| Ultra 395 (B) / Ultra 495 / Ultra 595 / Ultra Max II 490 (C) | 234180, 249589, 234183, 234181, 234182, 234186, 233974, 248660, 234439, 249932, 249933, 253104, 253105, 249938, โฆ | Parts list 309707 (rev. S) |
| Ultra 395 PC / Ultimate NOVA 395 PC / Classic S 395 PC / Classic S 495 PC | 17C314, 17C315, 17C317, 17C391, 17C390, 17C408, 826196, 826197, 826198, 17C361, 17C362, 17C359, 17E023, 17E025, โฆ | Operation manual 334466 (rev. J) |
Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.
About Graco Ultra 490 / 495 / 595 / 650 XT Sprayer & Parts

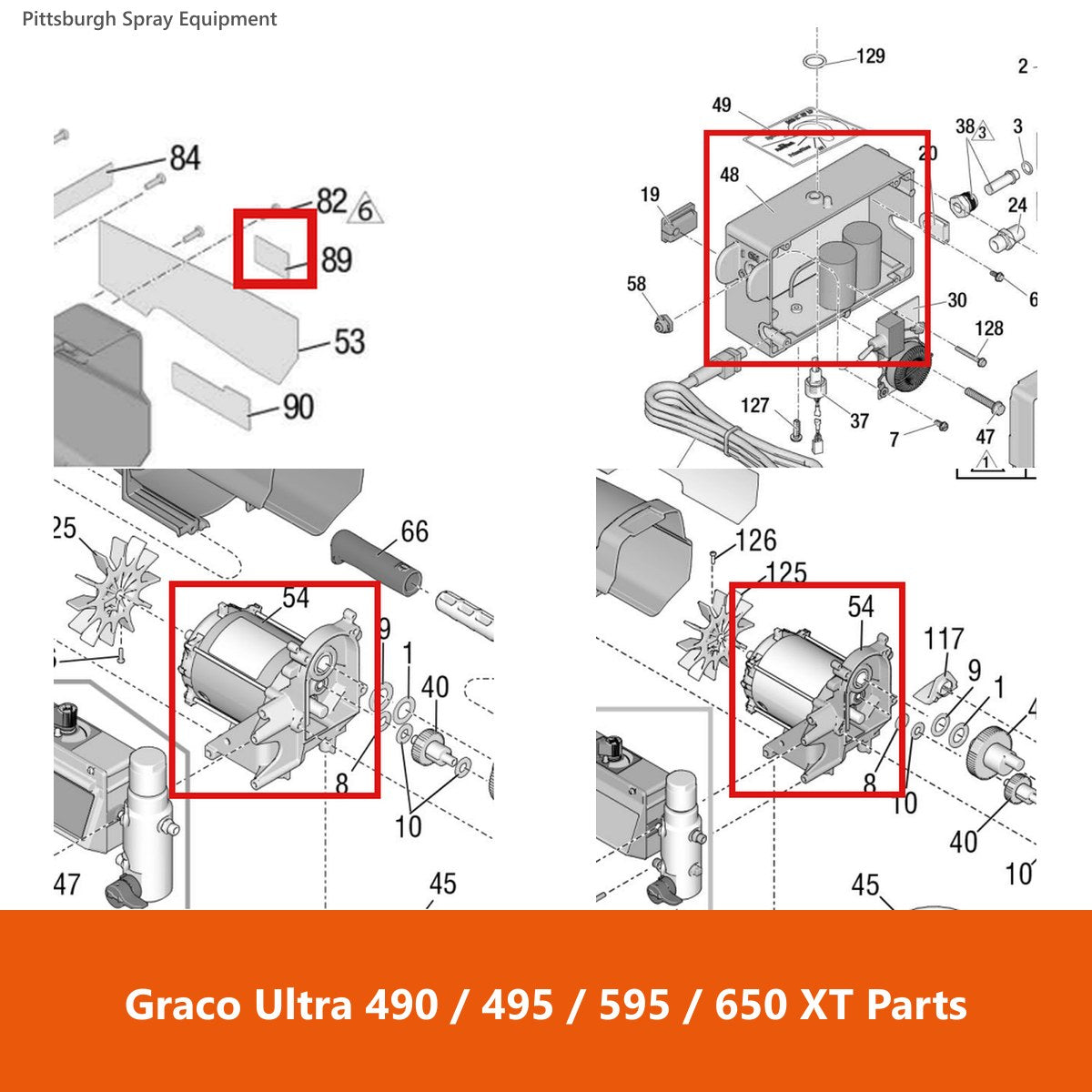

Shop the Graco Ultra 395 / 490 / 495 / 595 / 650 XT and genuine Graco replacement parts for it. Every part in this collection is listed by part number in Graco's own manuals for this machine, and each product page links the Graco manual so you can match the reference number on the exploded view before you order. Not sure which part or version you have? Call (888) 714-1410 or email sales@pittsburghsprayequip.com with the model number from your unit's label.
Why buy from Pittsburgh Spray Equipment
- Parts matched to Graco's parts lists and part numbers for this model
- Help identifying worn parts and the right repair kit from our equipment techs
- Financing available on larger orders
