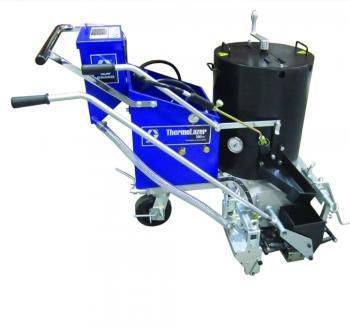

Graco ThermoLazer 200TC and Parts

Which Graco ThermoLazer do I have? ยท Versions, model numbers & manuals

Graco has built several versions of the ThermoLazer. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.

Version Model / part numbers Graco manual
ThermoLazer Pavement Marking System 258699, 257500 Parts list 313880 (rev. D)
Service manual 313879 (rev. B)
Operation manual 313787 (rev. C)
ThermoLazer 200 / ThermoLazer 200TC / ThermoLazer 300TC / ThermoLazer ProMelt โ€” Parts list 3A1321 (rev. T)
Operation manual 3A1319M
Service manual 3A1320N

Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.

Graco ThermoLazer 200TC and Parts

๐Ÿ“˜ Reference documents:

Use the exploded diagrams in these PDFs to identify part numbers, then find them on this page or contact us.

This collection groups the thermolazer 200tc and parts products and accessories in stock โ€” every SKU is genuine OEM Graco. Need help identifying the exact part you need? Contact us and we'll ID it same-day.

How to find your part

  1. Grab the part number from the machine label or from your Graco parts manual.
  2. Enter that part number in the search bar above, or browse the products below.
  3. Not sure? Send us a photo โ€” we'll walk you through it.
