Collection: Graco LineLazer V 5900 Parts

Which Graco LineLazer 5900 do I have? · Versions, model numbers & manuals

Graco has built several versions of the LineLazer 5900. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.

Version	Manual date	Model / part numbers	Graco manual
LineLazer II 3900, 5900	—	232651, 232652, 232661, 232662	Operation manual 308873 (rev. D)
LineLazer III 3900 / LineLazer III 5900	2002	233688, 233689, 233664, 233694, 233690, 233691, 233627, 233695	Operation manual 309413 (rev. B) Service manual 309414 (rev. N)
3900 (IV) / 5900 (IV) / 200HS (IV)	—	253920, 253953, 255151, 255152, 253921, 253954, 255153, 255154, 253922, 253955, 255155, 255156	Operation manual 312190 (rev. C)
3900 (IV) / R300 / 5900 (IV)	—	248862, 248863, 249008, 249009, 248864, 248865, 24M605, 24M607, 248866, 248867, 249010, 249011, 248868, 248869	Operation manual 311017 (rev. H)
3900 Line Stripers (LineLazer IV) / 5900 Line Stripers (LineLazer IV)	—	253920, 253953, 255151, 255152, 253921, 253954, 255153, 255154	Service manual 312195 (rev. M)
3900 (IV) / R300 (IV) / 5900 (IV) / FieldLazer R300	—	—	Service manual 311020 (rev. ZAB)
LineLazer V 3900 (Standard Series and High Production (HP) Auto Series) / LineLazer V 5900 (Standard Series and High Production (HP) Auto Series)	—	17H449, 25P330, 17H450, 25P331, 17K577, 25P332, 17H451, 17K638, 17H452, 17K579, 25P333, 17H453, 25P334, 2012215, …	Parts list 3A3389 (rev. N)
LineLazer V 3900 / LineLazer V 5900 / LineLazer V 200HS / LineLazer V 200DC	—	—	Operation manual 3A3428 (rev. B)
UltraMax II and Ultimate MX II 695/795 Displacement Pump Repair	—	248204, 255968, 248205, 249059, 249057, 277069, 277070, 253056, 257146	Service manual 310643 (rev. W)

Manual date = the revision date printed on Graco's document, not the production years. Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.

About Graco LineLazer V 5900 Parts · 203 in stock · Manual · Buying Guide · FAQ

Every replacement part for the Graco LineLazer V 5900 line striper ships direct from Pittsburgh Spray Equipment . Genuine OEM only. Same-day part identification: call (888) 714-1410, email sales@pittsburghsprayequip.com, or text a photo of your ID plate to (833) 670-5756.

Engine: Honda GX200

Owner's Manual

LineLazer V 5900 Owner + Parts Manual

Common Repair Categories · Why Buy from PSE · FAQ

Common Repair Categories

Pump service — packings, piston rods, seats, rebuild kits
Filters & strainers — inlet strainer, gun filters

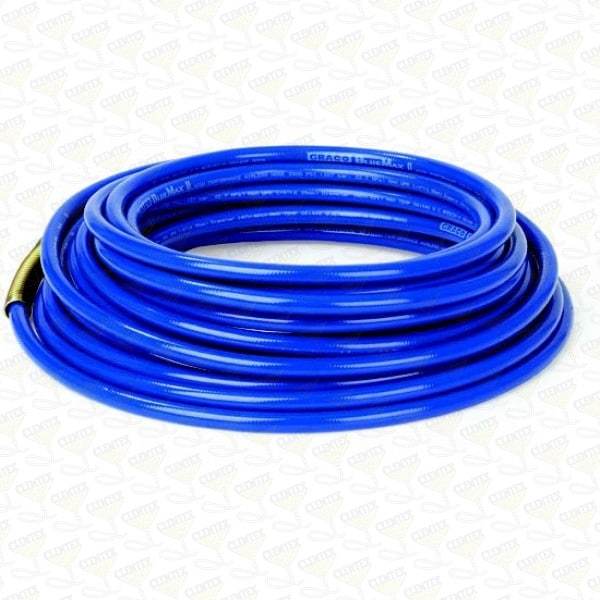

Hoses & fittings — 50-ft airless hose, whip hose, quick-disconnects
Guns & tips — LineLazer guns, HD RAC tips, tip guards
Wheels & drive — front caster, rear wheels, wheel bearings, tie-rods
Engine & throttle — Honda GX200 parts, throttle cables, spark plugs
Seals & gaskets — pressure adjustment, o-rings, packing kits

Use the filter menu above the product grid to narrow by category.

Why Buy Genuine OEM from Pittsburgh Spray Equipment

Genuine OEM parts shipped from Graco
Same-day part ID help — text a photo of your machine's ID plate to (833) 670-5756
Financing available on machines over $1,000
Ships direct from stocked Pittsburgh warehouse

FAQ

What Honda engine does the V 5900 use?
The Graco LineLazer V 5900 is powered by a Honda GX200 gas engine (higher displacement than the 3900's GX160 to support the higher pressure output). 10W-30 or 5W-30 oil, capacity about 0.6 quart, oil change every 50 hours.

What's the difference between the V 5900 and V 5900 HP?
The V 5900 HP is the "High Performance" variant with a different pump assembly optimized for high-flow multi-gun striping (up to 4 guns simultaneously) and heavier daily throughput. Guns, tips, hoses, and engine parts interchange between the two; pump components do not.

My V 5900 pump packings are leaking — do I rebuild or replace?
A pump rebuild kit is the cheaper first step and usually restores full performance if the piston rod is undamaged. If you're seeing scoring on the pump chamber walls or the piston rod, replace the pump assembly rather than rebuilding — a compromised chamber will chew through fresh packings quickly.

How do I identify which V 5900 generation I have?
The Graco model number is on the ID plate on the frame near the engine mount. Match that number to Graco's part lookup or use it as the search term in your owner's manual — different production years shipped with different pump models, so the model number is what determines correct replacement parts.
