Collection: Graco GH 833 / 933 Big Rig Sprayer & Parts
Which Graco GH 833 / 933 Big Rig do I have? ยท Versions, model numbers & manuals
Graco has built several versions of the GH 833 / 933 Big Rig. Find the model or part number on your unit's label and match it to a row below. Parts can differ between versions, so check the manual for your version before ordering.
| Version | Model / part numbers | Graco manual |
|---|---|---|
| GH1017es Bare / Vanguard / GH2570es Bare / Vanguard / GH733es Bare / Vanguard / GH5040es Bare / Vanguard | 16U277, 16U277V, 16U278, 16U278V, 16U279, 16U279V, 16U280, 16U280V, 16U285, 16U285V, 16U281, 16U281V, 17B484, 17B484V, โฆ | Parts list 332158 (rev. J) |
| GH733 / GH833 / GH933 / GH2570 | 24U326, 249767, 253473, 24U328, 24U325, 24U327 | Parts list 311492 (rev. H) |
| GH 833 Sprayers | 249318, 249617, 253471, 253472, 16U287, 16U288, 16V258, 16V260, 249318V, 16U287V |
Parts list 311484 (rev. S) Operation manual 311279 (rev. G) Service manual 311283 (rev. J) |
| GH1017es Bare / Vanguard / GH2570es Bare / Vanguard / GH733es Bare / Vanguard / GH5040es Bare / Vanguard | 16U277, 16U277V, 16U278, 16U278V, 16U279, 16U279V, 16U280, 16U280V, 16U285, 16U285V, 16U281, 16U281V | Service manual 332157 (rev. B) |
| GH1017es Bare / Vanguard / GH2570es Bare / Vanguard / GH733es Bare / Vanguard / GH5040es Bare / Vanguard | 16U277, 16U277V, 16U278, 16U278V, 16U279, 16U279V, 16U280, 16U280V, 16U285, 16U285V, 16U281, 16U281V, 17B484, 17B484V | Operation manual 332156 (rev. E) |
Links open the PDF on graco.com. Need help identifying your version? Call (888) 714-1410.
About Graco GH 833 / 933 Big Rig Sprayer & Parts

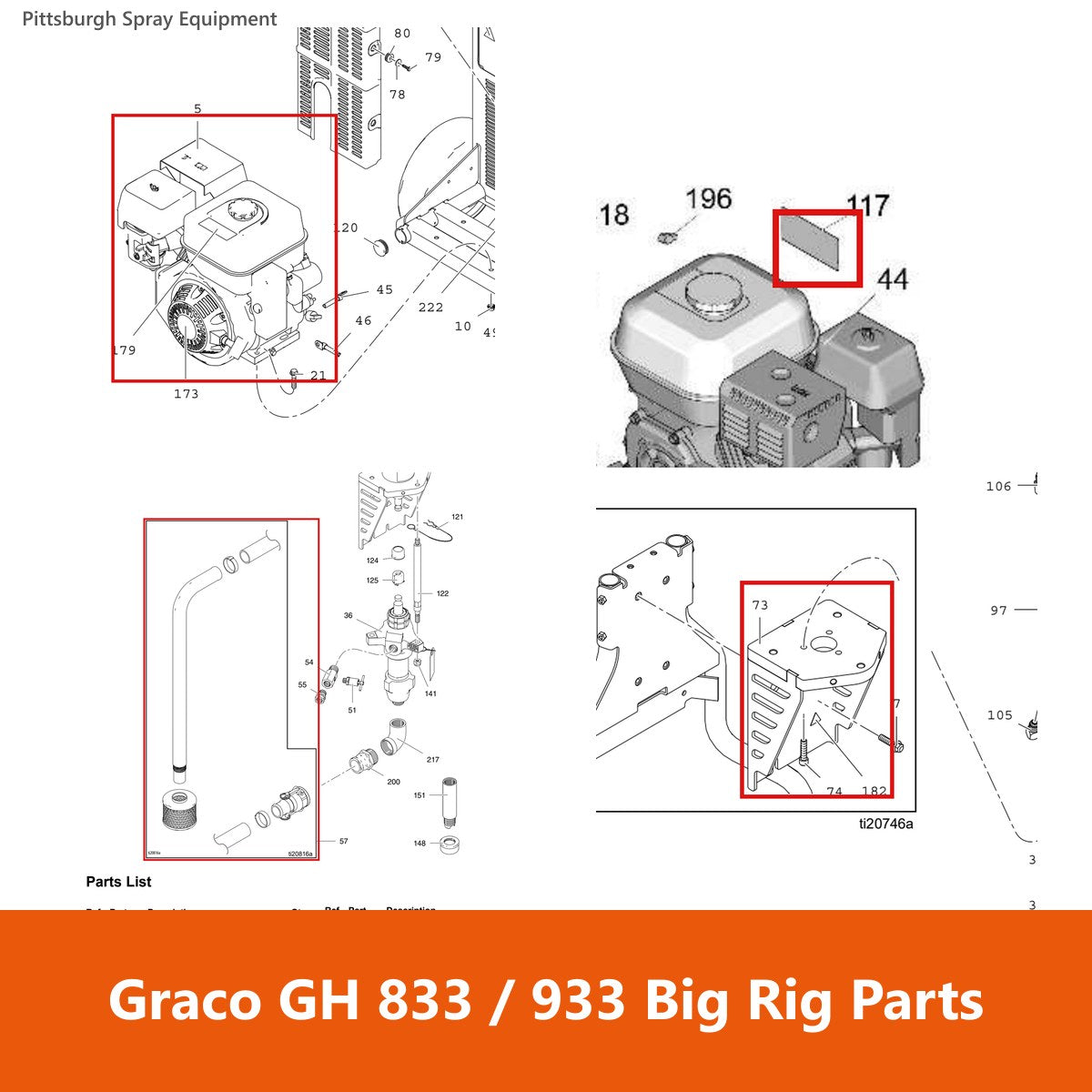

Shop the Graco GH 833 / 933 Big Rig and genuine Graco replacement parts for it. Every part in this collection is listed by part number in Graco's own manuals for this machine, and each product page links the Graco manual so you can match the reference number on the exploded view before you order. Not sure which part or version you have? Call (888) 714-1410 or email sales@pittsburghsprayequip.com with the model number from your unit's label.
Why buy from Pittsburgh Spray Equipment
- Parts matched to Graco's parts lists and part numbers for this model
- Help identifying worn parts and the right repair kit from our equipment techs
- Financing available on larger orders
