Collection: Fiberglass Spray Equipment & Sprayers

Name: Graco 258840 — RS External Mix Gel Coat Gun with Tip
Brand: Graco
SKU: 258840
Price: 2870.0 USD
Availability: InStock

About Fiberglass Spray Equipment & Sprayers · Replacement Guns · Buying Guide · FAQ

Just need a replacement gun? If you already have a pump or pressure pot and only need the spray gun itself, browse our Gel Coat & Fiberglass Chopper Spray Guns collection — standalone Binks and Graco guns without the full rig.

Shop complete fiberglass spray equipment for gel coat, resin wet-out, and chopped-strand FRP production — from single-gun setups for a small mold shop to full plural-component chopper rigs for boat and tub manufacturers. Call 888-714-1410 for sizing help, or email sales to spec a rig for your booth.

Why buy from Pittsburgh Spray Equipment

Authorized Binks and Graco dealer — full manufacturer warranty, real support
Tech support that answers — call 888-714-1410 or email sales, no phone tree
Financing available

Compare Chop Systems, Gel Coat Systems, and Resin Wet-Out Rigs

System type	What it does	Typical use	Example
FRP Chop System (internal mix)	Sprays resin + catalyst + chopped glass strand in one pass; catalyst blends inside the gun	In mold spray applications for resin wet out applications that require fiberglass chop	Graco 16R004 IC 13:1 CMB 25
FRP Chop System (external mix)	Same but catalyst injects at the tip — easier cleanup		Graco 16R003 XC 13:1 CMB 25
FRP Gel Coat System	Sprays pigmented gel coat only (no chop) at consistent pressure so mils stay in the 18-21 range	First color layer of boats, tubs, and composite parts	Graco 16R030 FRP RS Gel System
Century Gel Coat System (cart or CMB)	cart-mount or cart-mast-boom for reach around large molds	gel coat spraying at moderate to high volume	Binks CX2017HC CMB
Resin Wet-Out Outfit	Pumped resin delivery to a wet-out gun (no chop, no catalyst injection)	Laying up mat and cloth by hand then spraying out the mat	Binks 14:1 Resin Spray Outfit

Fiberglass Spray Equipment Buying Guide

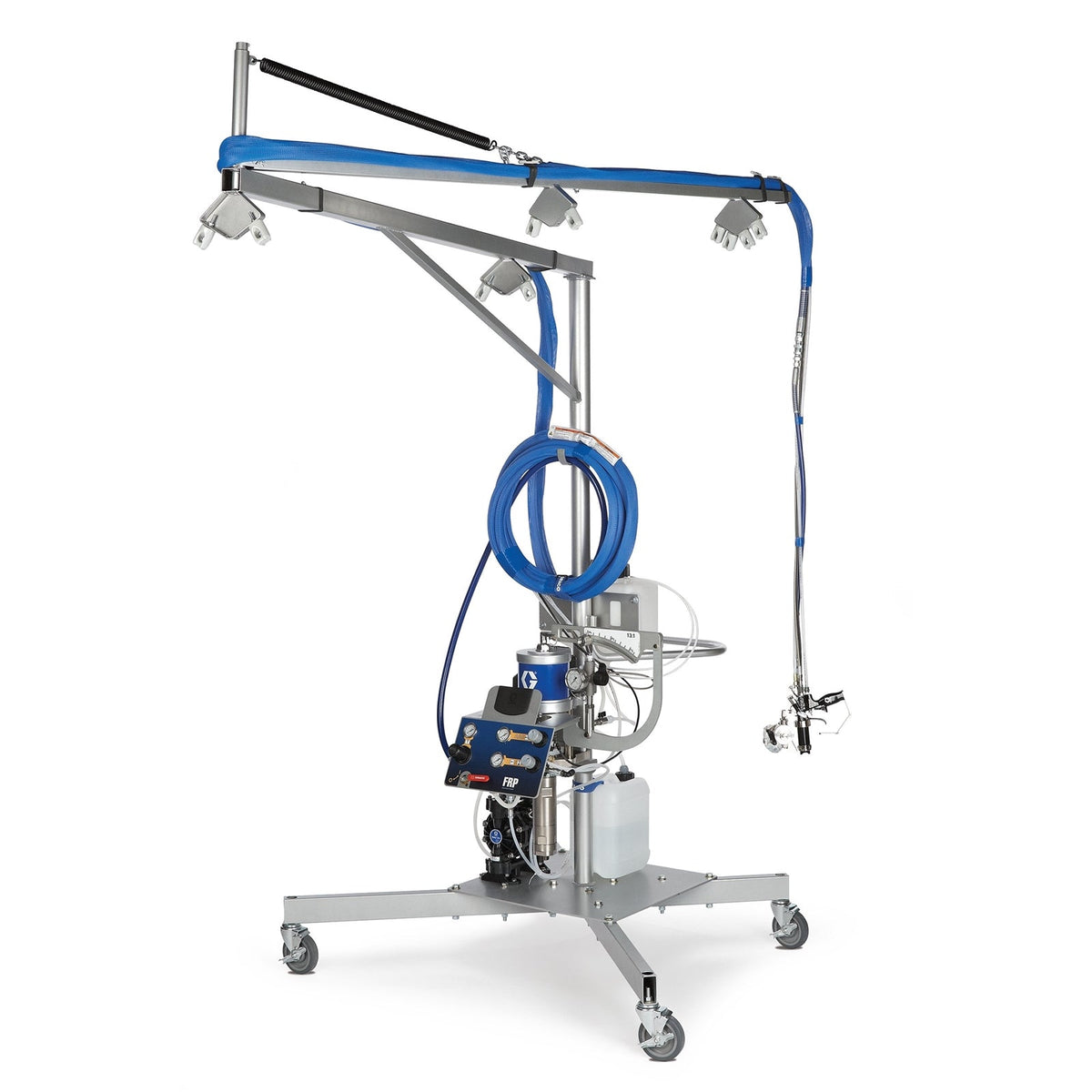

Graco FRP RS Chopper Systems

Graco's FRP RS platform pairs a plural-component airless pump with an RS chop gun and cutter, shipped as a complete rig on a cart, boom, or column mount. The 16R003 (external mix) and 16R004 (internal mix) are the workhorse 13:1 CMB configurations with 25 ft hose —great for fiberglass manufacturing in molds. Longer 50 ft variants (16R094, 16R129) and no-hose column-mount versions (16R097, 16R109, 16R144) let you match the rig to your booth layout.

Graco FRP RS Gel Coat Systems

For gel coat (no chopped strand), Graco's RS Gel Systems deliver material at consistent pressure . The 16R030 XG 13:1 comes with a 25 ft hose — pair with a Graco RS Internal Mix Gel Coat Gun or External Mix Gel Coat Gun depending on whether you care more about no-smell (external) or lower catalyst waste (internal).

Binks Century Gel Coat Systems

Binks Century outfits are available in LEL and air assist airless. They also offer a higher PSI making them better atomizing for some materials. Optional fluid heaters and flow meters available to make rigs that work well in the colder climates The CX2017HC-A2F0S25 is a cart-mounted 17:1 rig; the CX2017HC-B3F0T25 adds a mast + boom for reach around a large mold.

Binks Century, 2100 GW, and Wet-Out Guns

If you already have a pressure pot or a plural-component pump, PSE stocks the Binks guns as standalone units. The Binks 2100 GW Plural Component Spray Gun is the low-production pick — pair with a pressure pot for small-batch gel coat or resin. The Binks Century LEL and Binks Century for FRP, Gel Coat, Wet-Out, Resins & Vinyl Ester handle the full material range. For hand-laminate wet-out after the gel coat, spec the Binks 14:1 Resin Spray Outfit.

Frequently Asked Questions

Can I use one system for both gel coat and resin?
Ideally not. Resin uses a red catalyst that will contaminate white gel coat, and gel coat has fillers that are more abrasive than plain resin — switching pumps between the two materials creates stress that can shorten pump life. Run separate rigs (a gel coat pump + a resin wet-out pump) even in the same booth. If you must mix them it is possible but not recommended to do so if you have to the gel coat will use a larger tip than the resin.

Do I need a chopper for boat production?
Not always. Most boat shops only use the chopper for the layers behind the first layer which is gel coat; Choppers can be used for any mold application but many customers tend to by a gel coat/ wet out setup to allow spraying the gel coat than hand laying up the fiberglass roving and wetting it with the spray outfit . Sometimes truck hoods and similar parts manufacturers will use a full chopper due to the higher volume of chop being placed in the mold to make the product

What air supply does a chopper gun need?
A 1/2-inch air hose is the minimum. The chopper is air-hungry — it cuts glass strand from a roving spool — so an undersized air line will bog down the cutter and short-choke the strand.

How long can the gun hose reach from the boom?
Keep chopper hoses at 25 ft or less and don't run more than 4-5 ft off the boom — longer hose lengths on a chopper cause pressure drop that can reduce performance , and dragging hose from a boom on a shop floor gets cut easily.

Cart-mount, cart-mast-boom (CMB),
Cart-mount is great if you don't have a chopper. Cart-mast-boom adds a mast and boom for larger molds where you need to reach further without dragging the pump and if you have a chopper to help carry the weight of the fiberglass roving for the chopper.
