Collection: Binks Model 7 Spray Gun Parts
About Binks Model 7 Spray Gun Parts · Learn More ▾
Shop the full line of binks model 7 spray gun parts at Pittsburgh Spray Equipment — 33 in-stock products including complete units, kits, and OEM parts. Not sure which model fits your work? Call 888-714-1410 or email sales for real technical help.
Why buy from Pittsburgh Spray Equipment
- Full manufacturer warranty — real support before and after the sale
- Tech support that answers — call 888-714-1410 or email sales, no phone tree
- Financing available — Credit Key + Klarna at checkout on qualifying orders
- 60+ years serving the finishing industry — Pittsburgh-based, family-owned

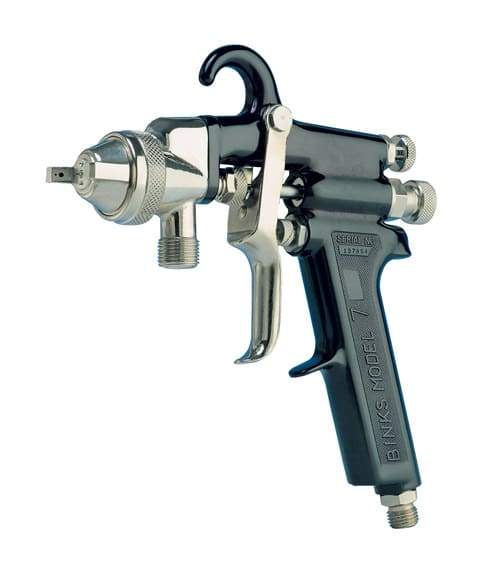

The Binks Model 7 spray gun is an industry-standard HVLP and pressure-fed atomizer trusted across automotive refinishing, industrial coating, and production finishing since its introduction. This collection provides OEM and aftermarket replacement parts—including packing nuts, gaskets, triggers, fluid nozzles, and complete repair kits—to keep Model 7 guns operational without downtime. Whether you're maintaining a single gun or managing a fleet, sourcing authentic Binks model 7 spray gun parts ensures spray pattern consistency, fluid delivery accuracy, and long-term reliability. Our inventory covers wear items, seals, and assemblies compatible with both standard and air-assisted configurations.
How to Choose the Right Binks Model 7 Spray Gun Parts
- Verify part number matches your specific Model 7 configuration (standard, air-assisted, or pressure-fed variant).
- Check material composition: stainless steel nozzles resist corrosion; brass fittings suit most solvent-based coatings.
- Confirm fluid nozzle size (1.3mm, 1.5mm, 1.8mm, etc.) matches your spray material viscosity and application.
- Review gasket and packing sets for bulk purchases—5-packs reduce per-unit cost for high-volume shops.
- Ensure OEM certification: genuine Binks parts maintain warranty and spray quality versus aftermarket alternatives.
- Cross-reference air cap and fluid tip compatibility if upgrading atomization patterns.
- Stock consumables (packings, gaskets, triggers) quarterly to avoid production gaps during peak seasons.
Model Comparison
| Part Description | Part Number | Material / Qty | Typical Use |
|---|---|---|---|
| Model 7 Repair Kit (Complete) | Binks 6-188 | Multi-part assembly | Full overhaul, rebuild |
| Packing Nut (Model 7 / Model 18) | Binks 54-1340 | Stainless steel | Needle seal, fluid control |
| Spray Gun Packing (5-pack) | Binks 54-747-5 | Synthetic rubber, qty 5 | Plunger rod seal replacement |
| Fluid Nozzle 1.8mm (Stainless) | Binks 45-3601 | Stainless steel | Fine-finish atomization, solvent coatings |
| Trigger Assembly | Binks 54-753 | Cast metal & spring | Spray activation, worn-out replacement |
Frequently Asked Questions
What is the difference between Binks Model 7 standard and air-assisted configurations?
Standard Model 7 guns use gravity or siphon feed without external air shaping. Air-assisted variants add a secondary air cap and lines to thin the spray pattern edges, improving atomization on high-viscosity materials. Parts compatibility is mostly interchangeable, but air-assisted guns require dedicated cap assemblies and air valves not included in standard kits.
How often should I replace packing and gasket sets on a Model 7?
Heavy-use shops (40+ hours weekly) should replace packings and gaskets every 3–6 months. Light-duty environments may extend to 12 months. Signs of wear include fluid leakage around the needle rod and air leaks at the trigger mechanism. Bulk 5-packs reduce inventory cost and ensure spare sets are always on hand.
Are Binks Model 7 parts backward compatible with older Binks spray guns?
Model 7 parts are not compatible with Model 2, Model 3, or earlier Binks designs due to different needle and nozzle threads, packing diameters, and trigger mechanisms. Always verify your gun's model stamp before ordering. Cross-compatibility exists between Model 7 and Model 18 for select items like the packing nut (Binks 54-1340).
What nozzle size should I use for different coating materials?
Use 1.3mm nozzles for thin enamels and lacquers; 1.5mm for standard acrylics and urethanes; 1.8mm (like Binks 45-3601) for primers and heavy-bodied industrial coatings. Nozzle size directly affects spray pattern width and fluid delivery rate. Match viscosity to nozzle to prevent tip clogging and achieve uniform finish.
Can I mix OEM Binks parts with aftermarket alternatives in a Model 7 rebuild?
Mixing is not recommended. OEM Binks parts maintain precise tolerances and spray quality; aftermarket gaskets and packings may leak or wear faster. For warranty coverage and consistent atomization across your shop, source complete repair kits from authorized distributors like Pittsburgh Spray Equipment.
