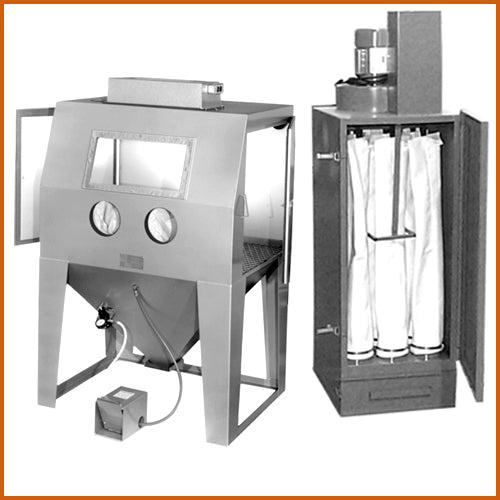

With Trinco 400PT Dust Collector. Designed for continuous blasting operations.
The Trinco 400PT Dust Collector vacuums the dust and contamination from the cabinet. Media is recycled from the gun system to the hopper and back to the gun system.
Inside Depth: 36”
Width: 48”
Height: 36”
Overall Depth: 37”
Width: 53”
Height: 78”
Door Openings: (2) Side Doors
Width: 28”
Height: 30”
Shipping Weight: 835 Lbs.
- Ruggedly built of 14 Gauge welded steel
- Double floor - 1/8” Expandex steel plus Carbon screen
- Trinco Tungsten Carbide nozzle
- Trinco safety enclosed floor valve blasting control
- Trinco LED extra bright lighting
- Trinco large 12”x24” safety glass window for excellent visibility
- Air pressure regulator and gauge
- Trinco easy change window frames - merely loosen a few wing nuts
- Neoprene gloves - 8”
- Two full size doors
400 PT DUST COLLECTOR FEATURES:
Motor: ½ HP, 115V, 60HZ, 1PH
Rating : 400 CFM
Filter Surface area: 40 sq. ft.
Dimensions : 20” W, 22” D, 64” H
9 Trinco Tubular bags
Trinco Manual bag shaker
Removable dust drawer
TRINCO DRY BLAST APPLICATIONS
The applications of Trinco Cabinets are virtually limitless - cleaning, deburring, decorating, deflashing, etching, finishing, honing, peening, etc. All of these uses and more can be accomplished easily with quick sweeps of the gun nozzle. Scale, corrosion, old paint and other surface materials are removed in minutes leaving metal surfaces free of foreign matter and contamination. Even tough mill scale is quickly and efficiently removed.
The usual operating pressure for the Trinco Dry Blast Cabinets is 85 PSI. The equipment utilizes a variety of abrasives such as Trin Mixes glass beads, aluminum oxide, silicon carbide, nut shells, etc. A multitude of finishes are possible ranging from a micro-finish to a coarse-grade finish depending upon the specific media used. Trinco Cabinets can apply the proper abrasive to provide the desired finish for each specific application.
