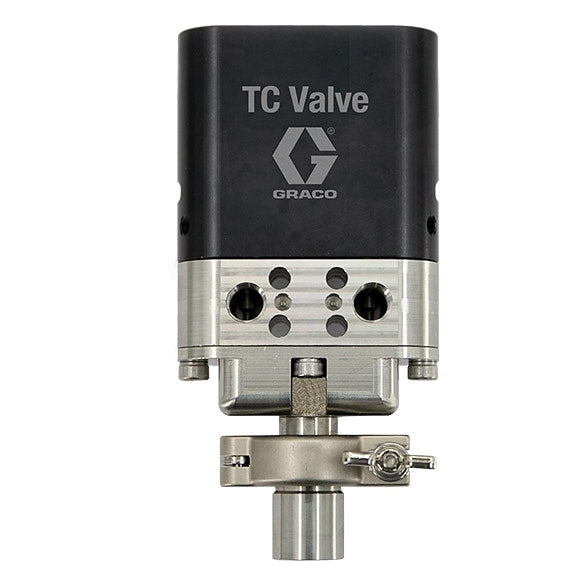

Twin Control (TC) valve independently controls A/B fluid paths for precise mixing and dispense of two component sealants and adhesives.
Mixing dispense valve handles a range of plural component adhesives and sealants for industrial applications of epoxies, silicones, urethanes and thermal interface materials (TIMs).
Features
- High wear model withstands tough materials, extending equipment life.
- Base purge conserves the amount of material used and prevents in-mixer curing, which reduces consumable use.
- Modular design adapts to different installation needs.
- No unique tools are required for maintenance or repair.
Specifications
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Thread Type | Outlet with Clamp |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Twin Control |
| Overall Height (in) | 6.6 |
| Overall Width (in) | 3.3 |
| Wetted Material | 303 Stainless Steel, 17-4 PH Stainless Steel, UHMWPE, PEEK, Solvent-Resistant O-Ring, 440C Stainless Steel, Carbide |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Thread Type | Outlet with Clamp |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Model | Twin Control |
| Overall Height (cm) | 16.8 |
| Overall Height (mm) | 168.7 |
| Overall Width (cm) | 8.4 |
| Overall Width (mm) | 84.2 |
| Wetted Material | 303 Stainless Steel, 17-4 PH Stainless Steel, UHMWPE, PEEK, Solvent-Resistant O-Ring, 440C Stainless Steel, Carbide |
