Spring Driven Hose Reel 3/8 Inch x 20 Ft 300 PSI with Hose - Coxreels LG-LP-320-HV
Not the hose reel you're looking for?
Browse all Hose Reels →

Spring Driven Hose Reel 3/8 Inch x 20 Ft 300 PSI with Hose - Coxreels LG-LP-320-HV

Regular price
$215.99
Sale price
$215.99
Quantity must be 1 or more
Not the hose reel you're looking for?
Browse all Hose Reels →


Feel free to call or chat with us for recommendations.

📦 Ships in 2-3 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Coxreels® LG HI-VIS SERIES — HV "High Visibility" Safety Hose Series powers up the safety of your reel. The HV Hose will add awareness and visibility to your hose creating the safest environ­ment possible. To maximize your safety to the highest level, add EZ-Coil controlled retraction to your Coxreels.

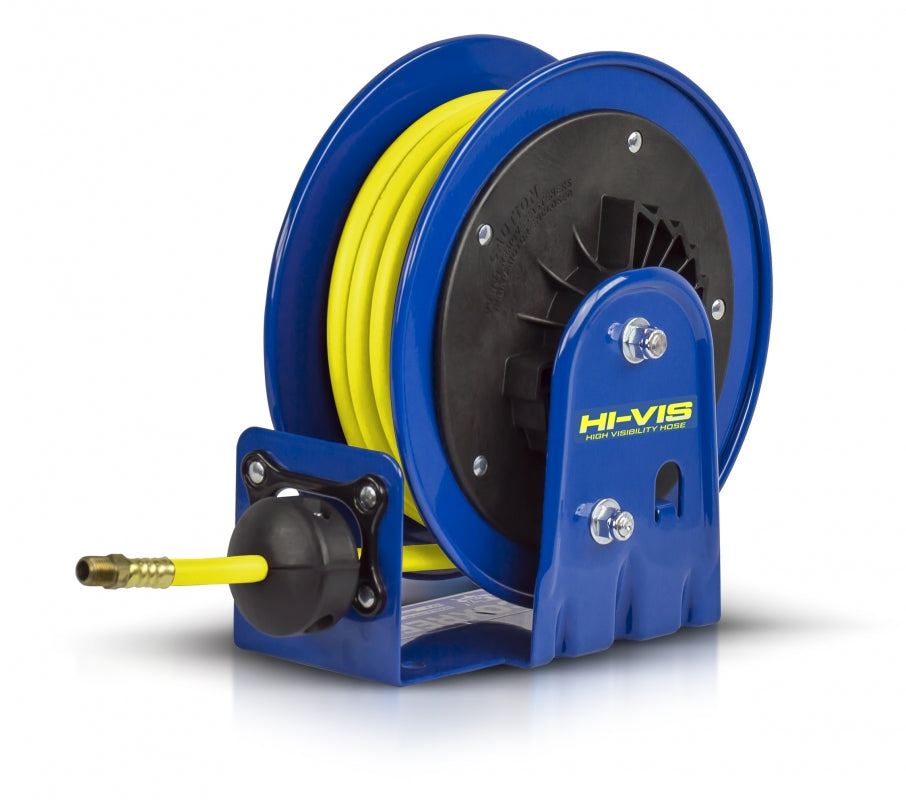

Model LG-LP-320-HV: Compact Low Pressure Spring Rewind Hose Reel: 3/8" I.D., 20' hose capacity, with high visibility safety hose, 300 PSI

  • SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
  • HI-VIS SAFETY HOSE - Hybrid bright yellow hose with a white glossy stripe available Hybrid hoses (PVC + Rubber blend) offer similar performance to rubber with the weight of PVC, combining positive features of both hose types. Increased hose flexibility and better low temperature behavior while maintaining strength and toughness. With enhanced kink resistance and reduced coil memory, they lay flat for a reduced trip hazard potential. Less sticky jacket surface than PVC for better stacking performance and an improved non-marring quality.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, sturdy permanently lubricated precision bearings, and CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
MODEL LG-LP-320-HV
REEL TYPE Spring Driven
I.D 3/8"
O.D 5/8"
LENGTH 20'
HOSE Yes
MAX PSI 300
SHIP WEIGHT (LBS) 11
OVERALL DIMENSIONS (W) (H) (L) 5.25" (W) 10.63" (H) 10.5" (L)
MOUNTING PATTERN (M) (N) 2.5" (M) 6" (N)
BASE (X) (Y) 8.38" (X) 4.69" (Y)
