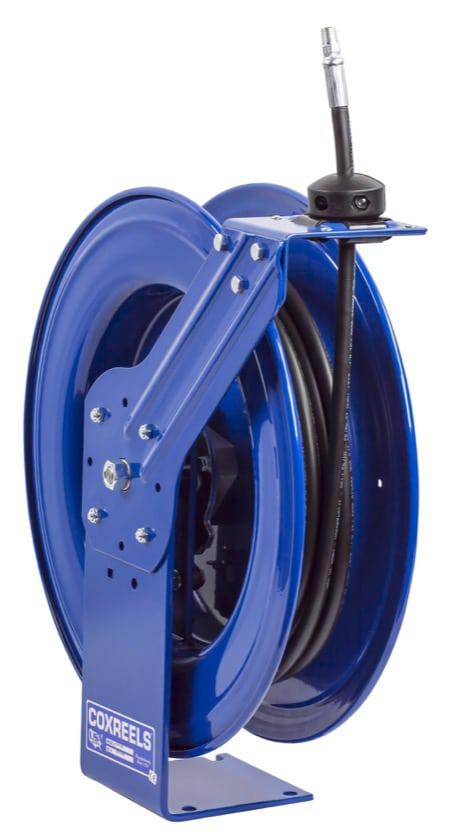

Spring Driven Hose Reel 1/4 Inch x 40 Ft 5000 PSI Grease with Hose - Coxreels HP-N-140

Coxreels^® SH Series — SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

Model HP-N-140: Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 40' hose, 5000 PSI

FEATURES

• Guide arm adjusts to wall, floor, vehicle & overhead positions.
• Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
• 1" solid steel axle and lubricated precision bearings for smooth rotation.
• Enclosed factory tuned and matched cartridge-style spring motor.
• Non-corrosive stainless steel spring, pawl and zinc plated ratchet.
• Multi-position lock ratchet mechanism secures hose at desired length.

• SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
• MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
