Spring Driven Hose Reel 1/4 Inch x 25 Ft 5000 PSI Grease Less Hose - Coxreels SG17L-H125

Coxreels^® SG Series — SG Series expand the capabilities of the "Side Mount" spring driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SG Series (for air/water, oil and grease) ) feature a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard ½" wrench.

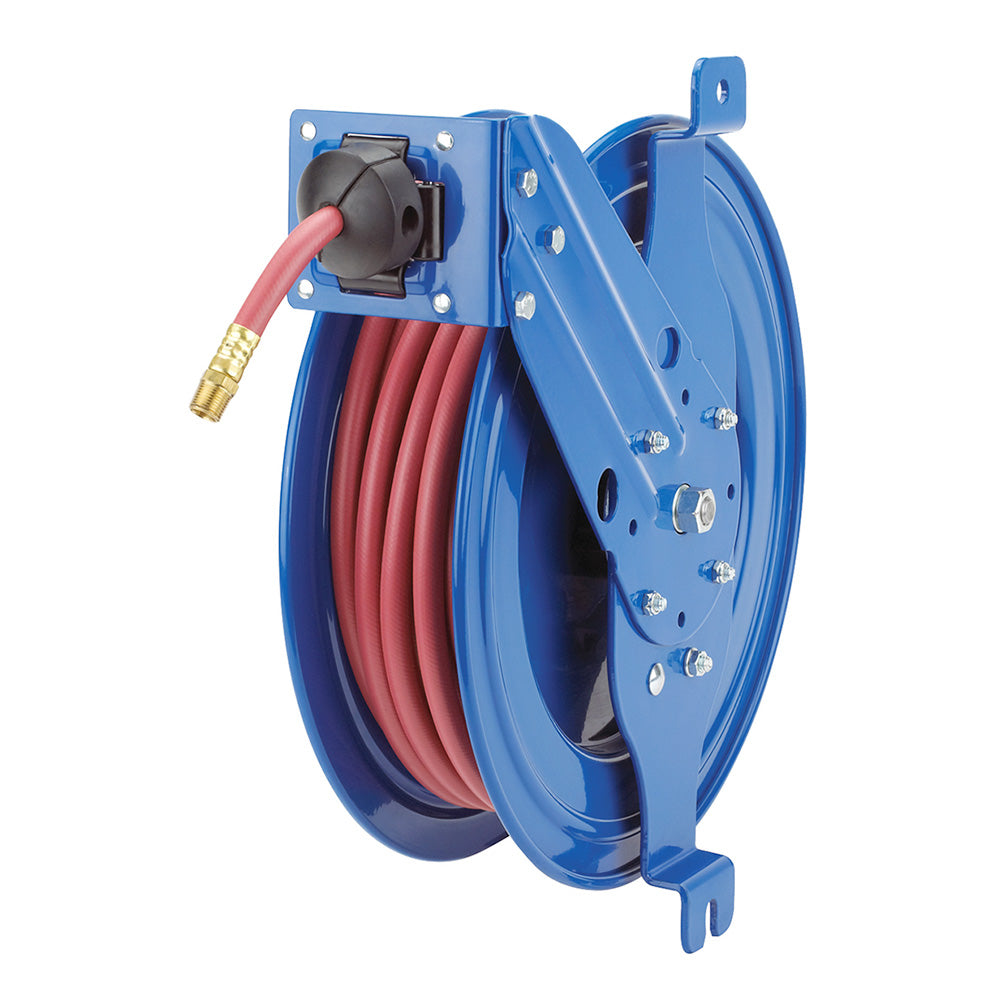

Model SG17L-H125: Side mount reel with guide arm, EZ-Coil safety system equipped, 1/4"x25', less hose, 5000PSI grease and heavy hydraulics applications

FEATURES

• Multi-position lock ratchet mechanism secures hose at desired length.

• SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• SIDE MOUNT DESIGN - Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.
• MULTI-POSITION GUIDE ARM - Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, and sturdy permanently lubricated precision bearings.
