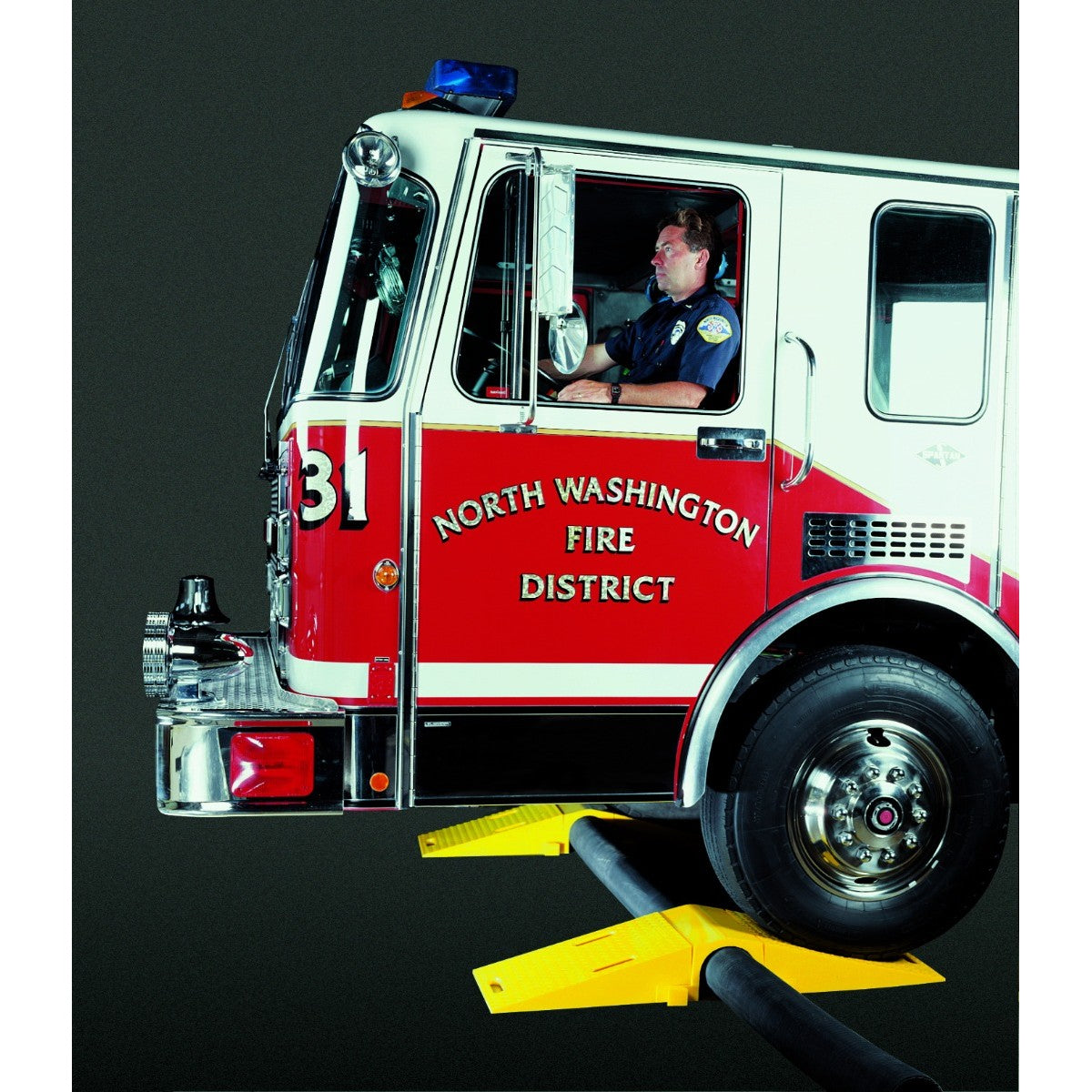

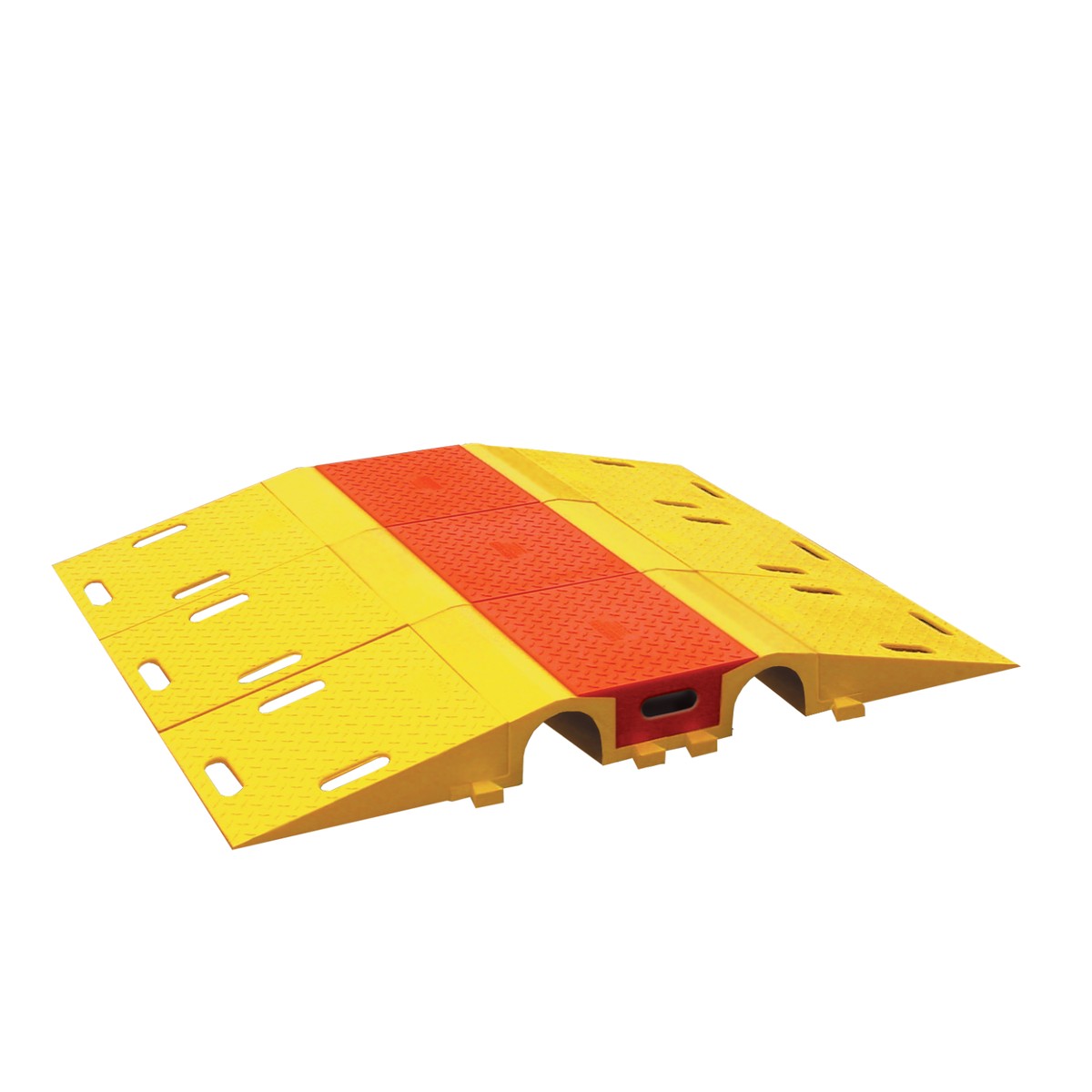

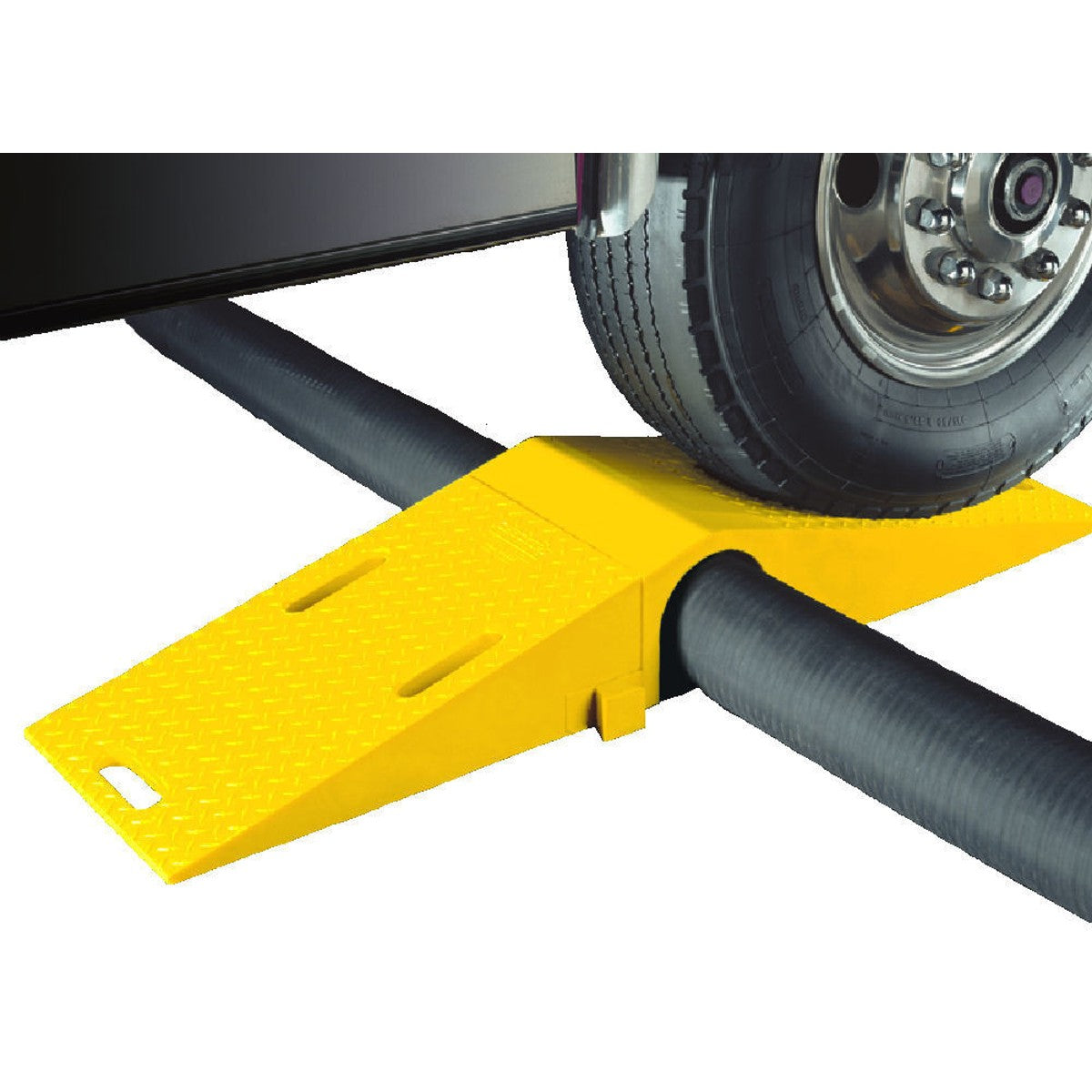

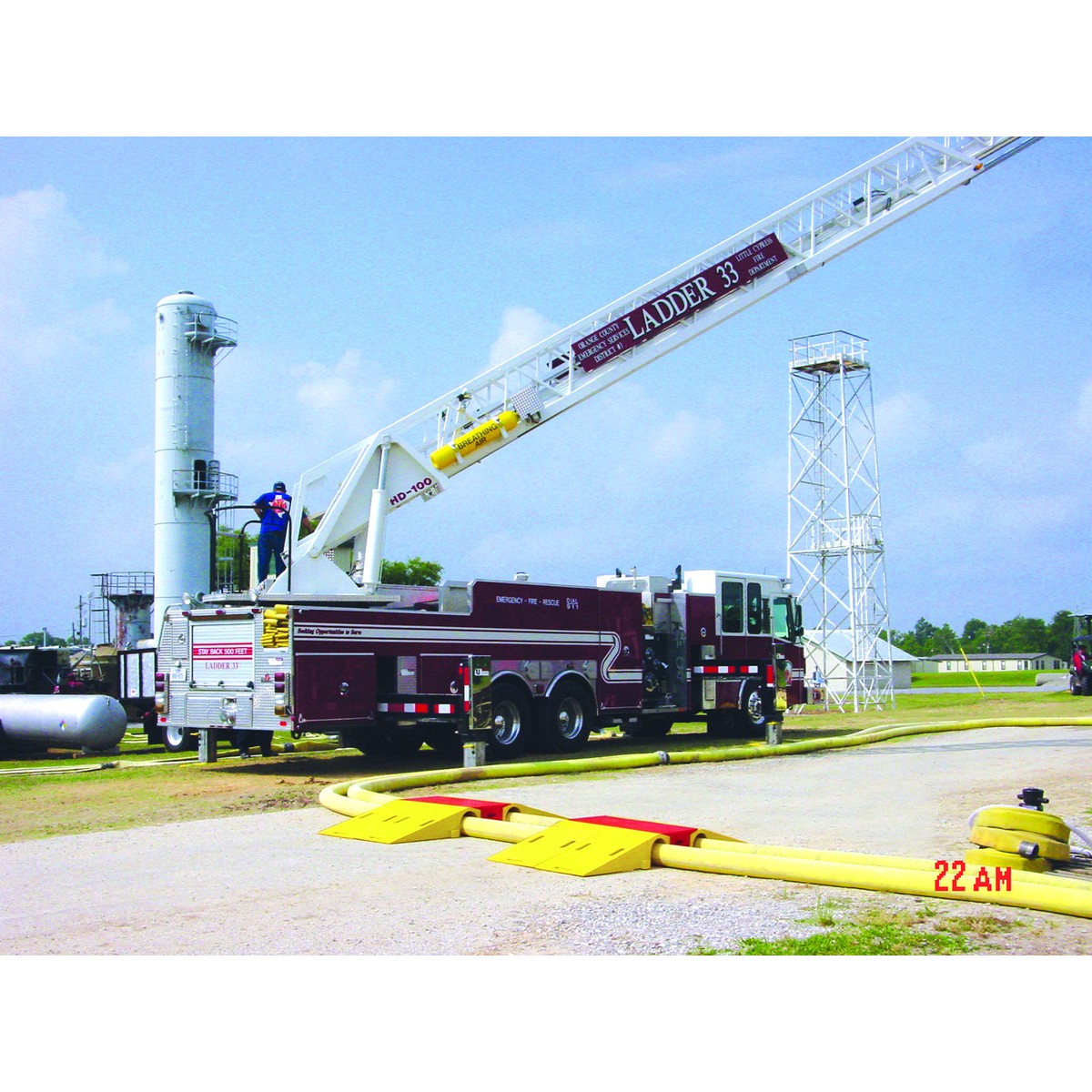

Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 4.5" in diameter.
Additional Specs
| Quantity Included: | 1 |
| Pallet Quantity: | 24 |
| Load Capacity Per Axle: | 19300 lbs |
| Load Capacity Per Tire: | 9650 |
| Length (Inches): | 31 |
| Width (Inches): | 15.63 |
| Height (Inches): | 5.63 |
| Max Cable Outside Diameter (Inches): | 4.5 |
| Number of Channels: | 1-Channel |
| Bridge Length (Inches): | 44 |
| Bridge Width (Inches): | 16 |
| Bridge Height (Inches): | 5.5 |
| Tunnel Diameter: | 4.5 |
| Tunnel Top Length (Inches): | 7.75 |
| Tunnel Base Length (Inches): | 15.63 |
| Ramp Top Length (Inches): | 18.25 |
| Ramp Base Length (Inches): | 14.25 |
| System Weight: | 50 |
