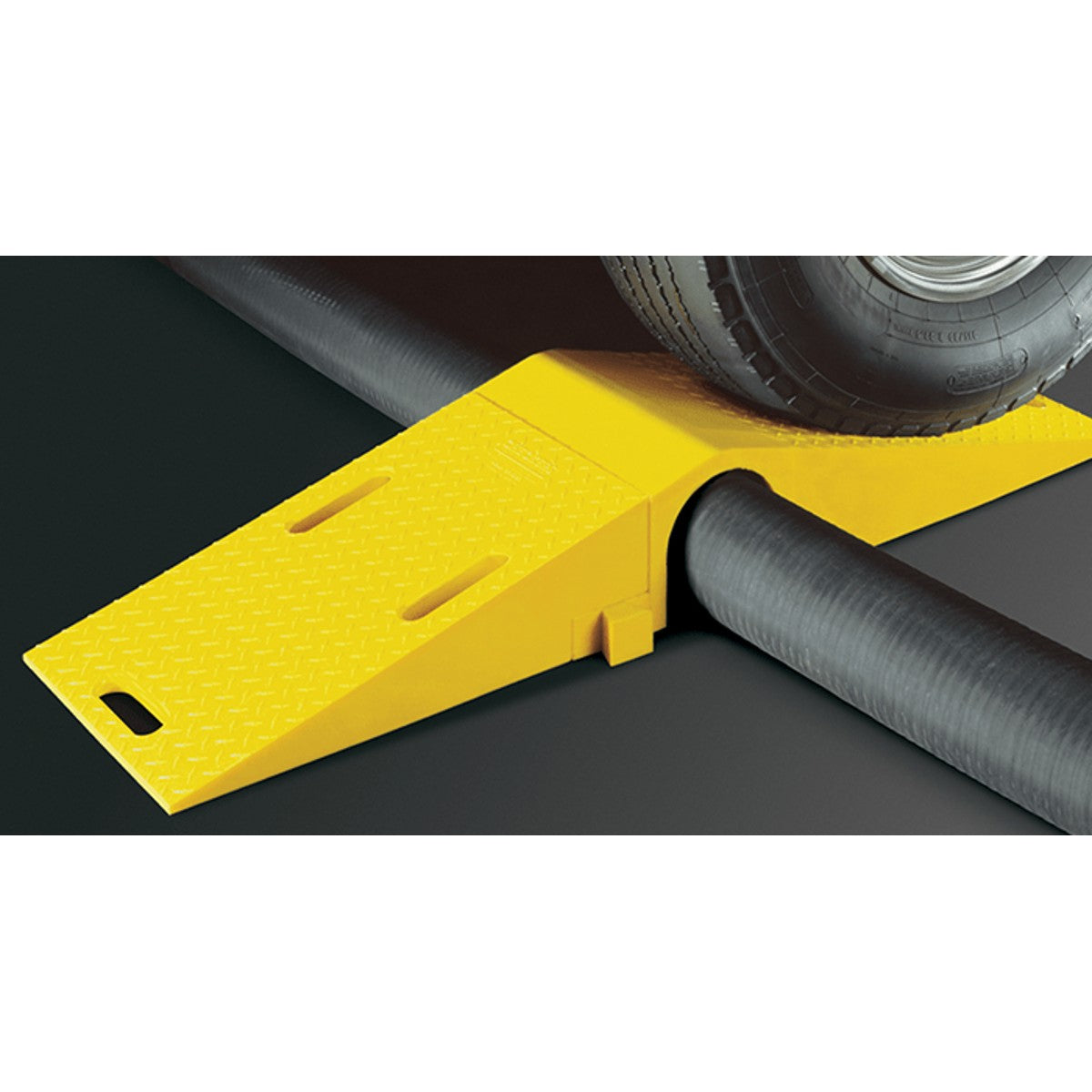

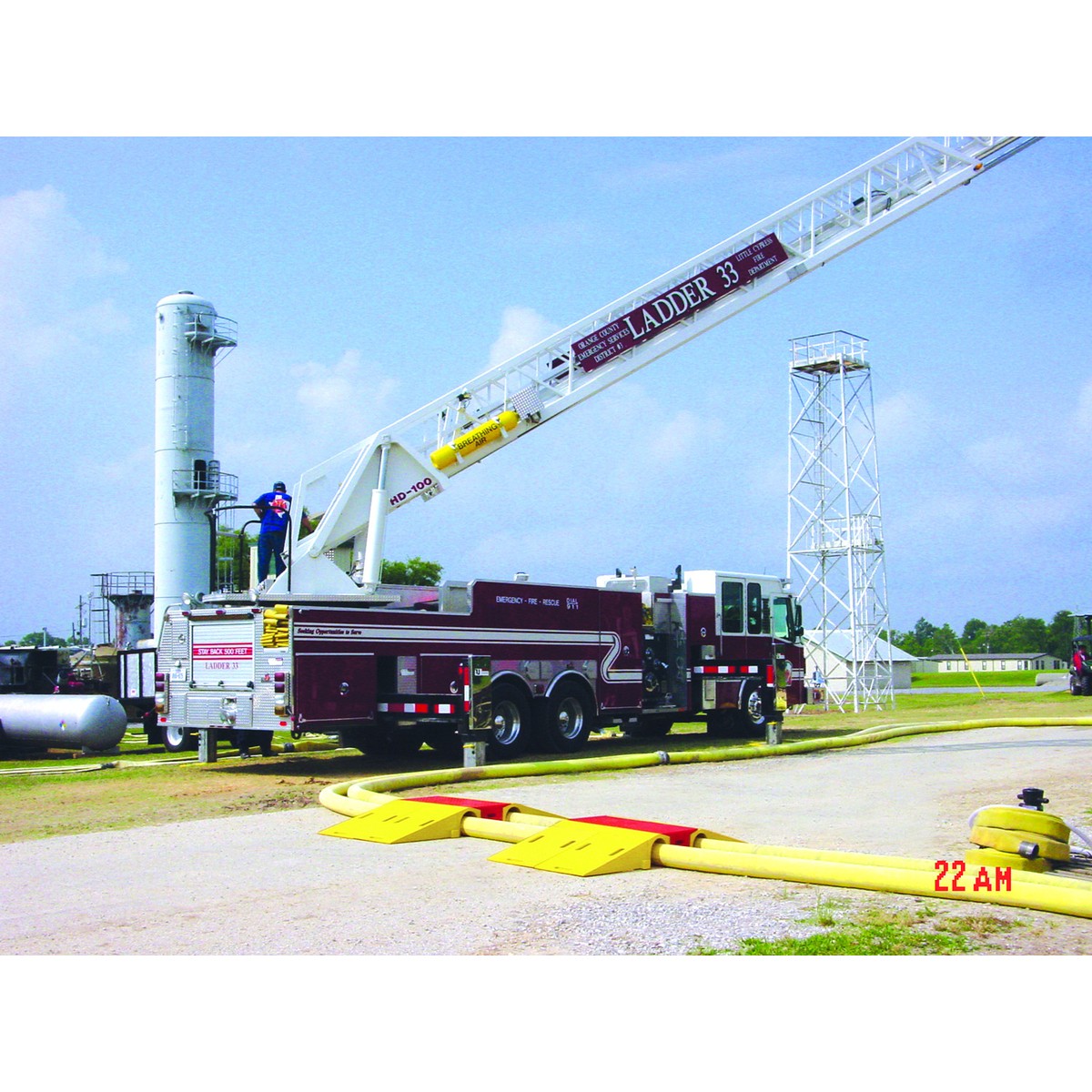

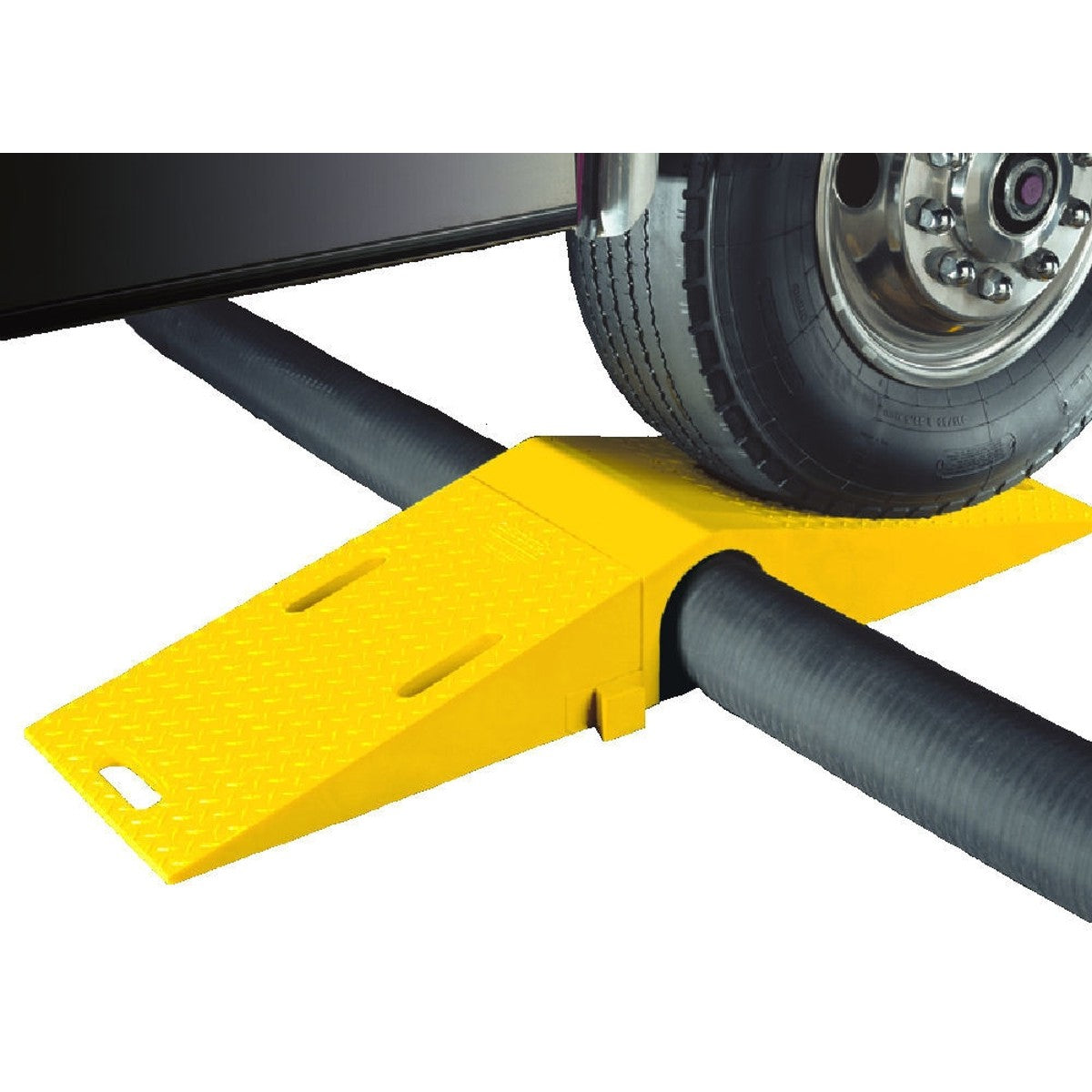

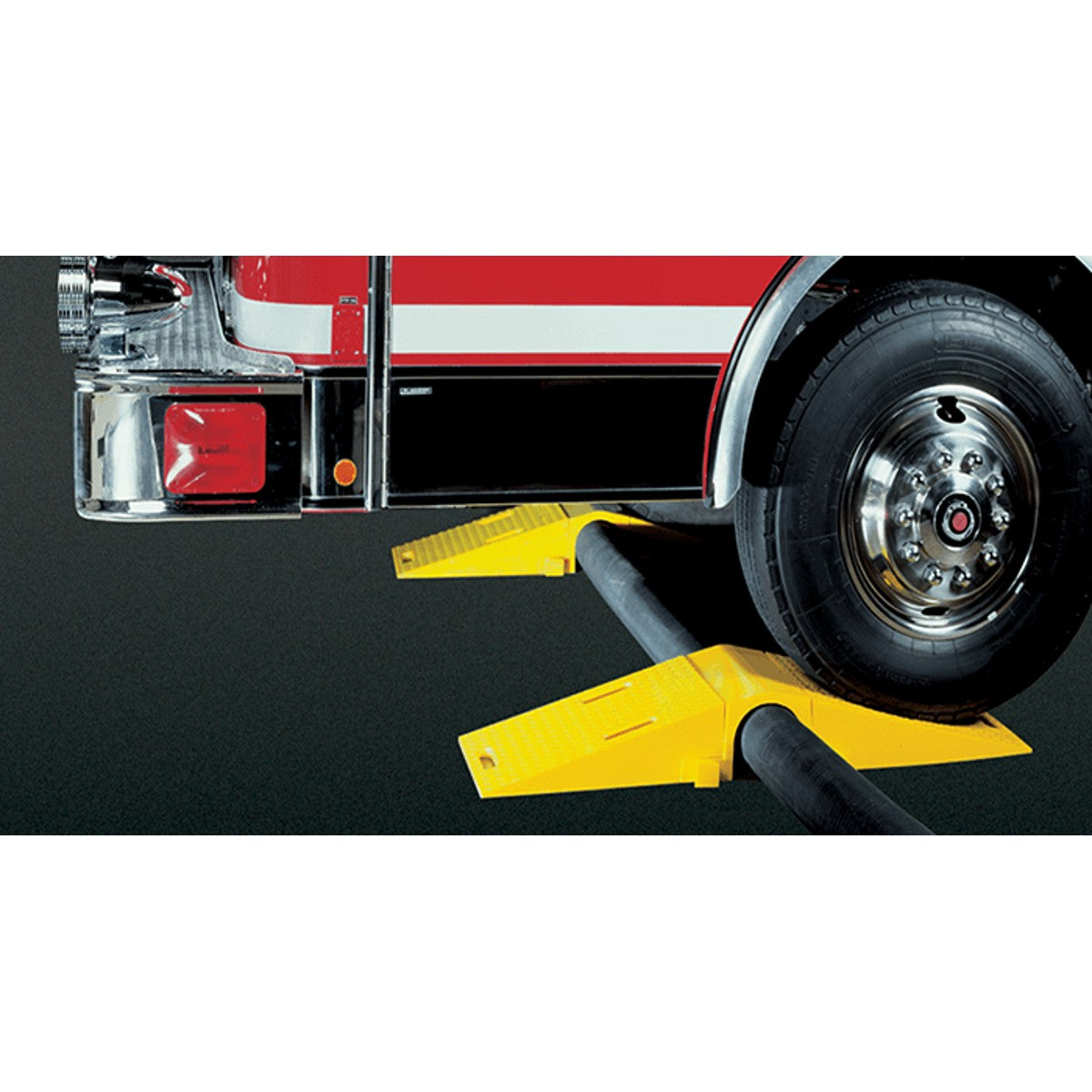

Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 3" in diameter.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
Additional Specs
| Color: | Yellow |
| Quantity Included: | 1 |
| Pallet Quantity: | 24 |
| Load Capacity Per Axle: | 23700 lbs |
| Load Capacity Per Tire: | 11850 |
| Length (Inches): | 27 |
| Width (Inches): | 17.5 |
| Height (Inches): | 3.88 |
| Max Cable Outside Diameter (Inches): | 3 |
| Number of Channels: | 1-Channel |
| Bridge Length (Inches): | 34.75 |
| Bridge Width (Inches): | 16 |
| Bridge Height (Inches): | 3.88 |
| Tunnel Diameter: | 3 |
| Tunnel Top Length (Inches): | 5.38 |
| Tunnel Base Length (Inches): | 13.25 |
| Ramp Top Length (Inches): | 14.75 |
| Ramp Base Length (Inches): | 10.75 |
| System Weight: | 32 |
