Use self-draining showers in hot climates to prevent the risk of shock and scalding from standing water overheated by solar radiation. Self-draining valve is situated directly above the water inlet and bleed pipe is fitted above this so hot water drains into the ground. The standpipe only fills with water when the shower is activated and drains once again when valve is closed, preventing stagnant water in the standpipe overheating and removing the risk of further injury to the operator.
The system features specially designed, high-performance quarter-turn ball valves made of 316L stainless steel to endure the harshest environments and site conditions. Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Durable, coated stainless steel shower pull handle with nylon valve connection is easy to grip and activate for immediate water drenching.
The shower includes a removable, self-draining overhead nozzle designed for high flow rates that meet or exceed ANSI standards. Made of durable nylon material, the nozzle offers optimal spray distribution for user protection. Unlike shower rose designs, this compact nozzle reduces the potential for insect nesting and eliminates high replacement costs associated with cracked or dented plastic spray heads.
Open ABS plastic bowl eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face. Features twin spray nozzles with dust covers that pop-off when eye wash is activated via the push plate. Easy-to-reach flow regulator valve adjusts to suit the severity of the accident.

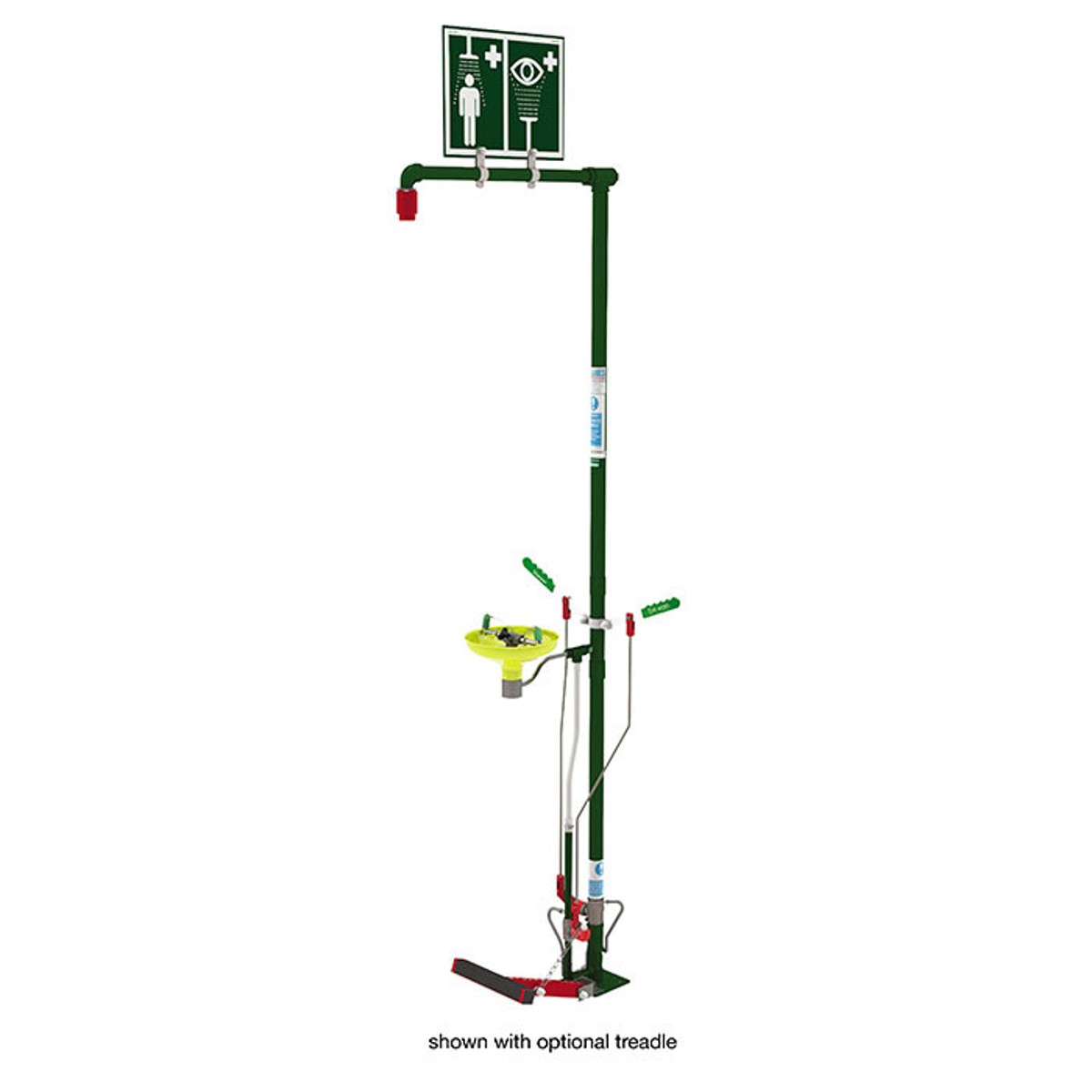

Solid construction using galvanized mild steel pipework. Add optional foot treadle for a secondary means of eyewash activation. Includes an inspection record tag for recording service and test history. Some assembly may be required.
Additional Specs
| Net Weight, lbs: | 35.3 |
| Net Weight, kg: | 16 |
| Dimensions, Exterior: | 101.7" H x 25.8" W x 29.5" D |
| Dimensions, Exterior: | 2584mm H x 654mm W x 654mm D |
| Height Without Sign, inches: | 89.2 |
| Height Without Sign, mm: | 2265 |
| UL Classified to ANSI Z358.1-2014: | Yes |
| Water Inlet Size NPT: | 1-1/4 in (F) |
| Minimum Operating Pressure: | 2 bar g, 29 PSI |
| Maximum Operating Pressure: | 6 bar g, 87 PSI |
| Water Flow Shower/Body Liters/min: | 76 |
| Water Flow Shower/Body US Gal/min: | 20 |
| Water Flow Eye/Face Liters/min: | 11.4 |
| Water Flow Eye/Face US Gal/min: | 3 |
| Material Specifications: | Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material: | 316L Stainless |
| Eye/Face Wash Bowl Material: | ABS Plastic |
| Mounting Type: | Floor |
| Pipework Material: | Galvanized Steel |
| Activation Method: | Shower: Hand lever, Eye/Face wash: Hand lever |
| Eye/Face Wash Bowl Interior Dimensions: | 9.75" W x 9.75" D |
| : | 248mm W x 248mm D |
| Minimum Ambient Temperature, °F: | 41 |
| Minimum Ambient Temperature, °C: | 5 |
| Maximum Ambient Temperature, °F: | 113 |
| Maximum Ambient Temperature, °C: | 45 |
