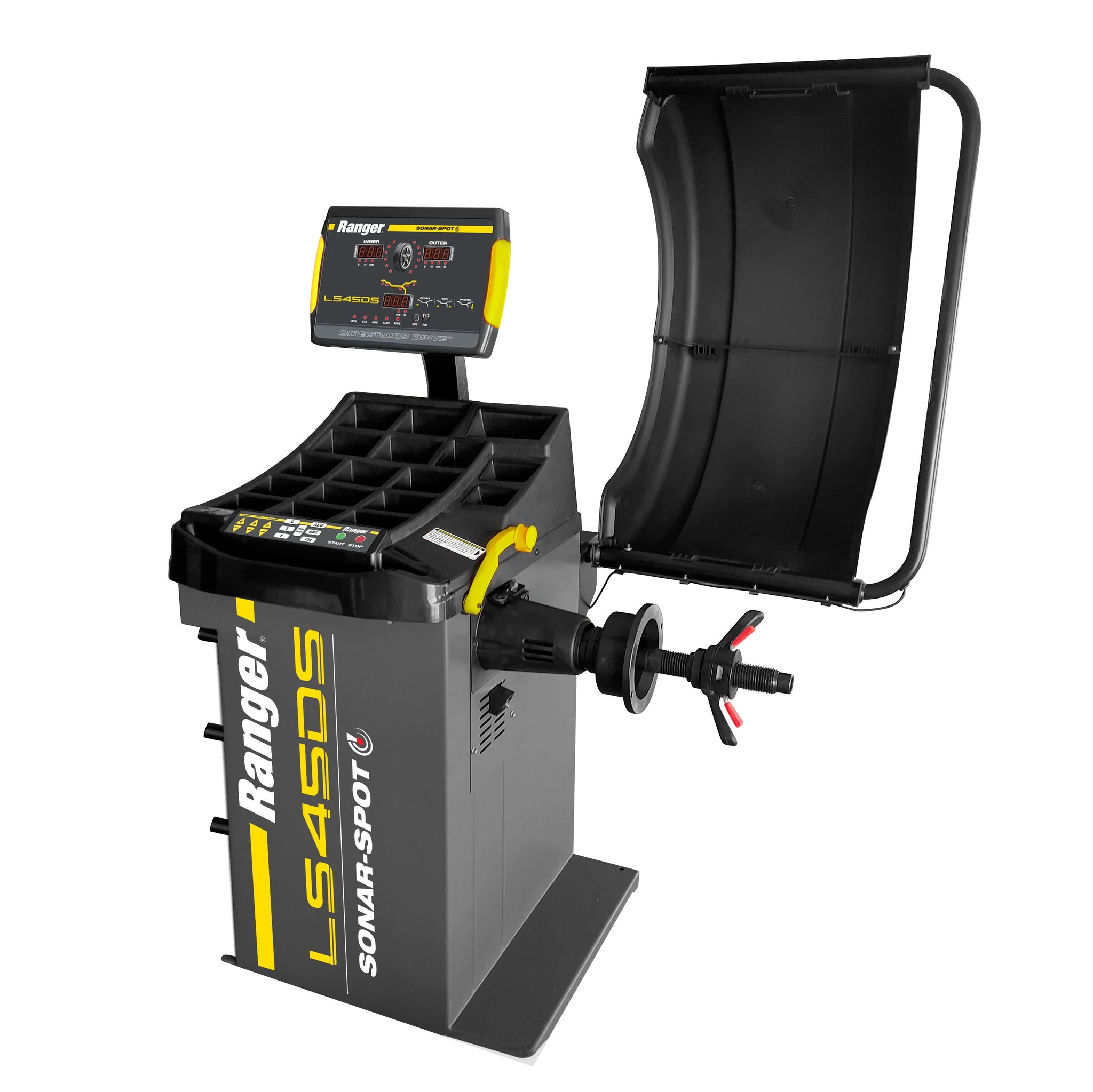

Ranger LS45DS Sonar 3D Laser-Spot Wheel Balancer (5140177)

Laser-Guided Wheel Balancing for Precision Shops

The Ranger LS45DS Sonar 3D Laser-Spot Wheel Balancer is built for shops that want more automation, less manual measuring, and clearer technician guidance during wheel balancing. It combines 3D Auto Data Entry, sonar wheel measurement, and Laser-Spot weight placement technology to help reduce guesswork, improve accuracy, and cut down on customer comebacks caused by improper weight placement.

Compared to simpler wheel balancers, the LS45DS is the premium accuracy play for busy tire shops, dealerships, performance garages, and service centers that handle a steady mix of steel wheels, aluminum alloys, hidden-weight applications, and modern wheel designs. Mount the wheel, choose the mode, close the hood, and let the machine help guide the process with the kind of precision that keeps the line moving.

3D Auto Data Entry with Sonar Measurement

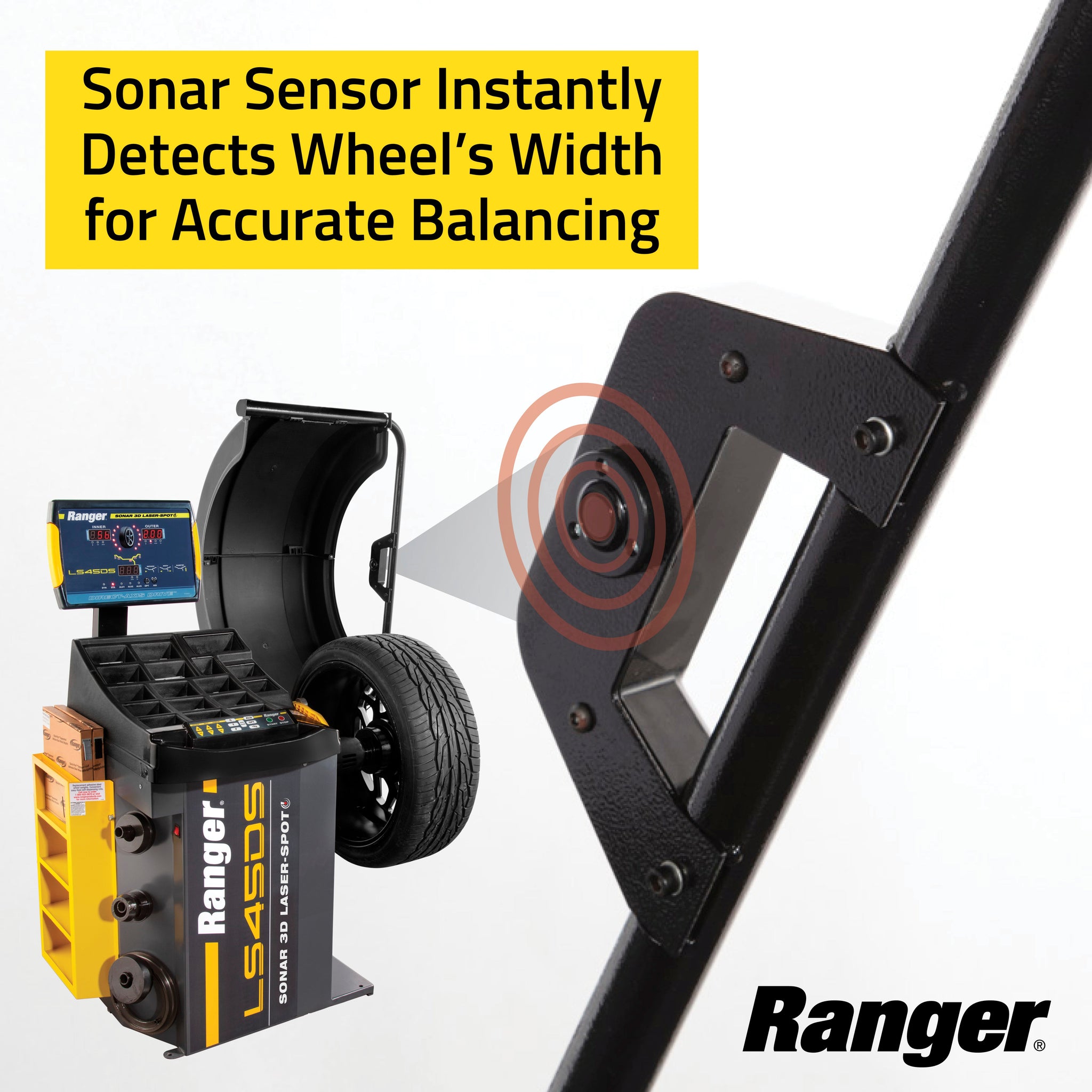

The LS45DS uses 3D Auto Data Entry to automatically detect wheel diameter, width, and offset using built-in sonar technology. That means technicians do not have to rely as heavily on manual wheel measurements, helping reduce setup errors and improve repeatability from one operator to the next.

This automatic measurement system is especially valuable in high-volume shops where small mistakes add up quickly. By capturing key wheel parameters in seconds, the LS45DS helps technicians move from mounting to balancing faster while maintaining the accuracy needed for modern tire and wheel service.

Laser-Spot Guidance for Stick-On and Clip-On Weights

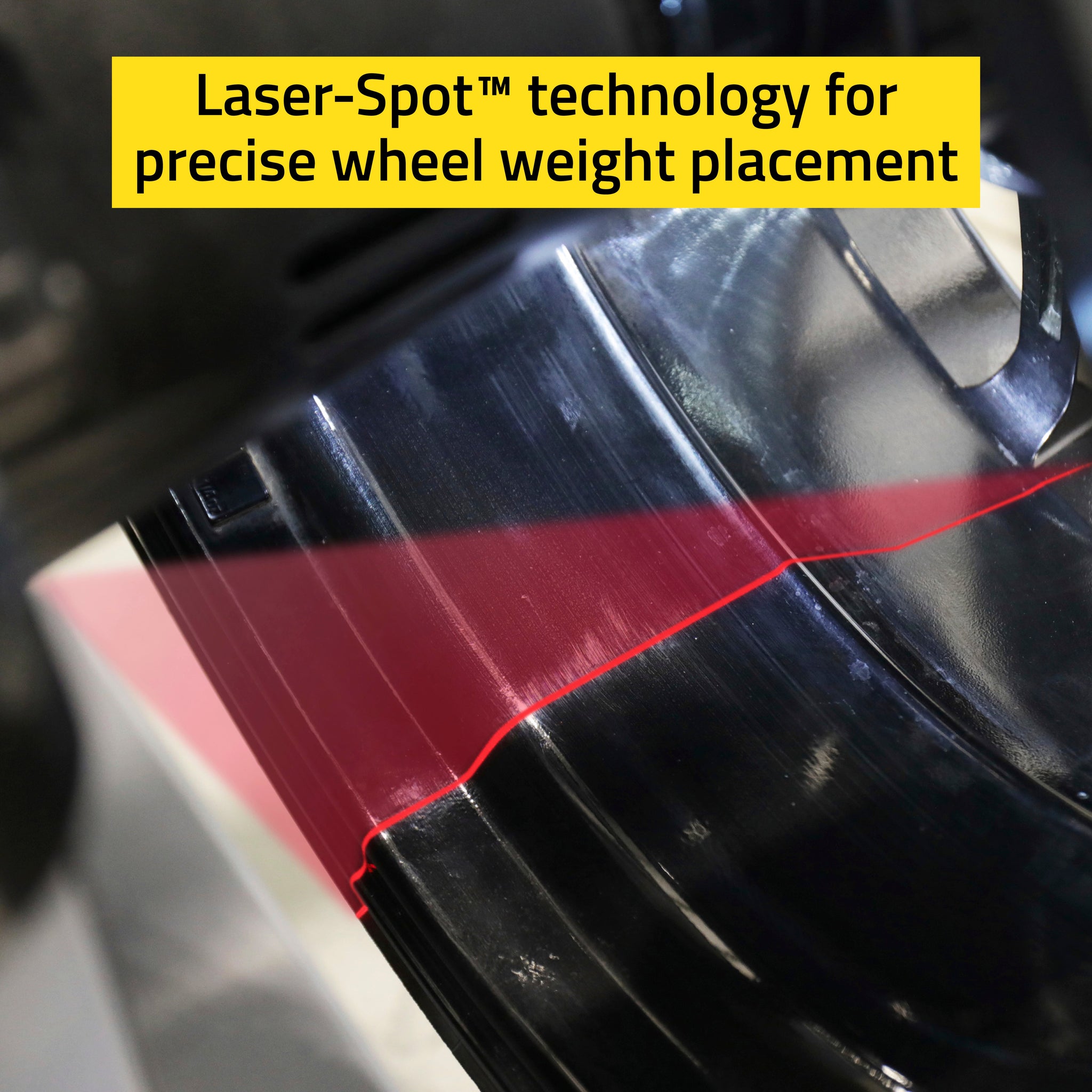

Ranger Laser-Spot Technology gives technicians a clear visual reference for weight placement. For stick-on weights, the laser pinpoints the 6 o'clock position to simplify adhesive weight installation. For clip-on weights, the system shifts to guide topside placement at 12 o'clock, making the change between weight types feel more intuitive.

This guided placement helps reduce second-guessing during static, dynamic, aluminum, and hidden-weight balancing. The side-position brake holds the wheel at the proper 12 o'clock or 6 o'clock location, while tiered indicators help identify split-weight or behind-the-spoke positions for cleaner, more professional results.

Built for Versatility, Speed, and Technician Confidence

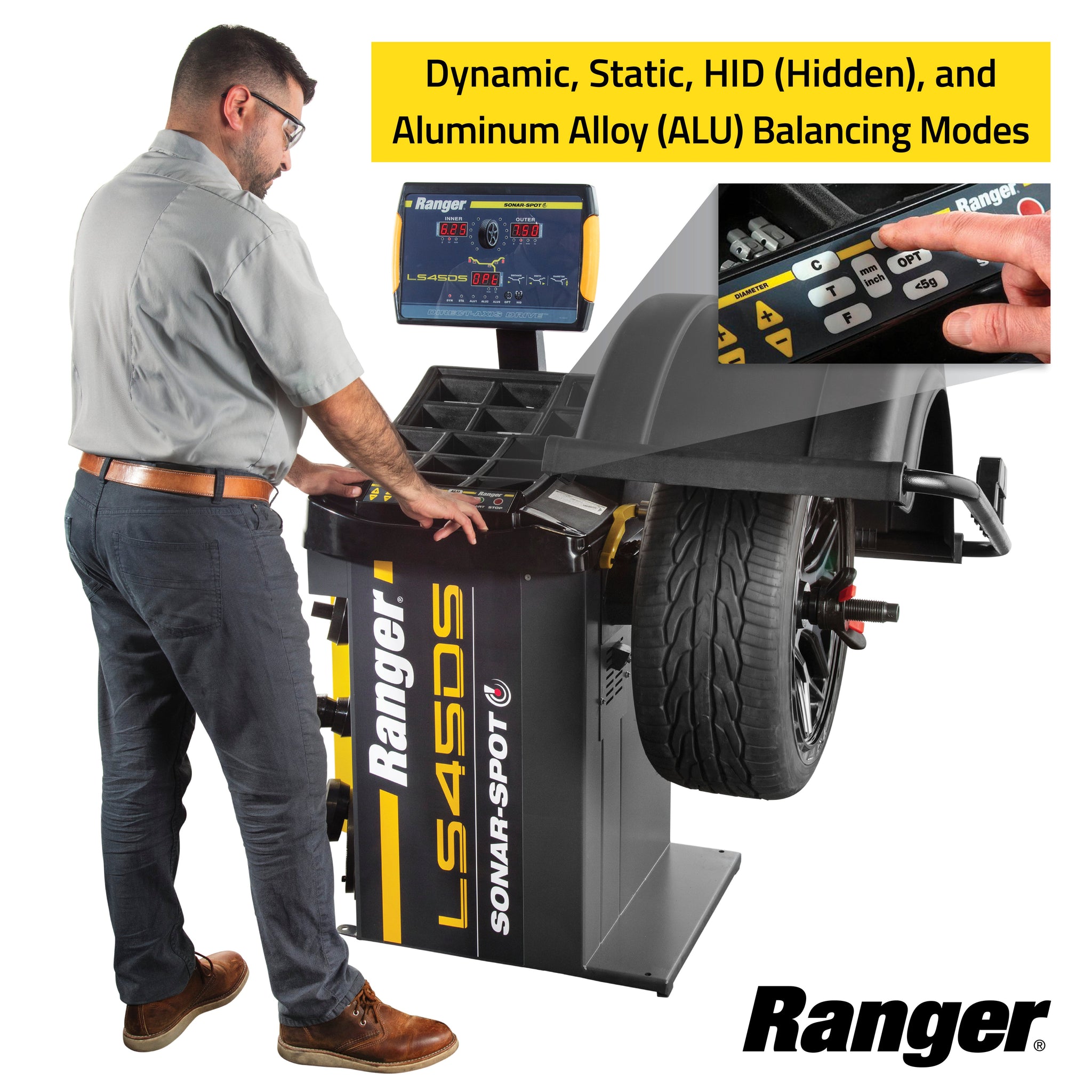

The LS45DS supports Dynamic, Static, HID hidden, and Aluminum Alloy balancing modes, giving shops the flexibility to handle traditional steel wheels, modern alloys, hidden adhesive weights, and more specialized correction requirements. Low-RPM operation, a rapid 7-second cycle time, automatic braking, self-calibration, and manual or automatic hood-start operation help keep wheel balancing fast and consistent.

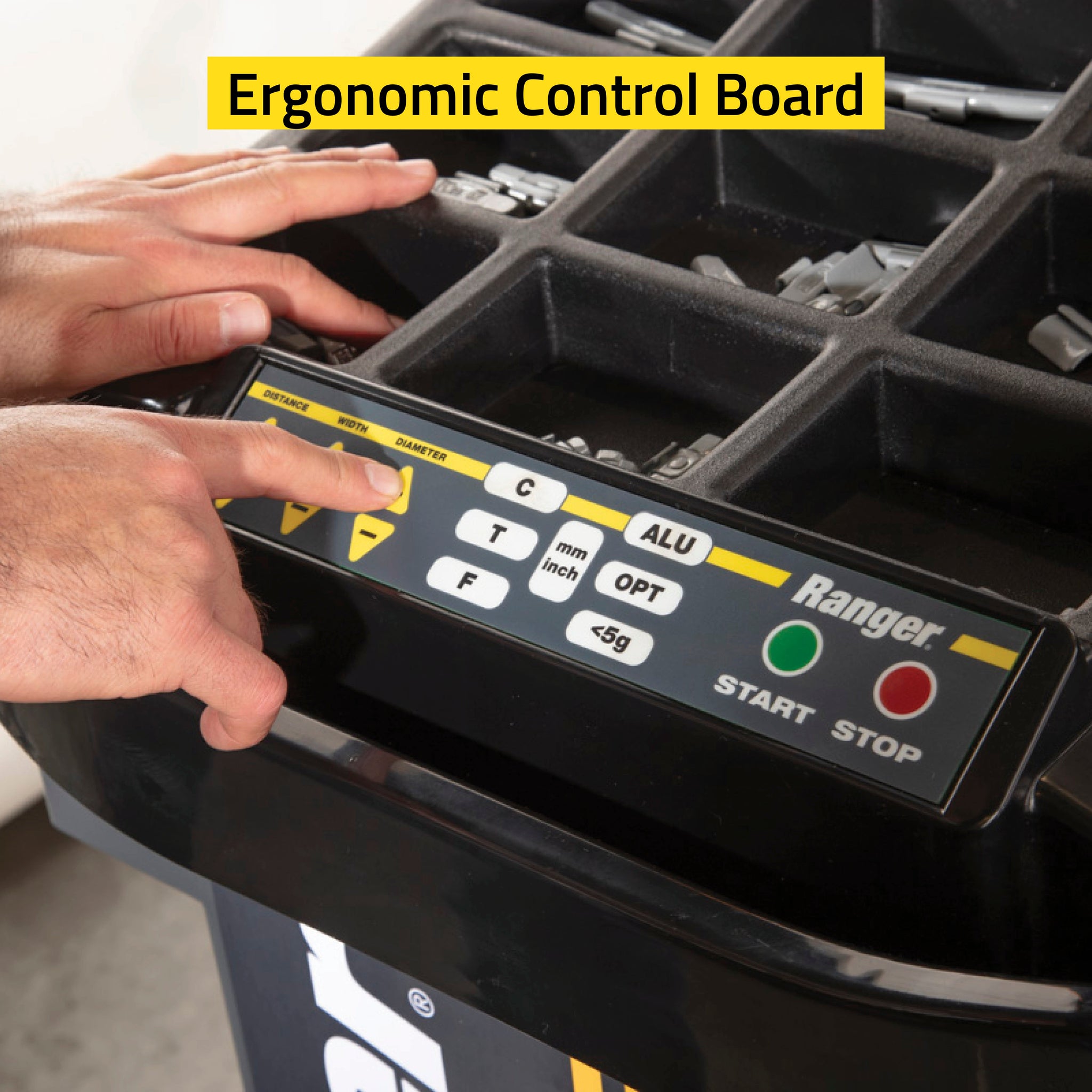

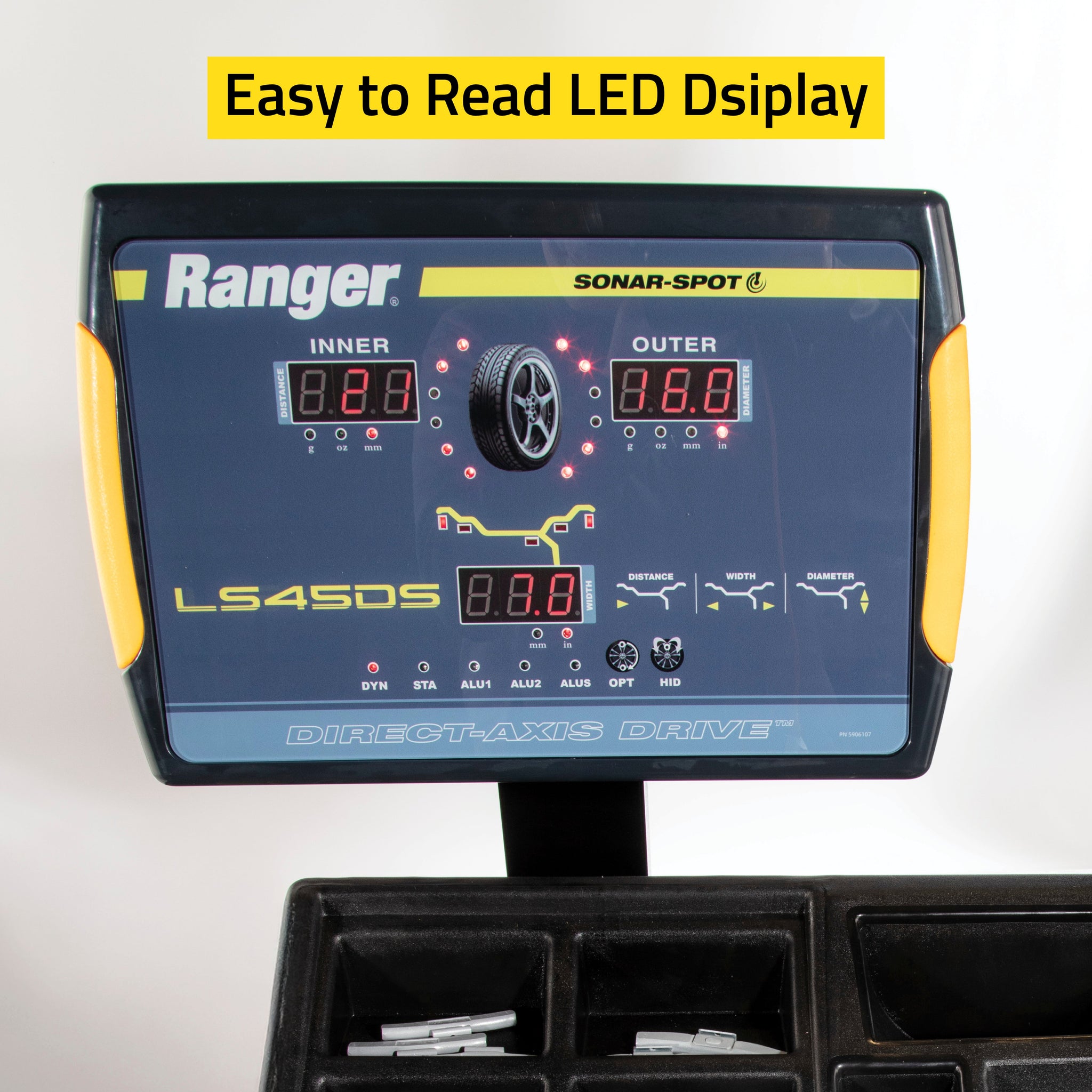

A precision-machined hardened-steel 40 mm shaft, quick-release hub nut, open-side hood design, ergonomic control board, LED display, high-volume top tray, built-in weight dispenser shelf, and side cone storage pegs round out a machine built for professional workflow. For shops that want balancing technology that actively helps the operator, the LS45DS is the clear step up.

3D Auto Data Entry

Built-in sonar detects wheel diameter, width, and offset in seconds. This helps reduce manual measuring errors and speeds up setup for busy technicians.

Laser-Spot Placement

Laser guidance pinpoints adhesive weight placement at 6 o'clock and clip-on weight placement at 12 o'clock. It gives operators a clear visual target instead of guesswork.

Hidden Weight Support

Dynamic, Static, HID hidden, and ALU balancing modes help shops handle modern alloy wheels and behind-the-spoke weight placement. Cleaner wheels, cleaner results.

7-Second Cycle Time

Rapid balancing cycles help keep wheel service moving. The LS45DS is built for shops that need accuracy without slowing down the bay.

Open-Side Hood Design

The open-side hood allows broader coverage of tire shapes and sizes. That gives technicians more working flexibility across a wider range of wheel assemblies.

40 mm Hardened Shaft

A precision-machined, hardened-steel 40 mm shaft supports repeatable mounting and long-term durability. It is a strong platform for professional balancing accuracy.

Recommended Add-ons

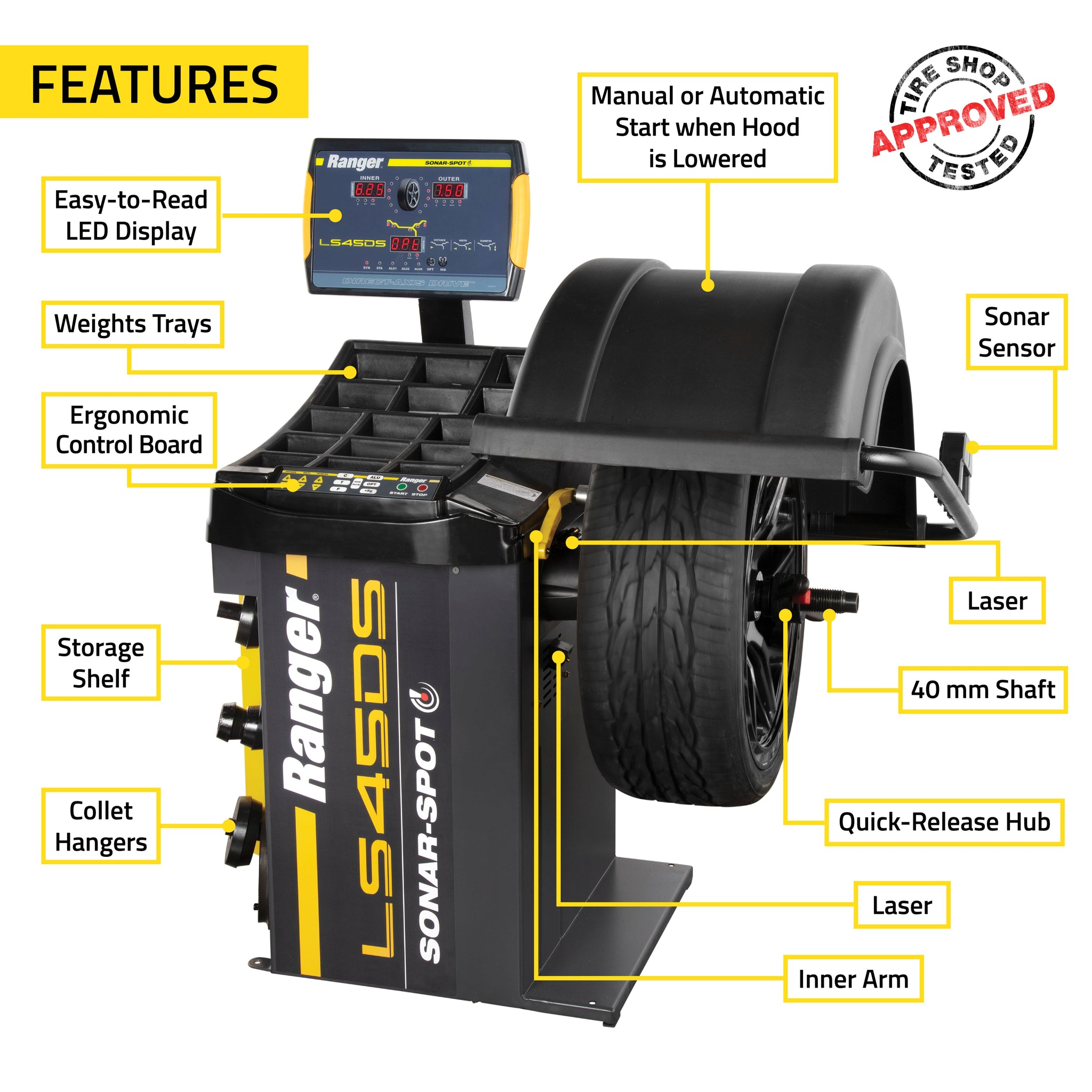

Features

• 3D Auto Data Entry for wheel parameter settings
• Built-in sonar measurement for diameter, width, and offset
• Laser-Spot technology for precise wheel weight placement
• Dynamic, Static, Aluminum, and HID hidden balancing modes
• Side-position brake holds wheels at 12 o'clock or 6 o'clock
• Open-side hood design for broader tire and wheel coverage
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered indicators for split-weight and hidden behind-the-spoke placement
• Manual or automatic start when hood is lowered
• High-volume top tray and built-in adhesive weight dispenser shelf
• Precision-machined, hardened-steel 40 mm shaft
