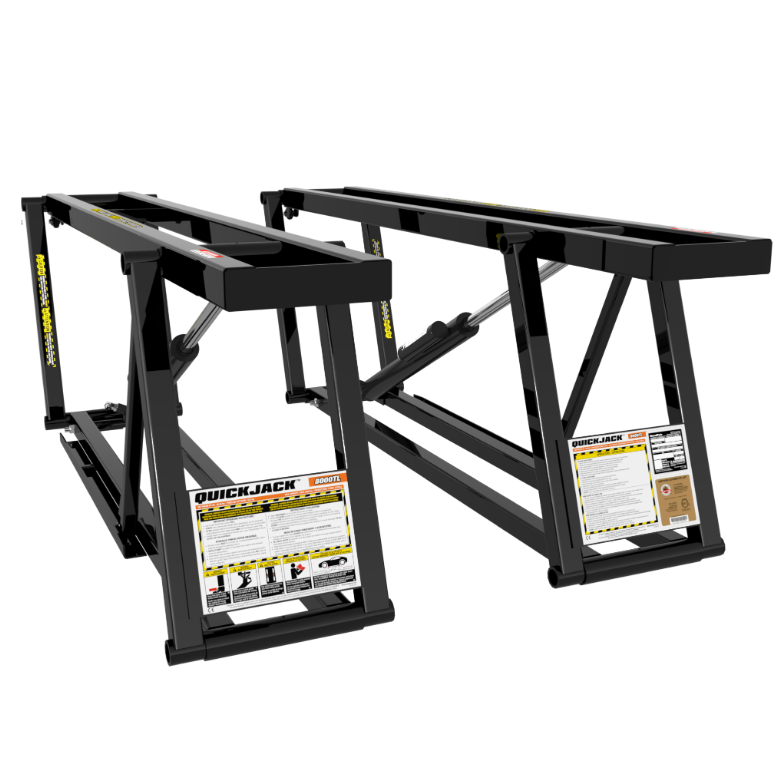

8000TL Portable Truck and SUV Lift System

The QuickJack 8000TL is the most powerful standard-length portable lift in the lineup, capable of raising up to 8,000 lbs. With a 24.25-inch lift height and a reinforced frame design, it’s purpose-built for safely lifting light-duty trucks, SUVs, and passenger vehicles with higher curb weights.

Add the optional Truck & SUV Adapter Kit to reach an impressive 27-inch lifting height—perfect for vehicles with extra ground clearance.

What’s Improved on the New TL Models vs. Previous TL Models?

The 8000TL offers a 1,000-lb capacity increase over the 7000TL and includes major upgrades to the hydraulic system and structural components.

Despite the extra power, it retains a low-profile 3.5-inch collapsed height for easy storage and use in compact spaces.

• Minimum lift point spread: 37 inches
• Frame length: 70.75 inches

Can I Purchase Frames Separately?

Yes. The 8000TL left and right frames are available for individual purchase. If you already own a compatible power unit, you can upgrade without replacing your entire system.

Just follow the proper bleeding procedure to ensure optimal performance.

Note: Frame-only kits do not include hoses, fittings, or power units.

Warranty Coverage

All QuickJack TL models include a 1-year warranty on structure and operating components.
Optional 2-year extended coverage is also available.

Key Features

Automatic Safety Locks

Dual-position automatic safety locks engage securely as the frames rise, locking at both mid-rise and full-rise heights. To release, simply flip the lock bar for a safe, controlled descent—no pins or guesswork required.

Heavy-Duty Lifting Power

With an 8,000-lb capacity and 24.25-inch lift height, the 8000TL is built to handle larger vehicles, including SUVs and light-duty trucks—without added bulk.

Upgraded Hydraulic System

The redesigned power unit features:

• Pressure-compensated flow divider
• Independent shut-off solenoids

This ensures both frames lift in perfect unison and stay balanced—even if stopped mid-cycle.

Stronger Frame, Smarter Design

• Thicker cross members
• Improved welds
• Reinforced pivot points

These upgrades reduce flex, improve alignment, and enhance long-term durability.

One-Handed Pendant Control

Raise and lower the lift effortlessly with a pendant-style controller—no manual cranking required.

Factory Preassembled Hydraulics

Arrives fully preassembled for faster setup and guaranteed performance. Just plug in and start lifting.

Portable and Easy to Store

• Collapses to 3.5 inches
• Integrated urethane wheels for easy mobility

Perfect for garages and shops with limited space.

Accessory Compatibility

Compatible with a wide range of QuickJack accessories, including:

• SUV/truck adapters
• Pinch-weld blocks
• Frame extensions

What’s Included

• 1 × 8000TL-110V Power Unit
• Left and Right Frame Assemblies
• 1 × Short Hydraulic Hose
• 2 × Long Hydraulic Hoses
• 1 × Frame-Positioning Handle
• 4 × Medium Rubber Lift Blocks
• 4 × Tall Rubber Lift Blocks
