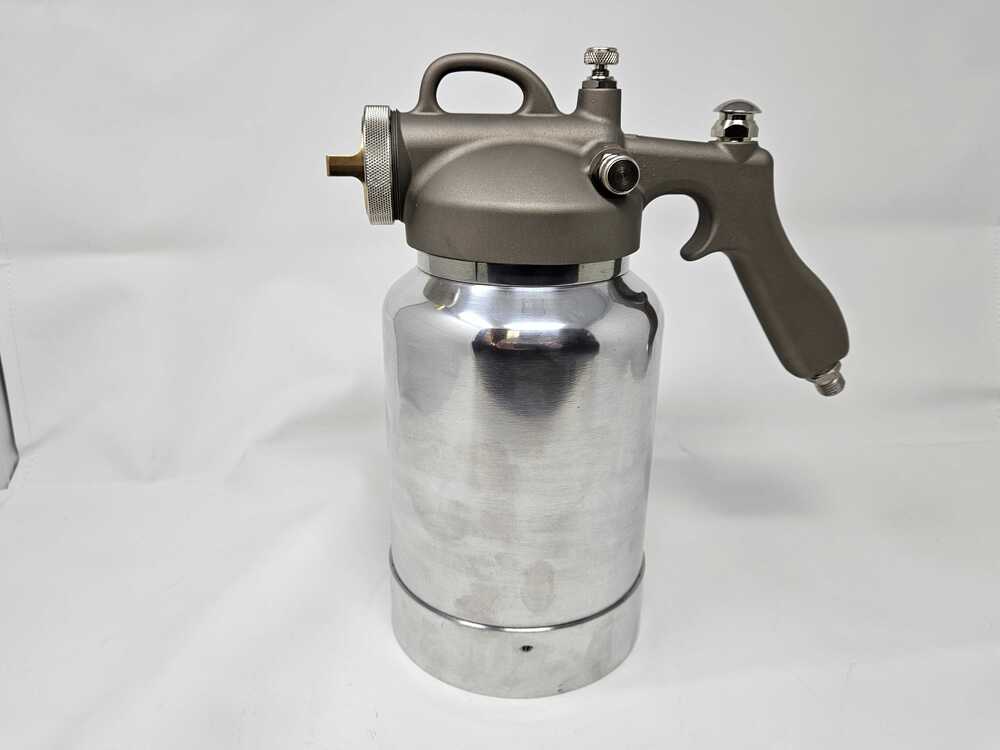

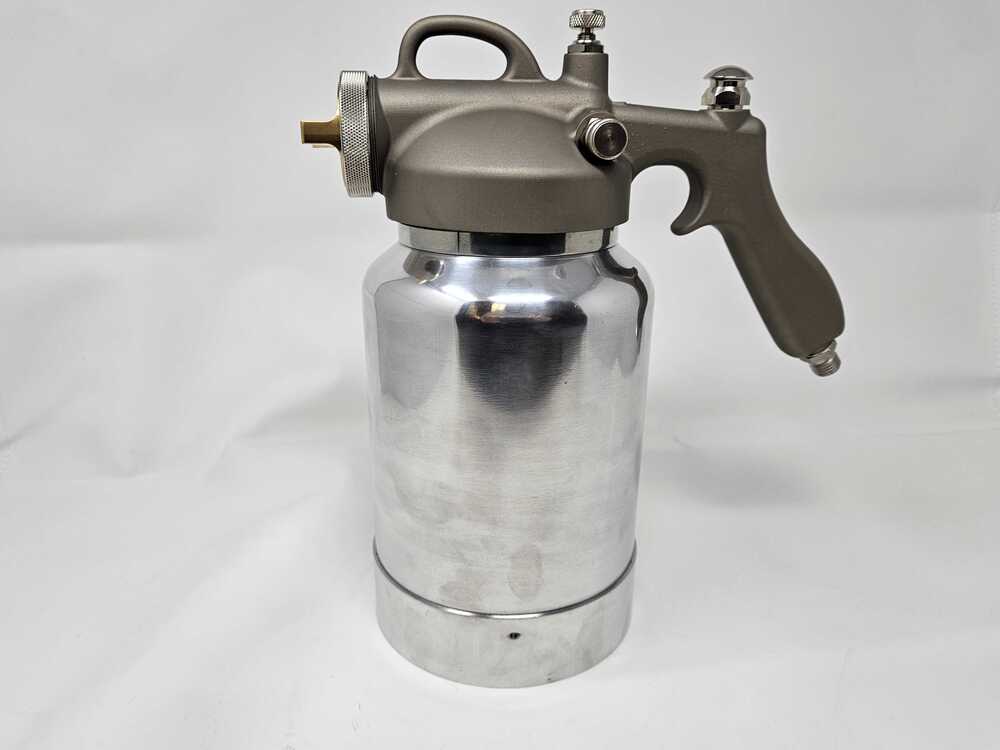

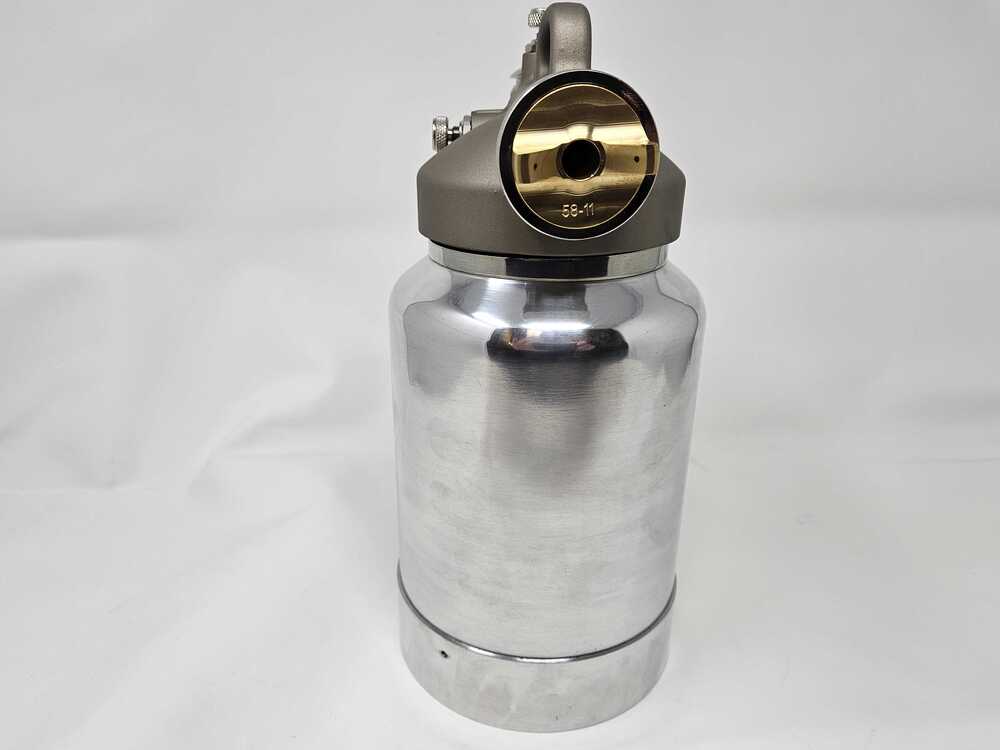

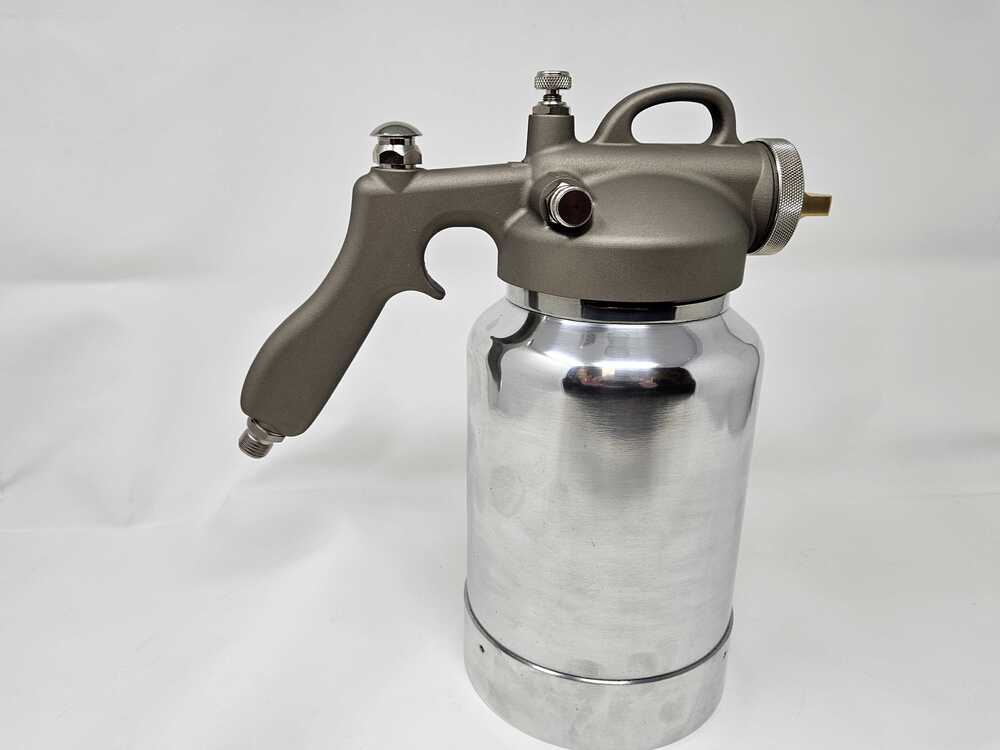

Gun is equipped with three (3) controls. Each is marked as follows:
- Cup: Controls amount of air blowing into cup to agitate flock.
- Jet: Controls amount of air blowing through nozzle to atomize flock.
- Fan: Controls amount of air blowing through ears of nozzle to shape spray pattern from round to fan.
When starting, have all three controls closed, then:
- Open “Cup” control to establish flow of flock.
- Open “Jet” control to atomize flock.
- Open “Fan” control to establish desired spray pattern.
Increasing air pressure increases amount of flock being sprayed.
Includes:
20-388 | NO. 10-32 HEX NUT | 1
84-311 | CONNECTION | 1
84-326 | NUT | 1
84-327 | STEM | 1
84-328 | WASHER | 1
84-330 | SPRING | 1
84-331 | PIN | 1
84-332 | FOLLOWER | 1
84-333 | SIDE PORT CONTROL ASSEMBLY | 3
84-738 | PACKING | 1
67-100 | SPRING | 1
89-1 | AIR VALVE ASSEMBLY | 1
89-2 | BODY | 1
89-3 | RETAINER | 1
89-4 | DISC | 1
89-6 | STEM | 1
89-11 | AIR NOZZLE | 1
89-12 | FLUID NOZZLE | 1
89-13 | RETAINER RING | 1
89-30 | TUBE | 1
89-114 | FOLLOWER | 1
89-130 | BODY | 1
89-131 | GASKET | 1
89-4 | CUP (2 qt. size) | 1
82-13 | PACKING | 1
