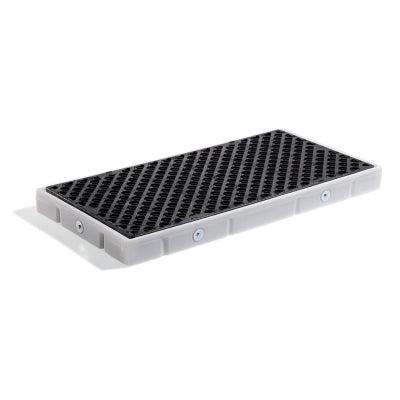

Create a custom storage area for extra-heavy loads with the sump capacity you need to comply with regs.
- Heavy-duty deck withstands extra-heavy loads; ideal for storing or servicing heavy equipment that is prone to leaks

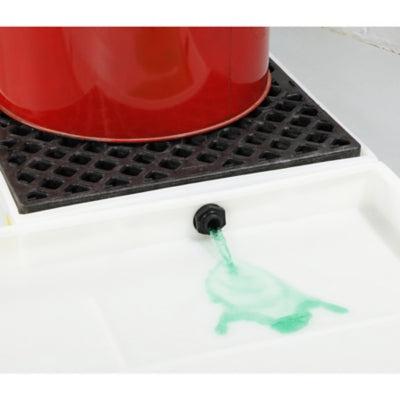

- Patented "flow-through" sump design lets liquid pass freely from one sump to another to help you comply with containment regulations

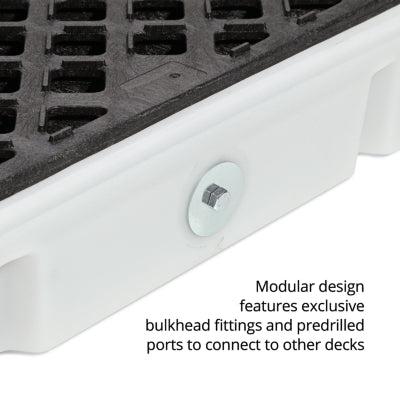

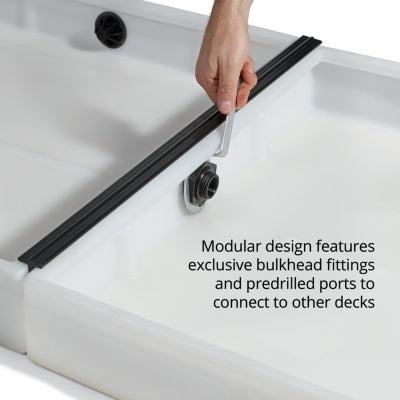

- Modular design features exclusive bulkhead fittings and predrilled ports to connect to other decks; ready to use as soon as they arrive
- Mix and match the sections you need to fit your space and help meet sump capacity requirements

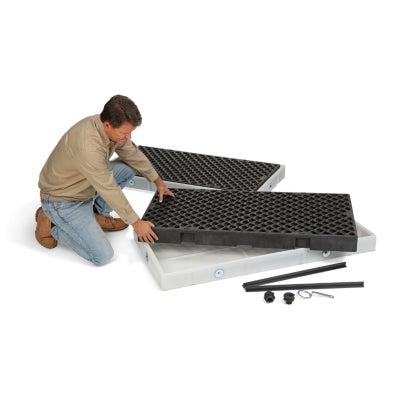

- Special tools and hardware to connect sections is included with each system

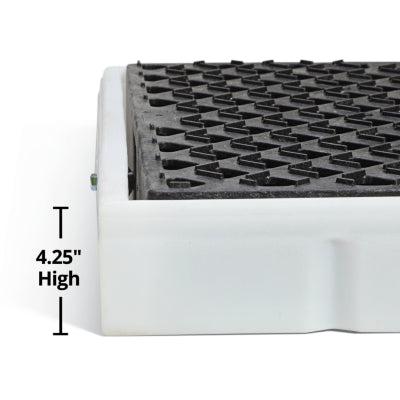

- Super-low 4.25" height is easy to load or unload; pumps and funnels are easy to access
- Catches leaks, drips and spills to help keep your storage areas clean and safe
- Low-density polyethylene (LDPE) construction resists UV rays, rust, corrosion and most chemicals

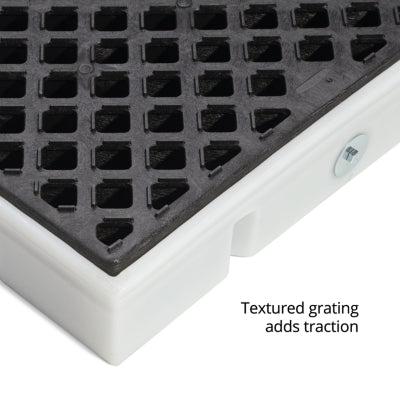

- Textured grating adds traction and lifts out for easy sump access
- We test all of our Containment Deck designs at max load for months to ensure they can handle full capacity at your facility
| Sump Capacity Range | 10 - 19.9 gal. |
| Dimensions | 27.25" W x 54.5" L x 4.25" H |
| Recycled Content | 58% Post-Industrial Recycled Polyethylene |
| Load Capacity UDL | 25000 lbs. |
| Sump Capacity | 18 gal. |
| Brand | PIG |
| Color | Black/White |
| Drain | No |
| Double-Stackable Unit | No |
| Grates | (1) 52" L x 26" W Grate |
| Fork Truck Access | No Fork Truck Access |

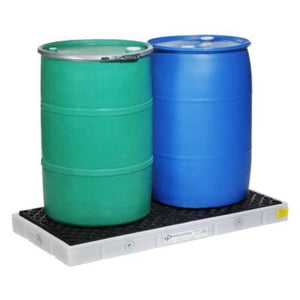

| Holds | (2) 55 gal. Poly or Steel Drums |
| Material | Poly |
| Use With Flammables | No |
| Sold as | 1 each |
| Weight | 56 lbs. |
| New Pig Patent | 5,562,047;Foreign Patents |
| NSN (National Stock Number) | 4235-01-443-6347 |
| # per Pallet | 12 |
| Composition |
Sump: Polyethylene (LDPE) w/ UV Inhibitor Grates: Polyethylene (HDPE) Bulkhead Fittings: Polypropylene Gaskets: EPDM & Polypropylene T-Strips: Polyethylene Wrench: Galvanized Steel |
| Includes |
1 - 2-drum Poly Spill Deck, Sump and Grate Only 1 - Hardware Kit (PAK477) |
| UNSPSC | 24101905 |
| Pigalog® Page Number | Page 377 |
