Pedestal Mount, Open Stainless Steel Bowl, Hughes Eye/Face Wash, Galvanized Pipe

Pedestal Mount, Open Stainless Steel Bowl, Hughes Eye/Face Wash, Galvanized Pipe

Regular price
$1,760.00

See Lower Price in Cart

Quantity must be 1 or more

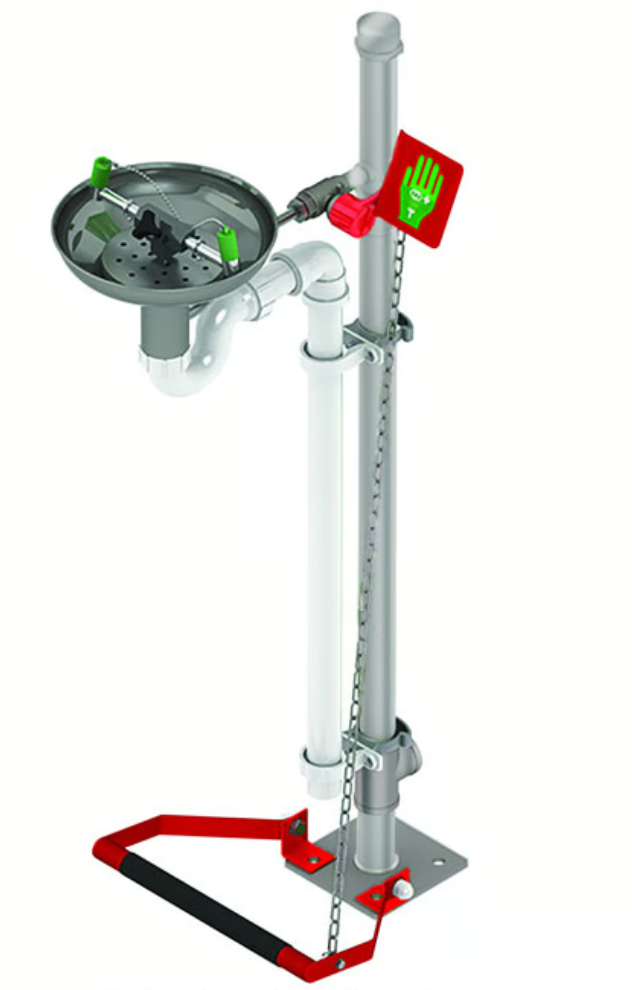

Pedestal-mounted, open stainless steel bowl eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls. Suitable for use in all applications not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Solid construction using galvanized mild steel pipework. Easy activation—highly visible red push plate with universal hand and eye wash sign. Includes an inspection record tag for recording service and test history. Add optional foot treadle for a secondary means of activation. Some assembly may be required.

  • Twin spray nozzles protected by dust covers that pop-off when eye wash is activated
  • Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
  • High-performance 316L SS quarter-turn ball valves endure the harshest environments and site conditions
  • Includes a separate universal eyewash sign for enhanced visibility,
  • Meets ANSI and EN 15154 standards and supports OSHA requirements

Specifications:

UPC 805042000052
Net Weight, lbs 22
Net Weight, kg 10
Dimensions, Exterior 45.5" H x 12.4" W x 21.2" D
1156mm H x 314mm W x 314mm D
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 1-1/4 in (F)
Minimum Operating Pressure 2 bar g, 29 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Material Specifications Eye/facewash diffusers: Chrome plated brass with stainless steel mesh.
Operating Valve Material 316L Stainless
Eye/Face Wash Bowl Material Stainless Steel
Mounting Type Pedestal
Pipework Material Galvanized Steel
Activation Method Push Plate
Eye/Face Wash Bowl Interior Dimensions 10.25" W x 10.25" D
260mm W x 260mm D
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35

;
