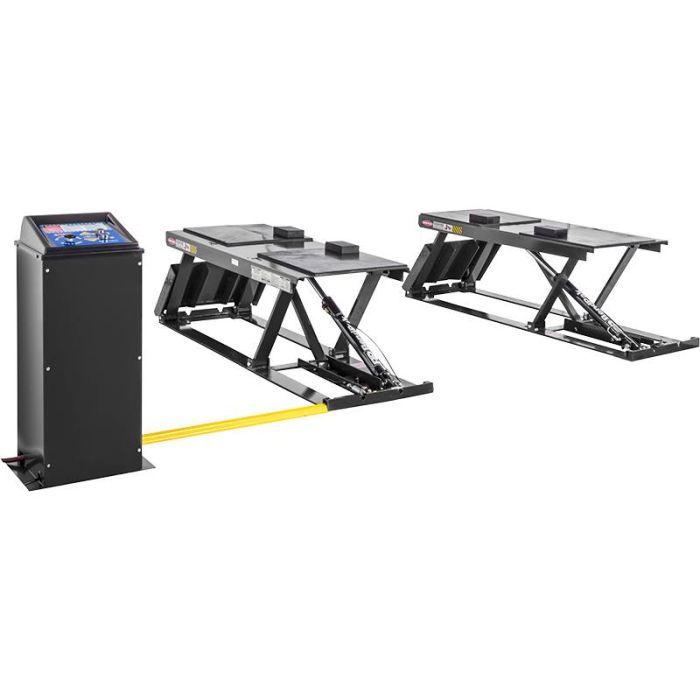

P-9000LTF 9,000-lb. Capacity  Low-Rise Lift  Open-Center  Pit-Style  Flush Mount

P-9000LTF 9,000-lb. Capacity Low-Rise Lift Open-Center Pit-Style Flush Mount

Regular price
$8,362.00

See Lower Price in Cart

Quantity must be 1 or more


Specifications P-9000LTF
  • 9,000-lb. lifting capacity
  • Reinforced parallel lifting arms to better support inboard loading
  • Reinforced upper lift platform to better support inboard loading
  • Dual-pump power unit with built in proportioning valve
  • Easily convert fast-lube pits into wheel service work bays
  • Mounts outside the pit rail without interfering with center work area
  • Model P-9000LTF flush-mount model provides recessed drive-over option
  • Heavy duty 1.5 HP electric-hydraulic power unit
  • Electronic push-button controls allow smooth, single-hand operation
  • Automatic multi-position safety locks with air release deliver safe, remote operation
  • Powder-coat finish
  • Durable rubber-topped pad surface and rubber lift blocks provide quick set-up
  • Enhanced adjustable (optional) lifting arms
Lifting capacity:
9,000 lbs. (4,082 kg)
Lifting Height:
24” (610 mm)
Lifting Height + Block:
27” (686 mm)
Overall Lift Platform Length:
58.5” (1,484 mm)
Overall Lift Platform Width:
24” (610 mm)
Overall Length:
74.4” (1,890 mm)
Lowered Height:
4” (102 mm)
Speed of rise:
55 seconds
Standard motor (***):
1.5 HP / 208-230 VAC / 60 Hz / 1 Ph
Shipping weight:
1,134-lbs. (514 kg)
Shipping dimensions:
77'' x 40'' x 24'' (1,943 mm x 1,016 mm x 609 mm)
