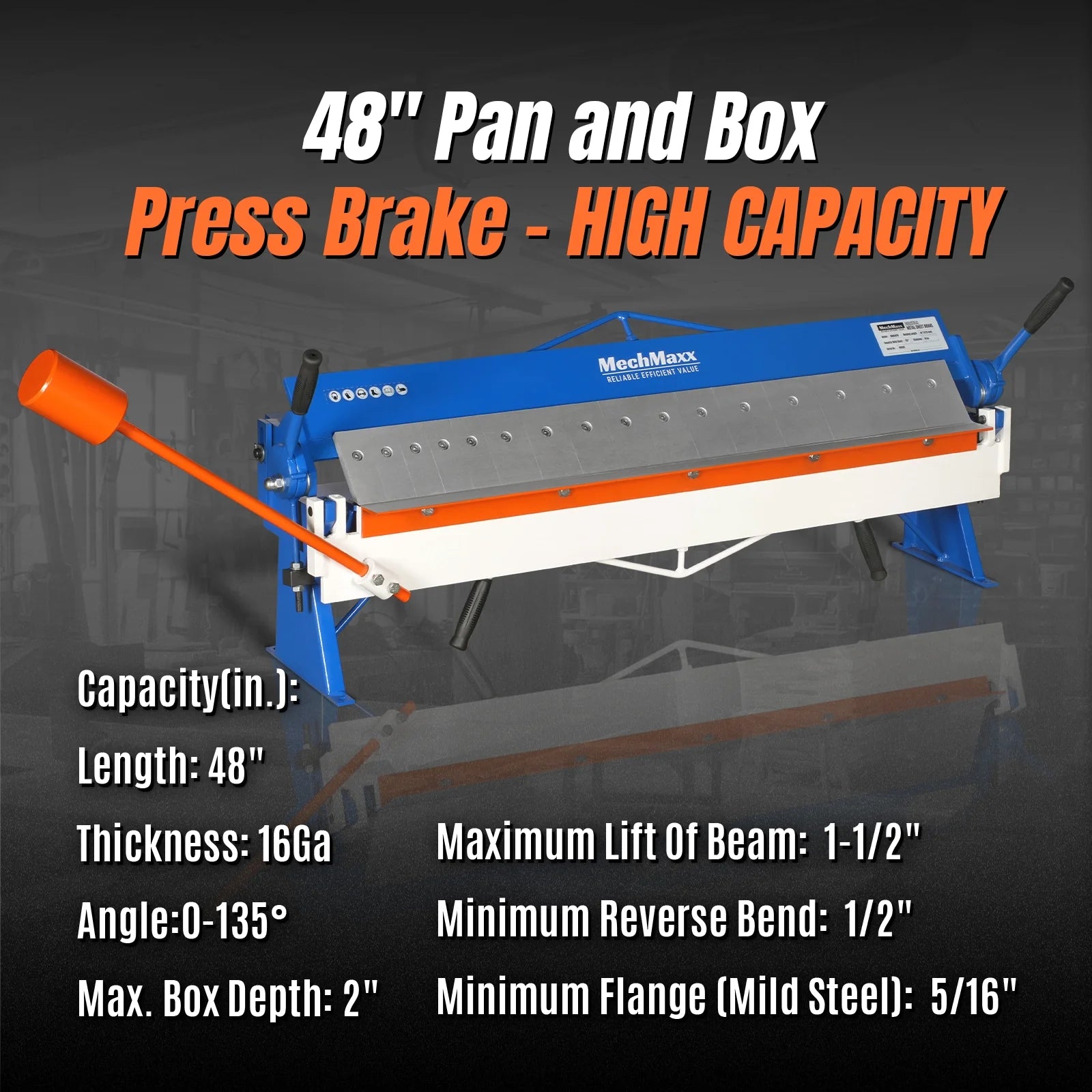

| Maximum Working Length | 48" |

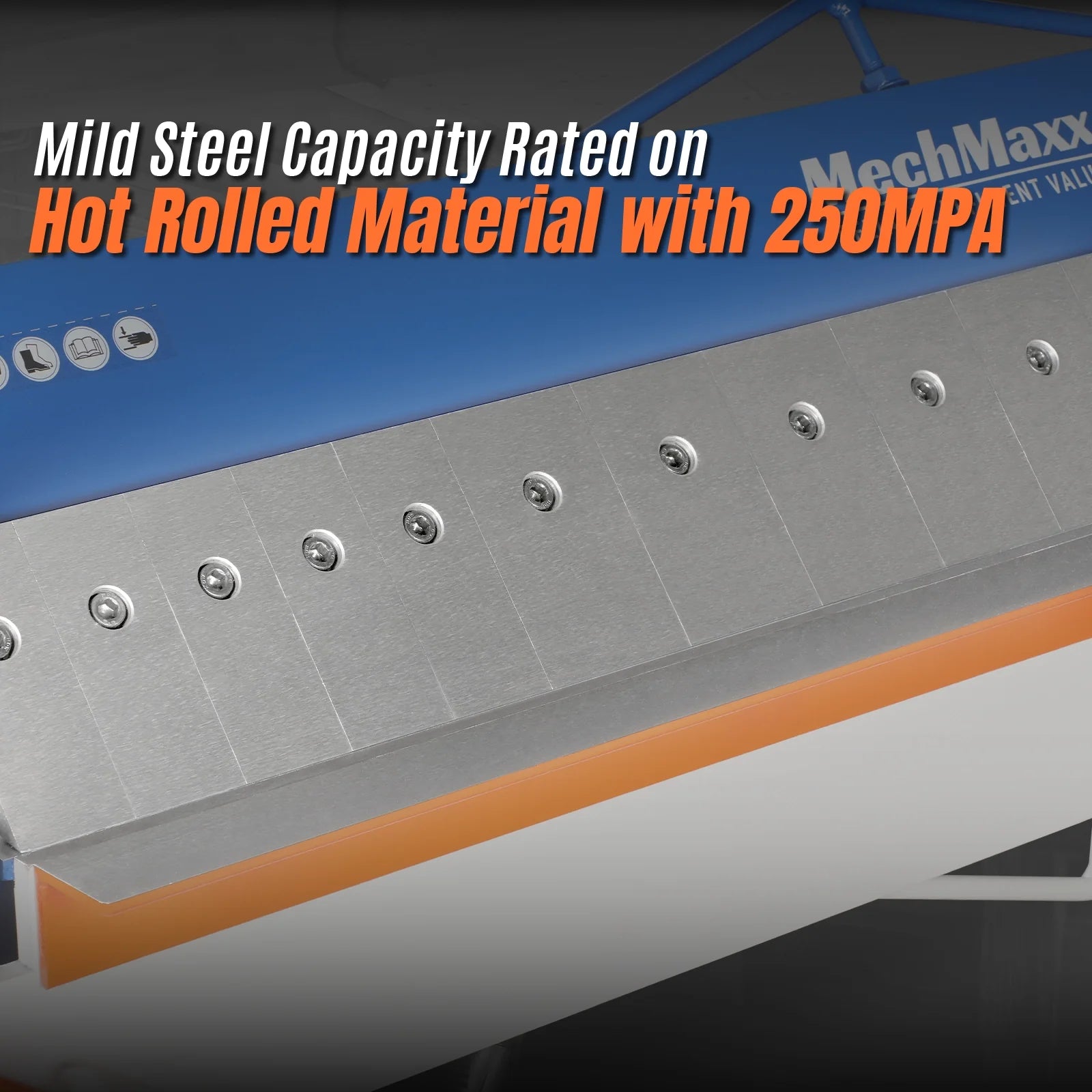

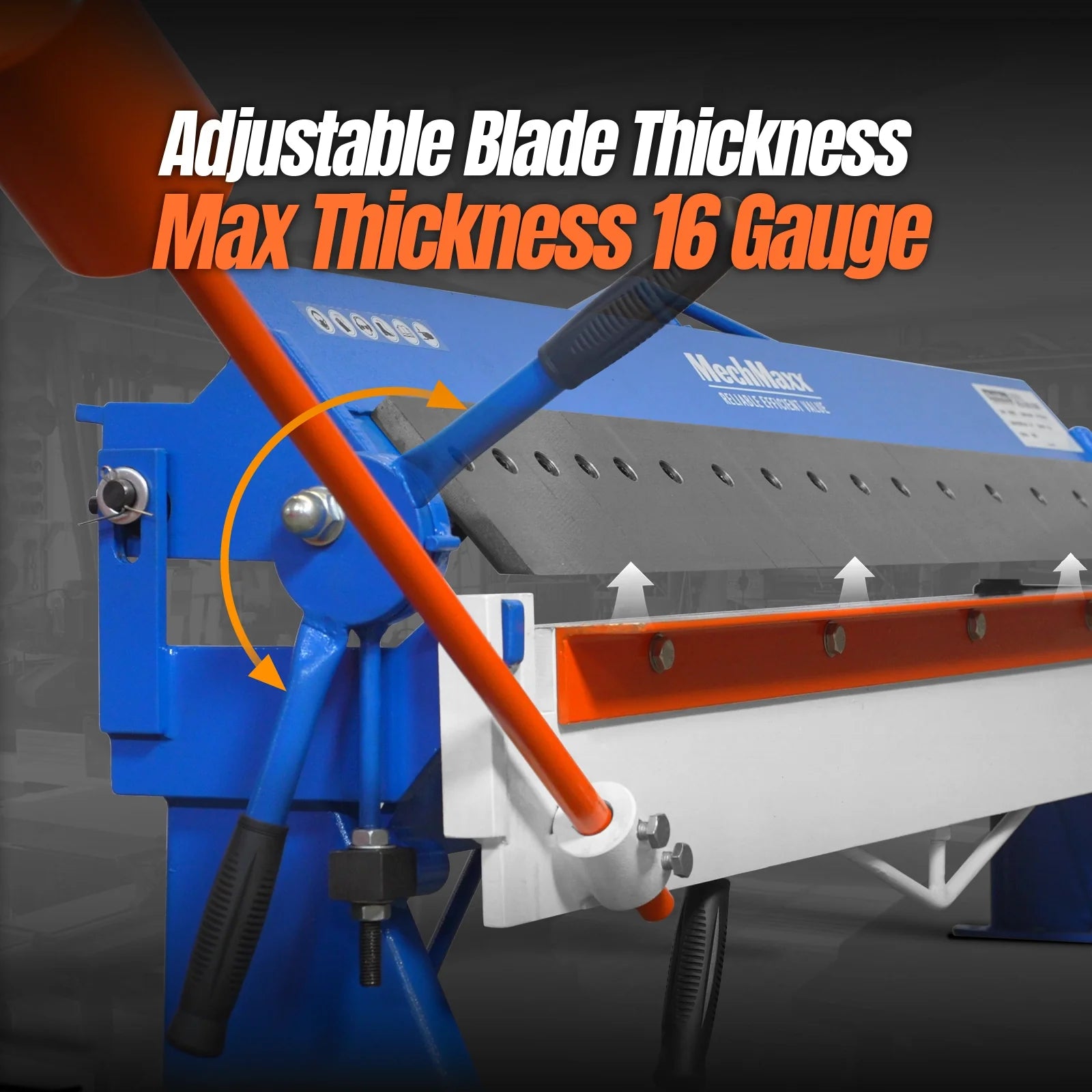

| Maximum Thickness (Full Width) | 16 gauge (Mild Steel) |
| Bending Angle Range | 0°–135° |

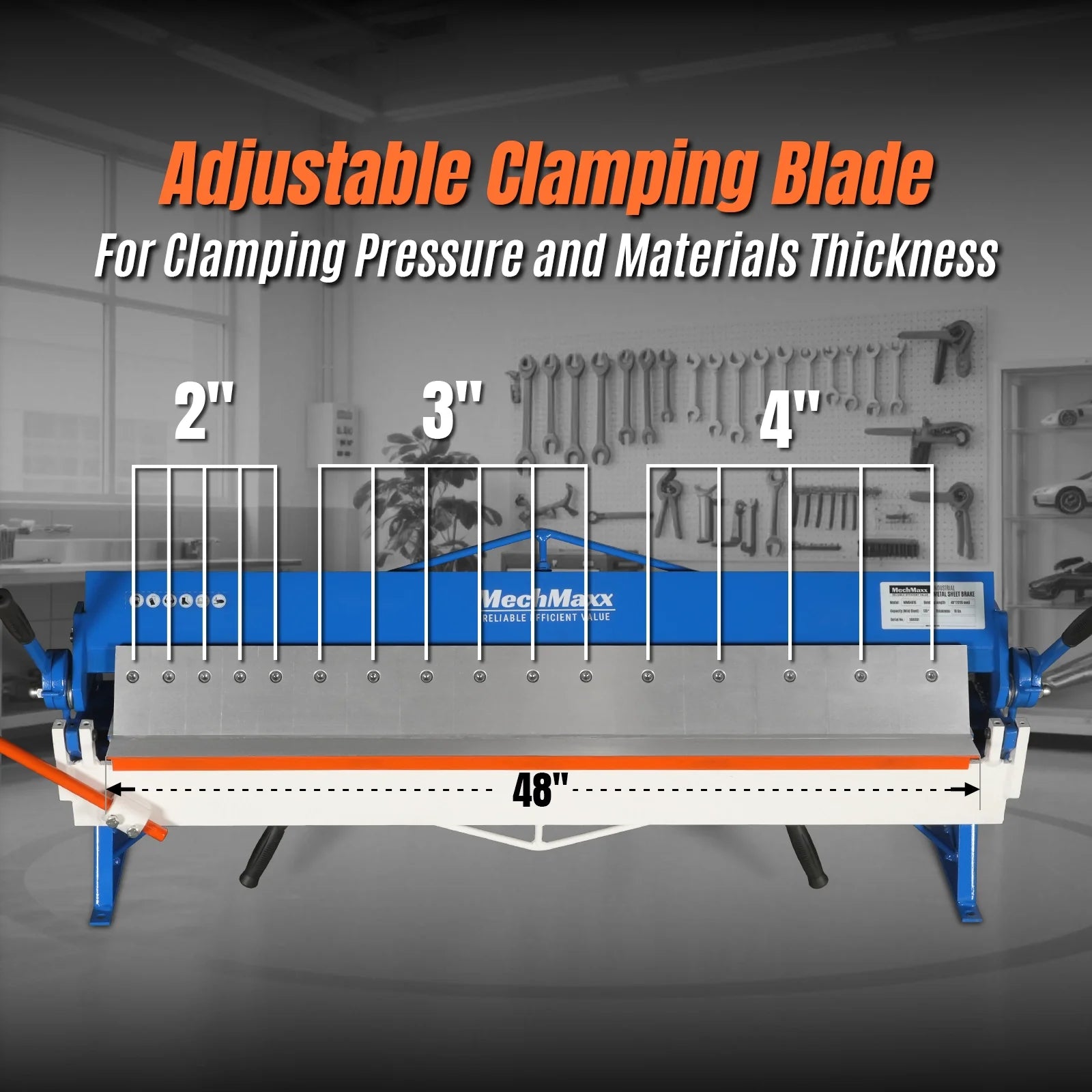

| Finger Sizes & Quantity | 2" × 5, 3" × 6, 4" × 5 (16 fingers total) |

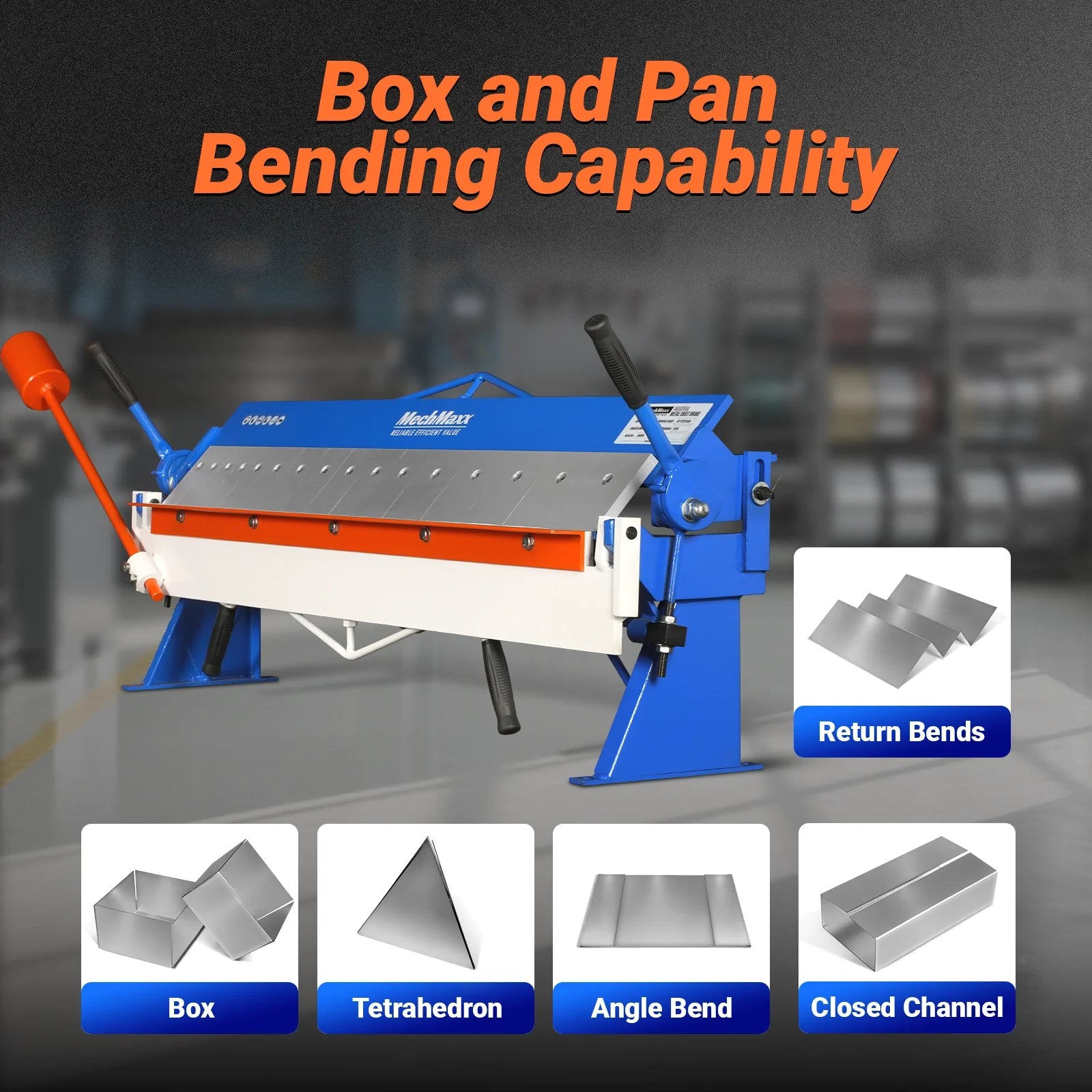

| Maximum Box Depth | 2-1/2" |
| Maximum Lift of Beam | 1-1/2" |
| Minimum Reverse Bend | 1/2" |
| Minimum Flange (Mild Steel) | 5/16" |

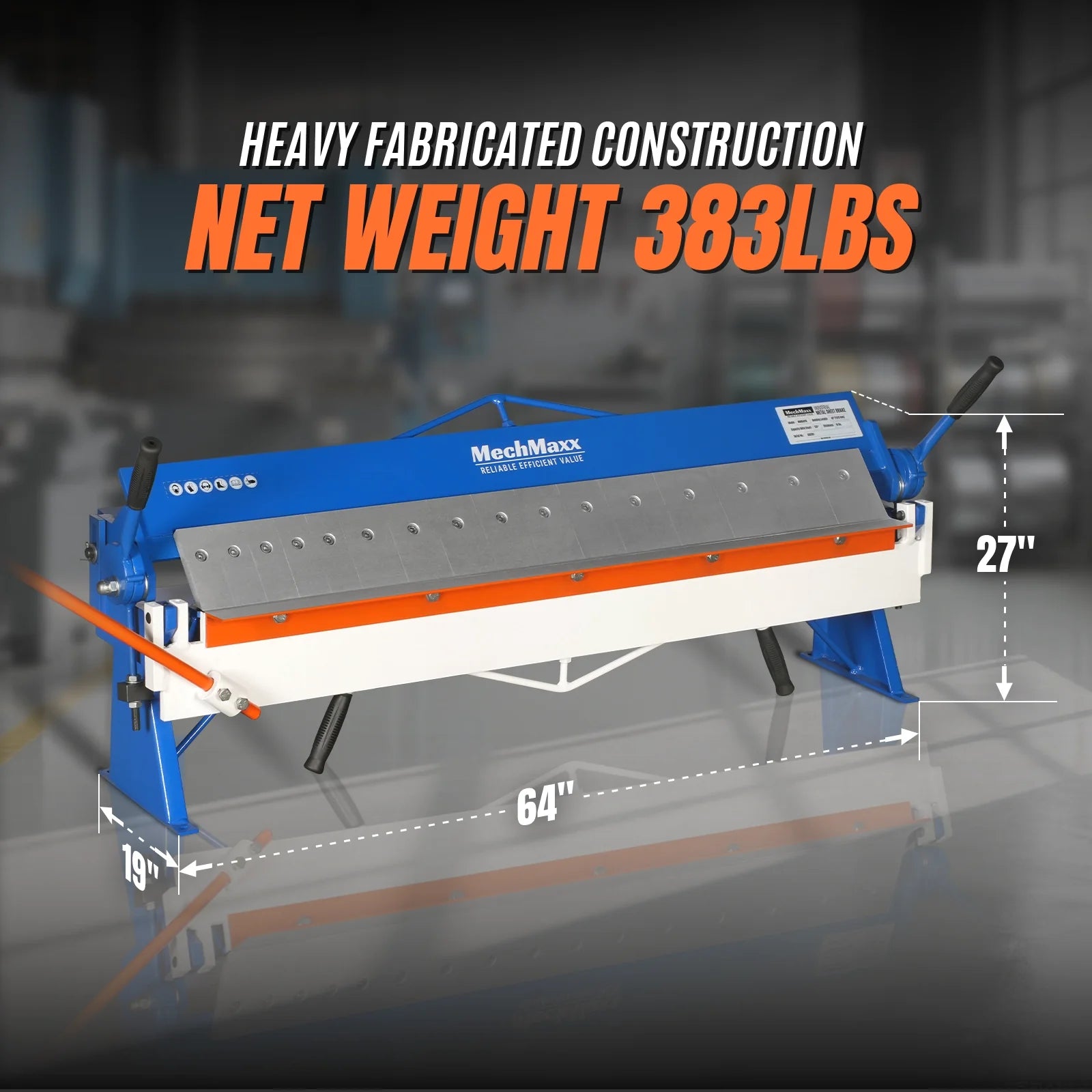

| Footprint | 12-1/2" × 52" |
| Packing Size (LxWxH) | 61.42"(1560mm) × 16.14"(410mm) × 24.80"(630mm) |
| Net Weight/Gross Weight | 299.83 / 350.53 lbs (136 / 159 kg) |

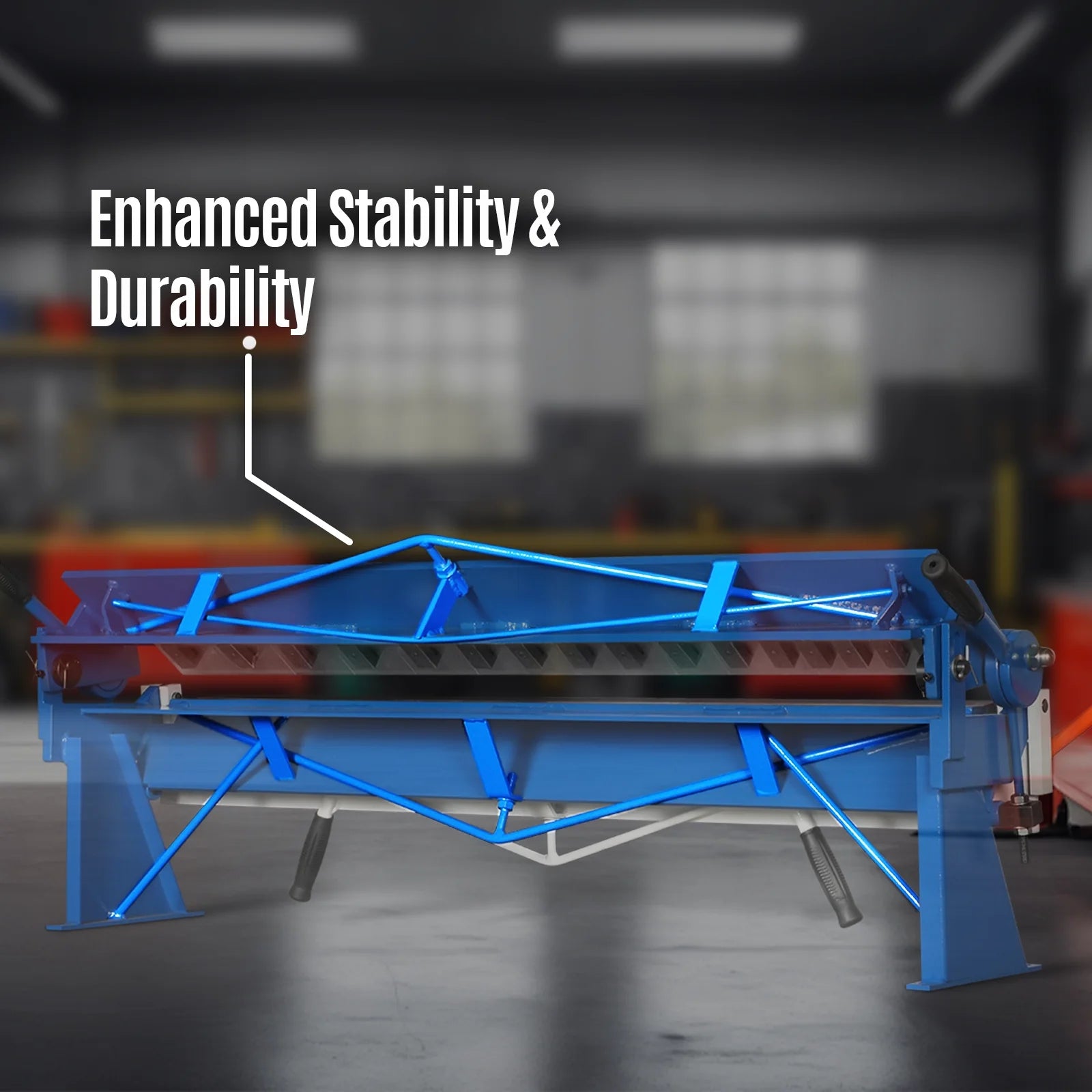

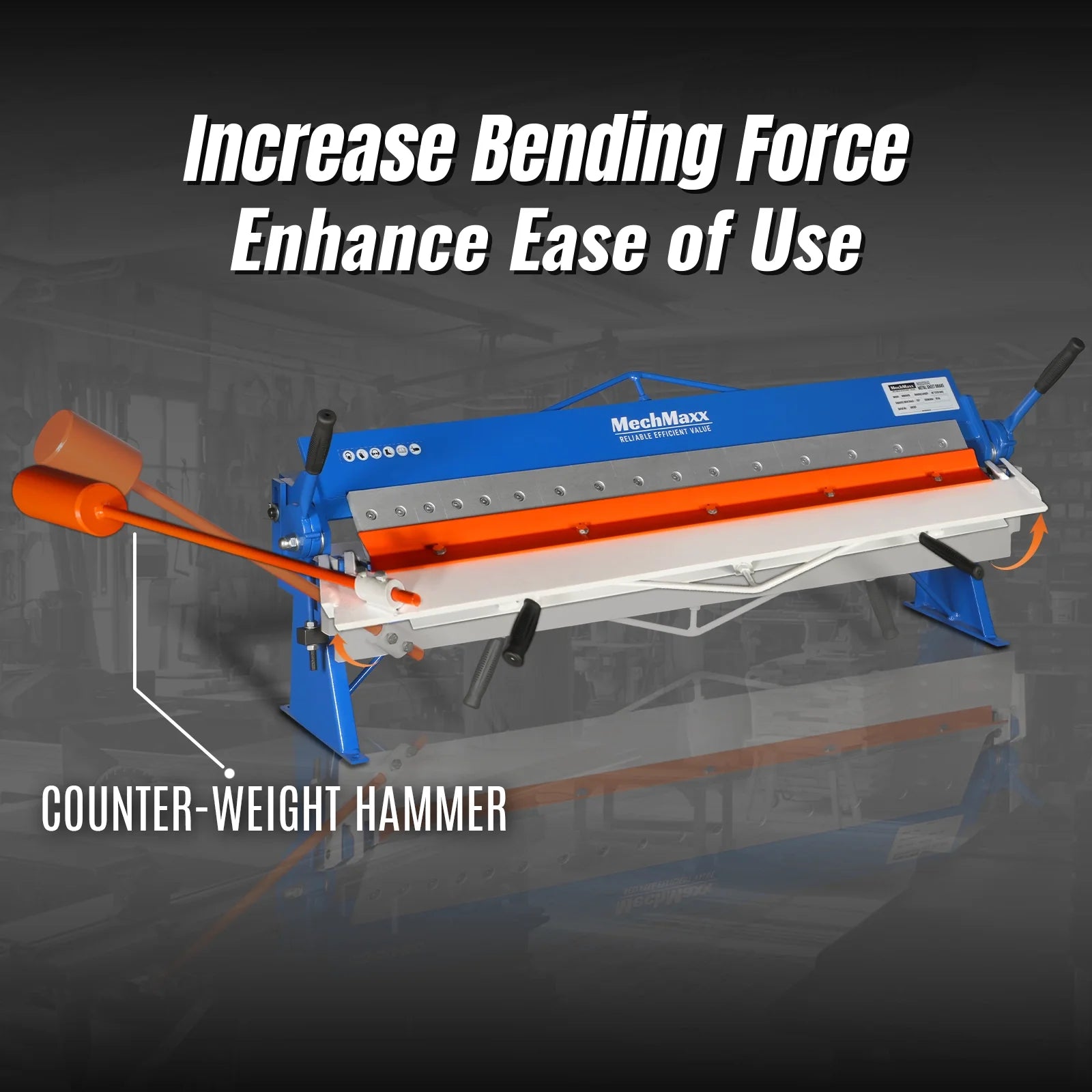

| Construction Features | Precision-ground hardened steel fingers, counter-balanced handle, fully trussed frame with reinforced triangular bracing for strength & accuracy. |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
