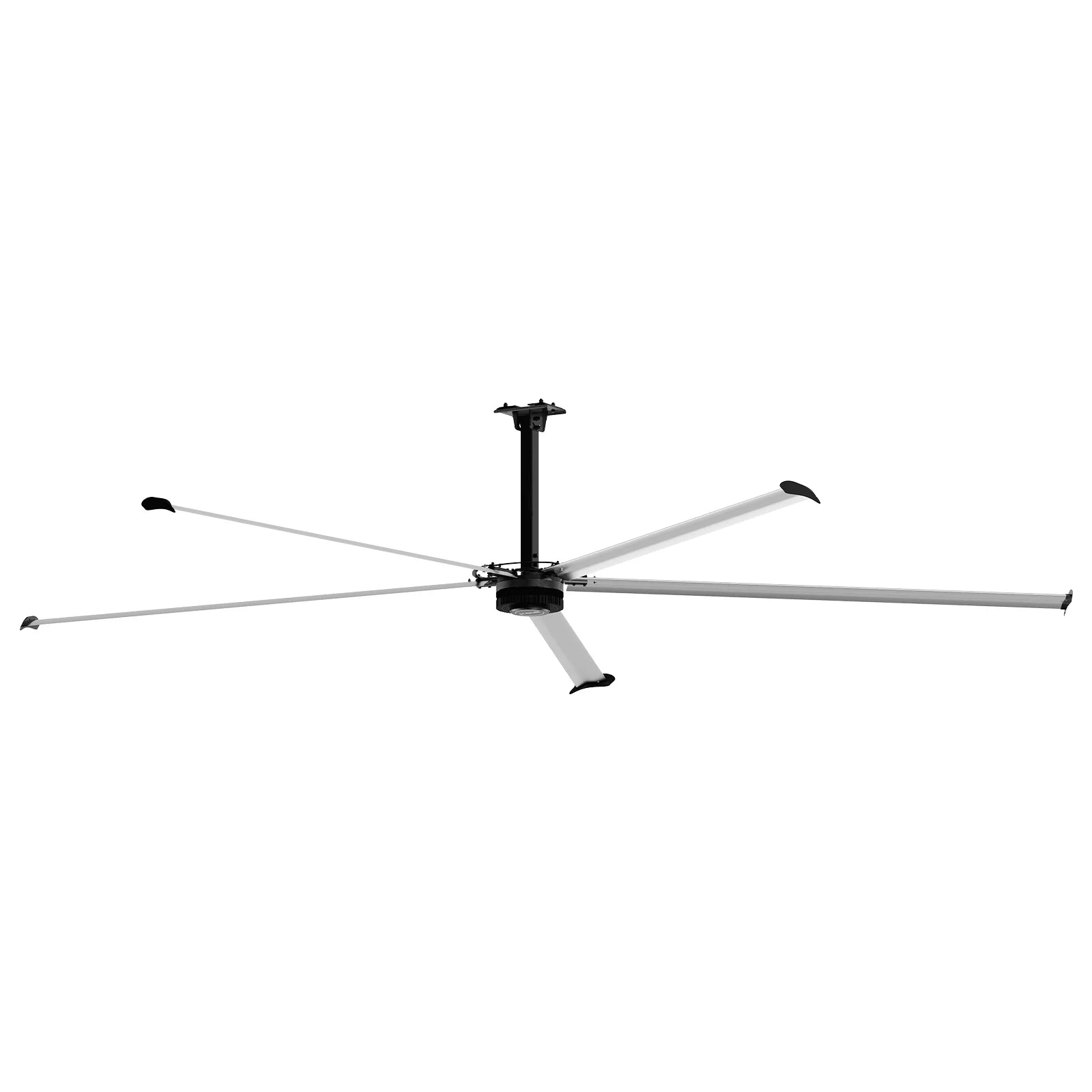

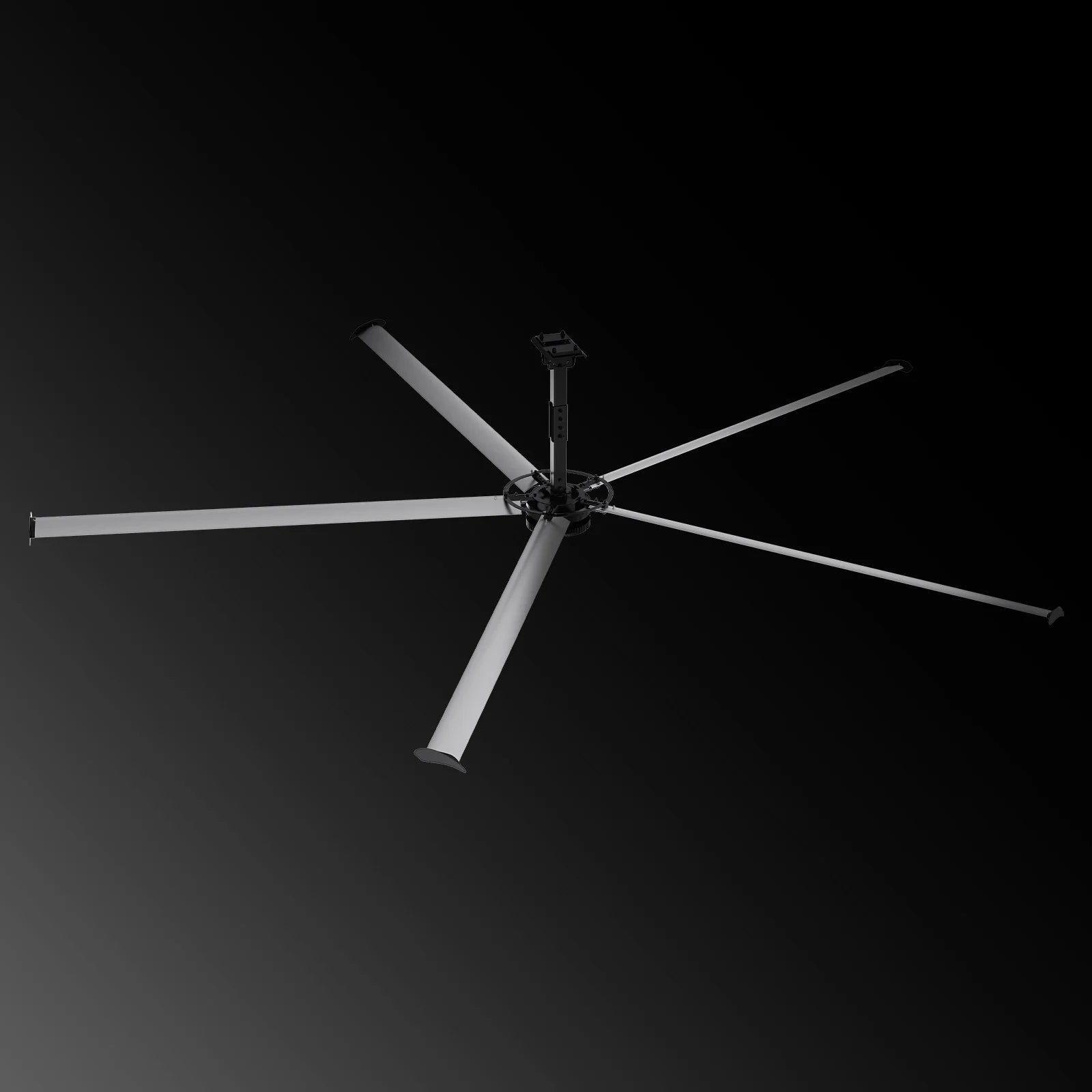

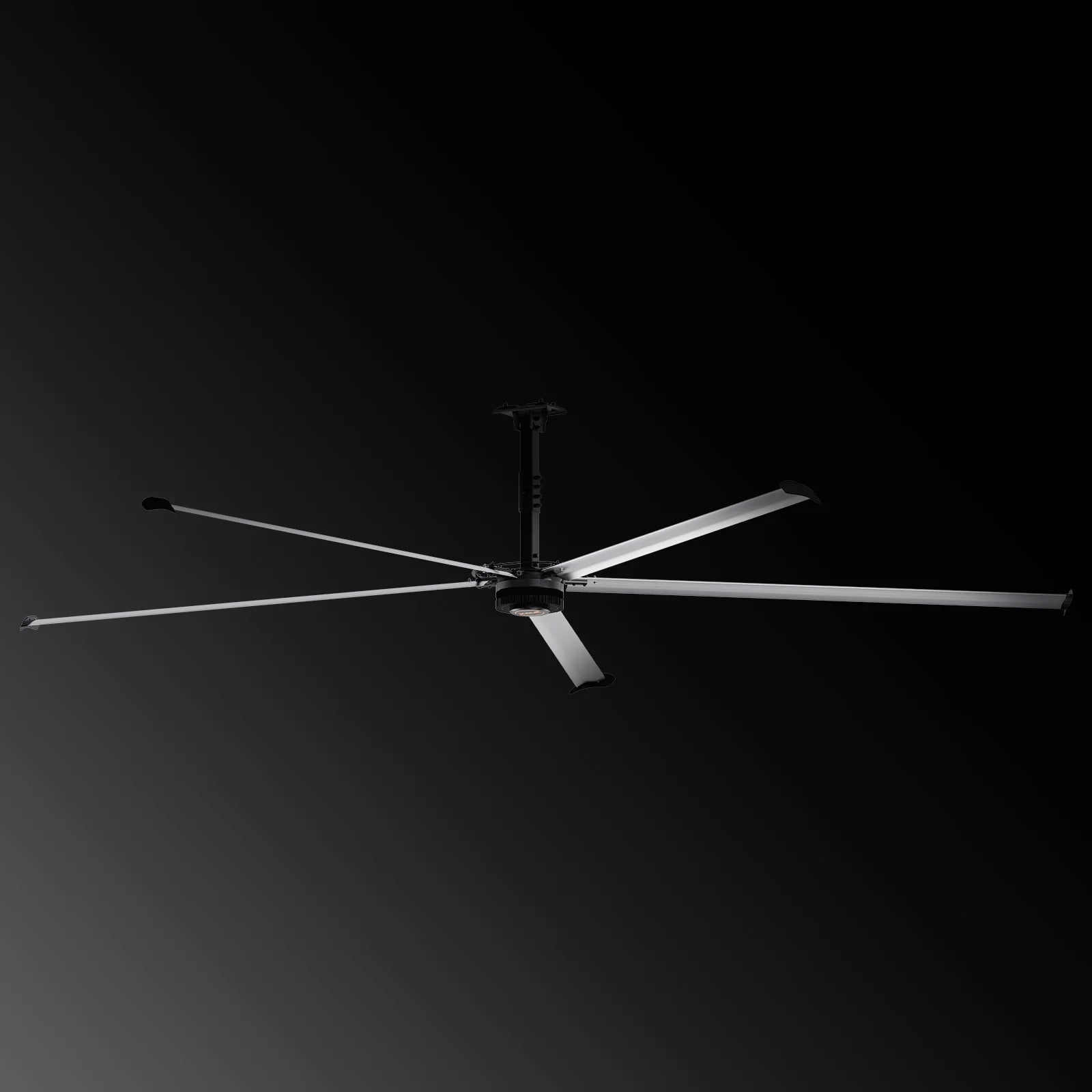

| Model | 20FT1PH |
| Certifications | cULus,CE,SAA |
| Fan Diameter | 20FT |
| Number of Blades | 5 |
| Cooling Coverage | 12325ft² |
| Voltage | 220V ±10% 1Ph |
| Full Load Current | 4.4 A |
| Fan Watts | 1.0KW |
| RPM Range | 10-62 RPM |
| Air Flow@Max Speed | 517,360 CFM |

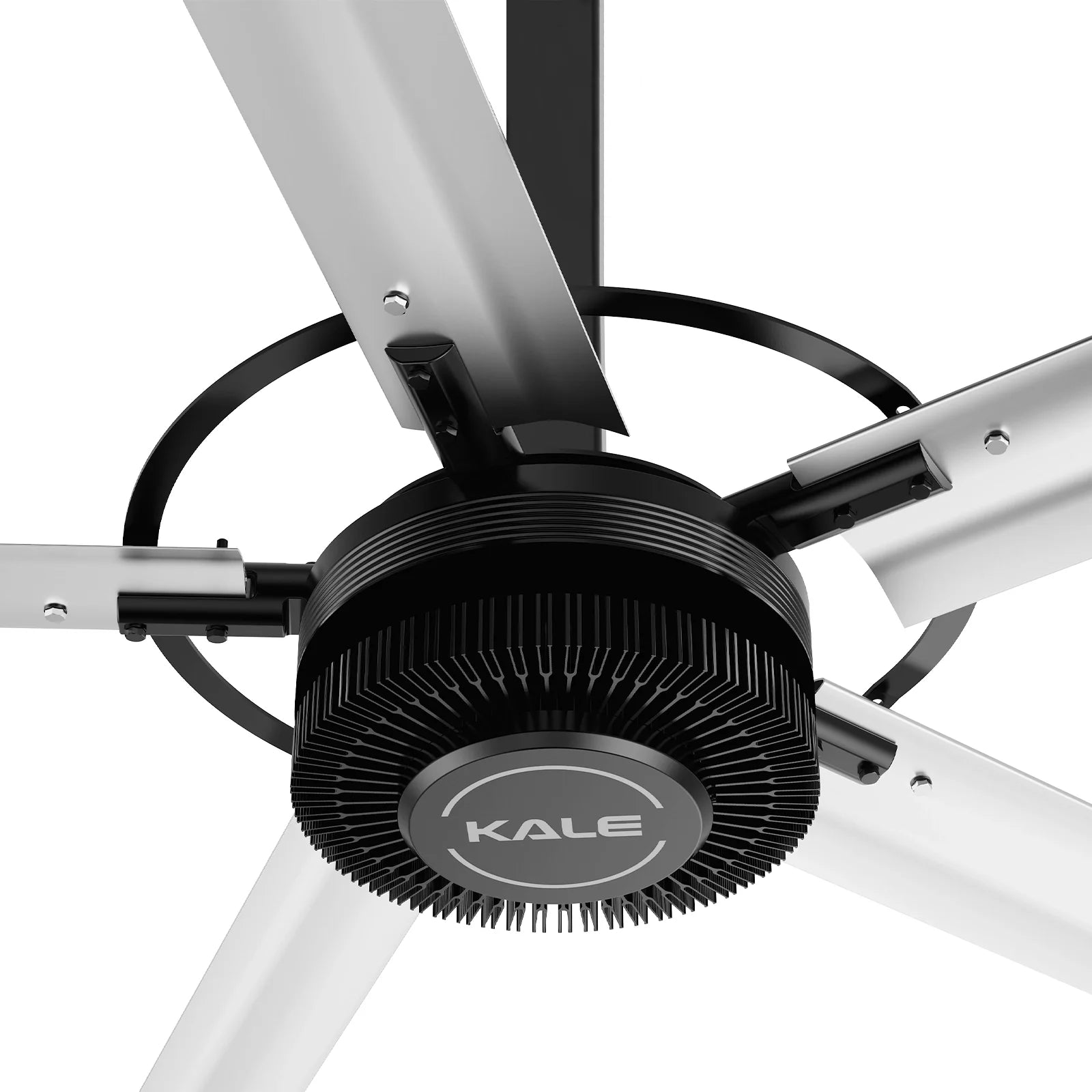

| Drive Motor | Permanent Magnet Synchronous Motor |
| Speed | Variable Speed |
| Drive Type | Direct |
| Blade Material | Al-Mg |
| Fan Weight | 265LBS |
| Noise Level | ＜40dB |
| Protection Level(Motor) | IP55 |

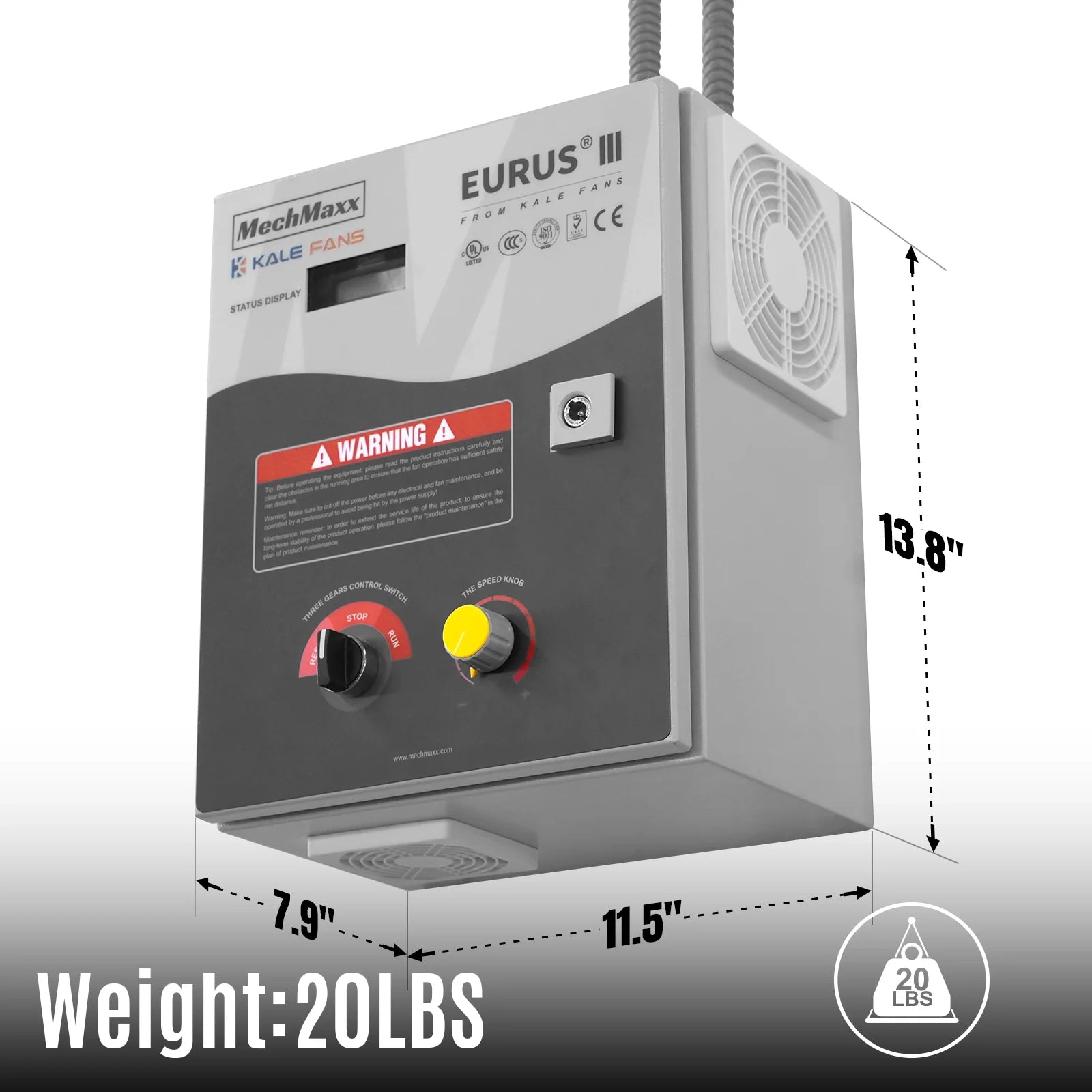

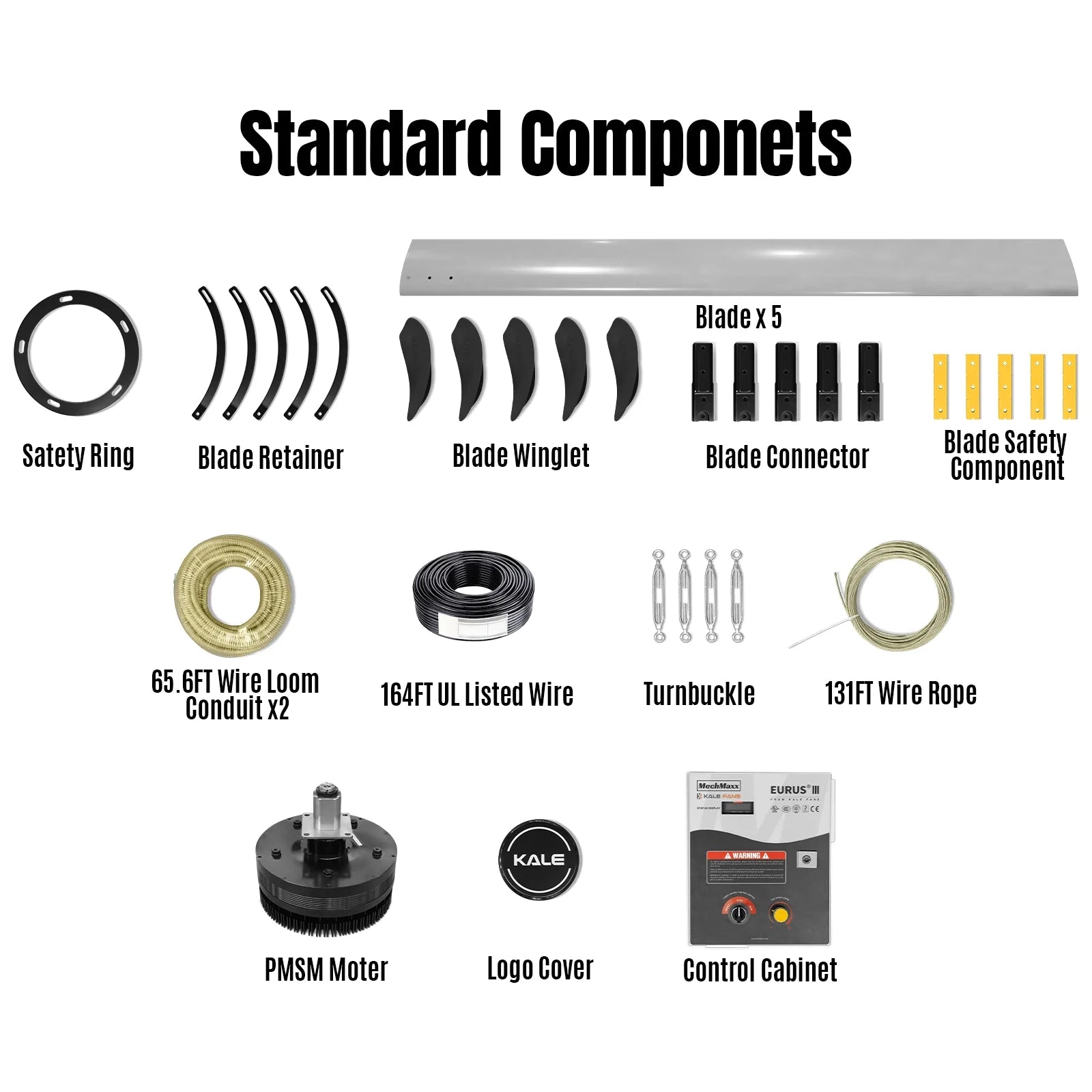

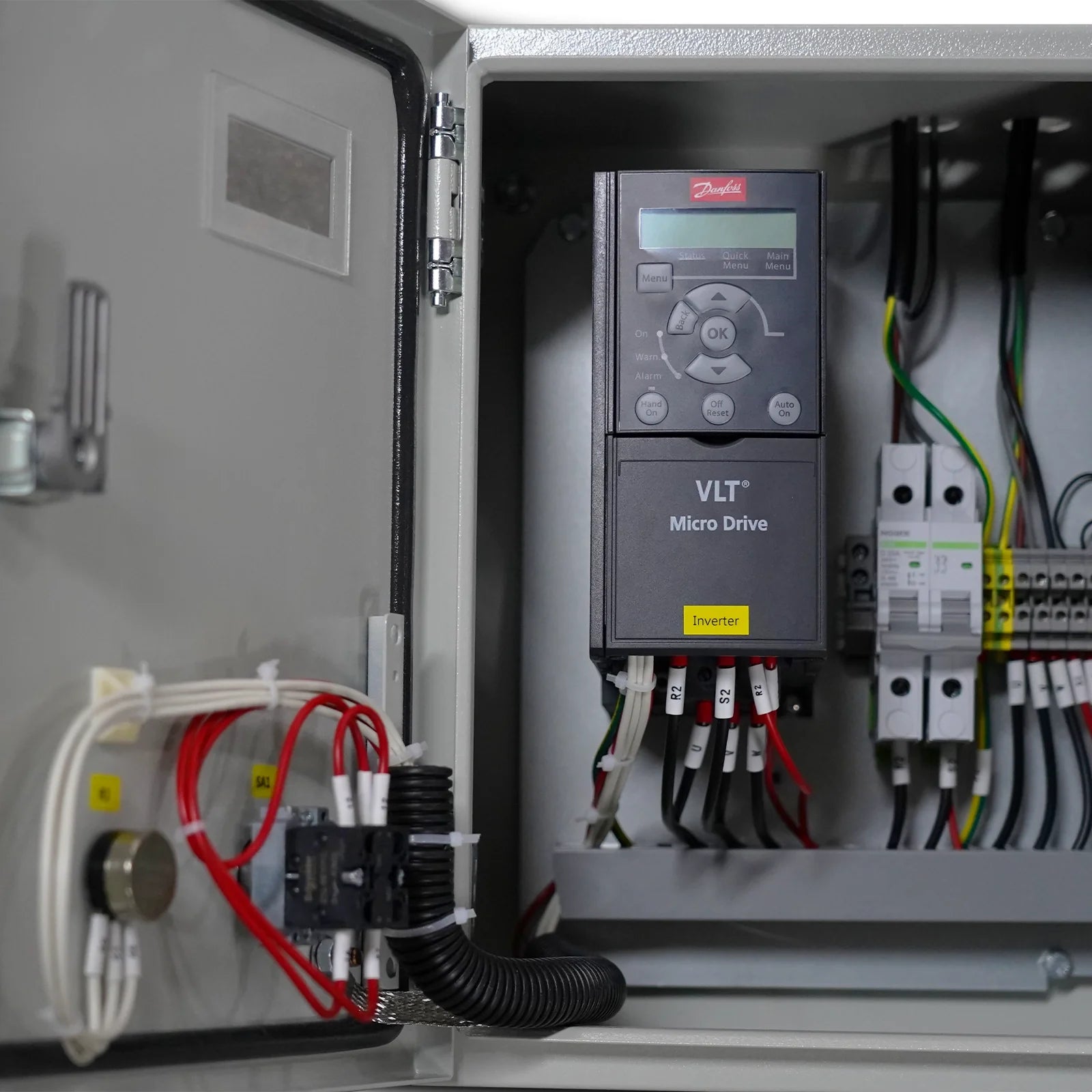

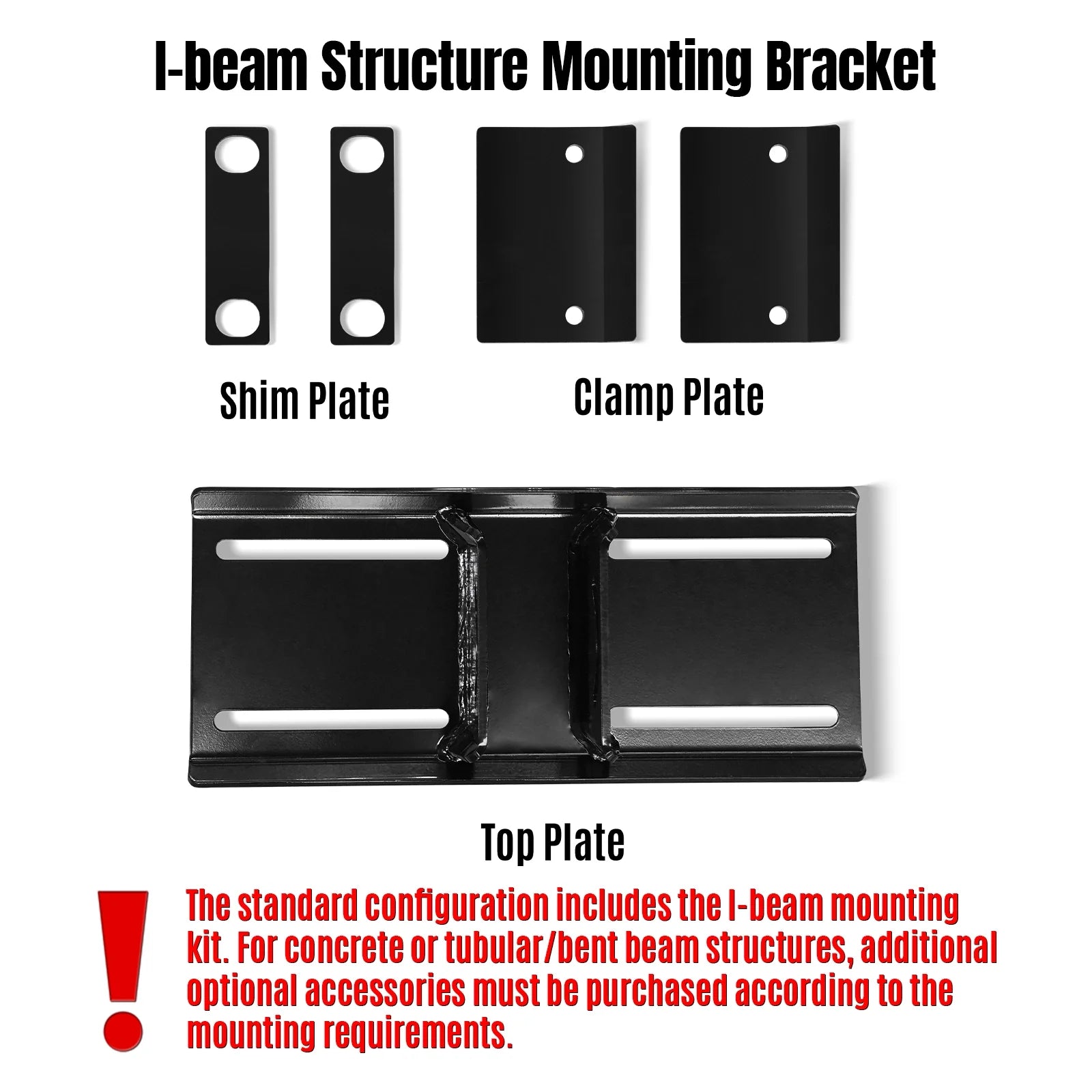

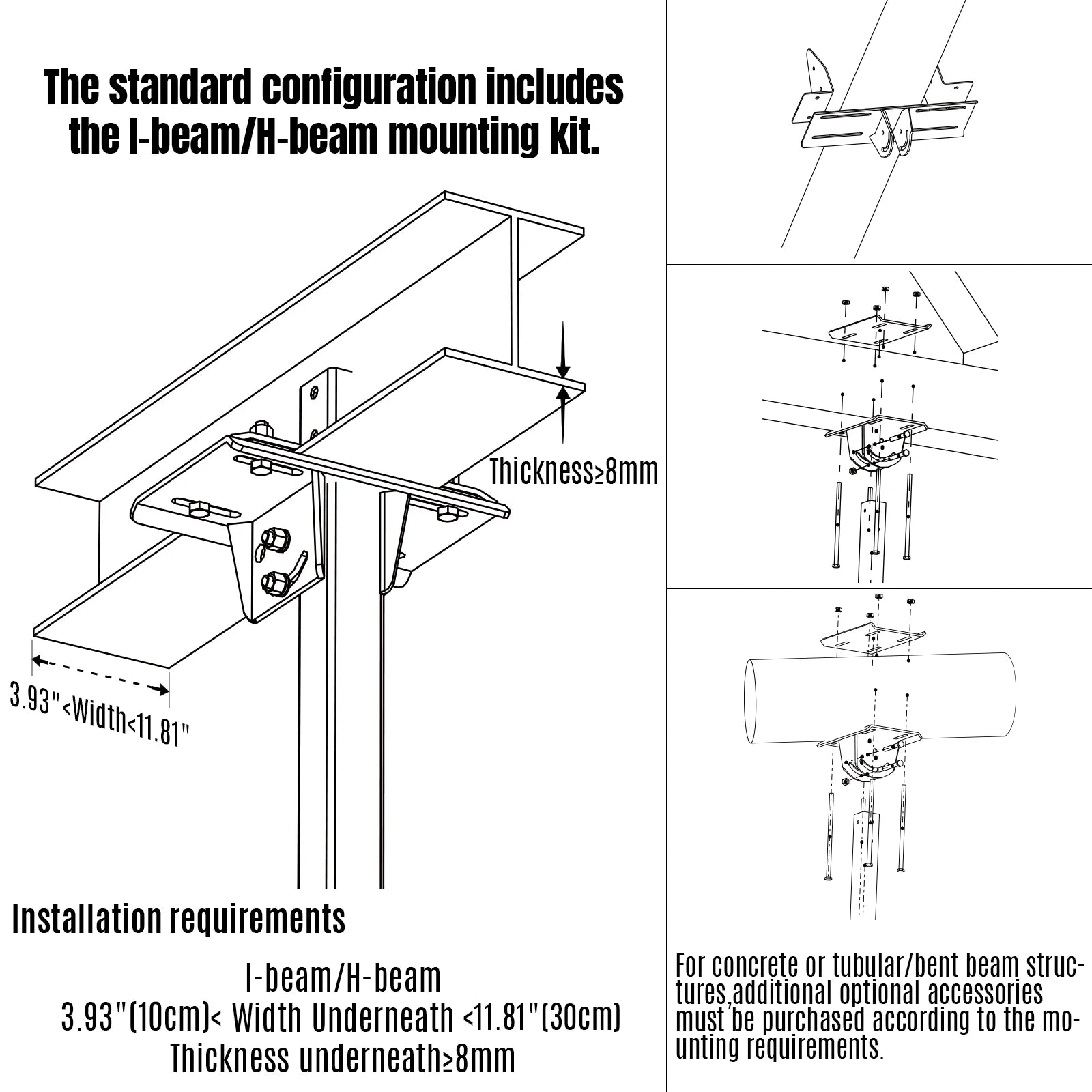

| Standard Includes | I-Beam Structure Mounting Kits; 59" Extension Tube; Control Cabinet; 131Wire Conduit; 131'Wire Rope; 164' UL Listed Wire. |

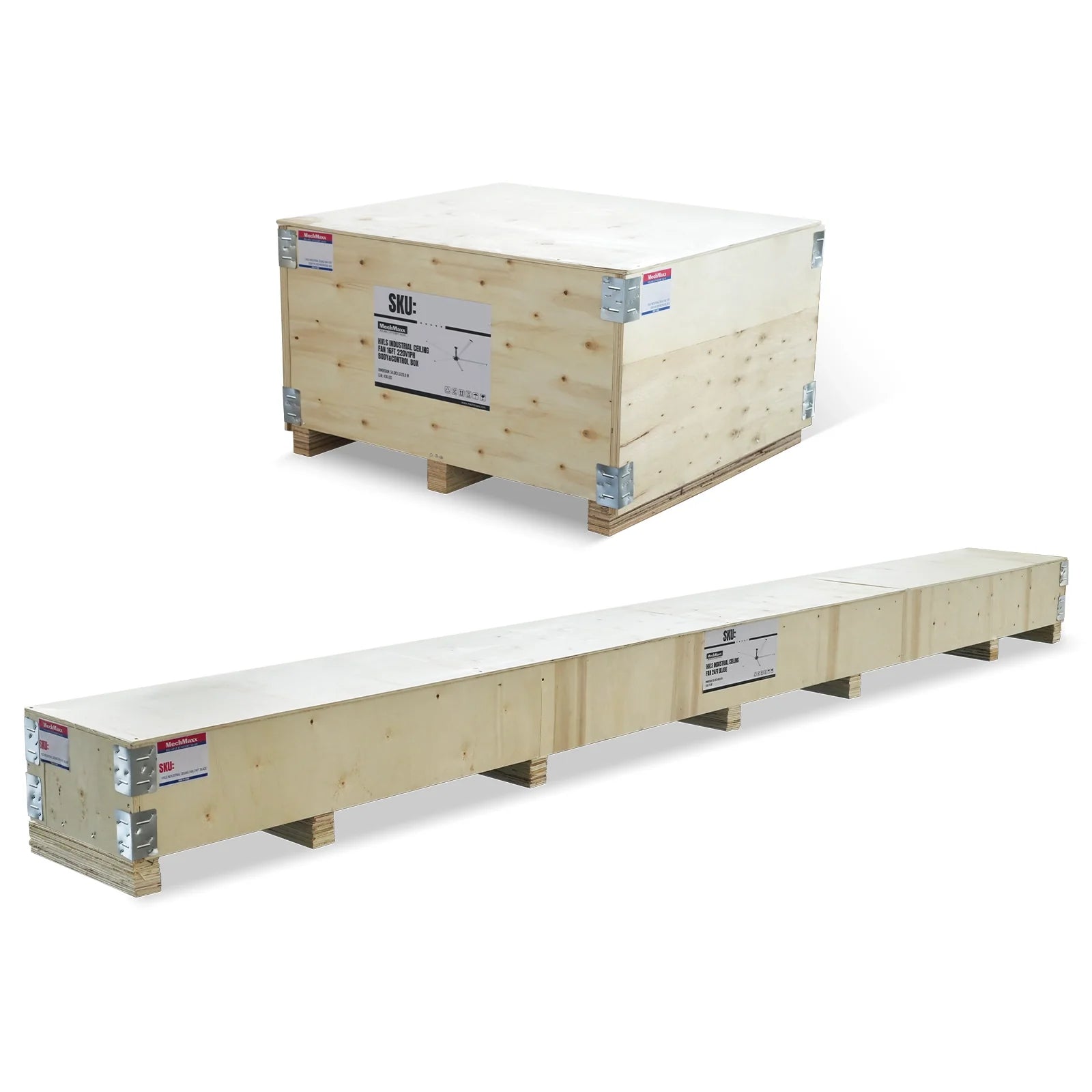

| Packing Size | Box A:34.6"x31.5"x20.9" Box B:115.7"x13.4"x10.6" |
| Gross Weight | Box A: 356 LBS Box B: 158 LBS |
