| Specification | Specification Value |
| Swing Over Bed | 14 in (356 mm) |
| Swing Over Cross Slide | 8-13/16 in (224 mm) |
| Swing Over Gap | 19-3/4 in (502 mm) |
| Distance Between Centers | 40 in (1016 mm) |
| Bed Width | 7.38 in (187 mm) |
| Spindle Bore | 2 in (51 mm) |

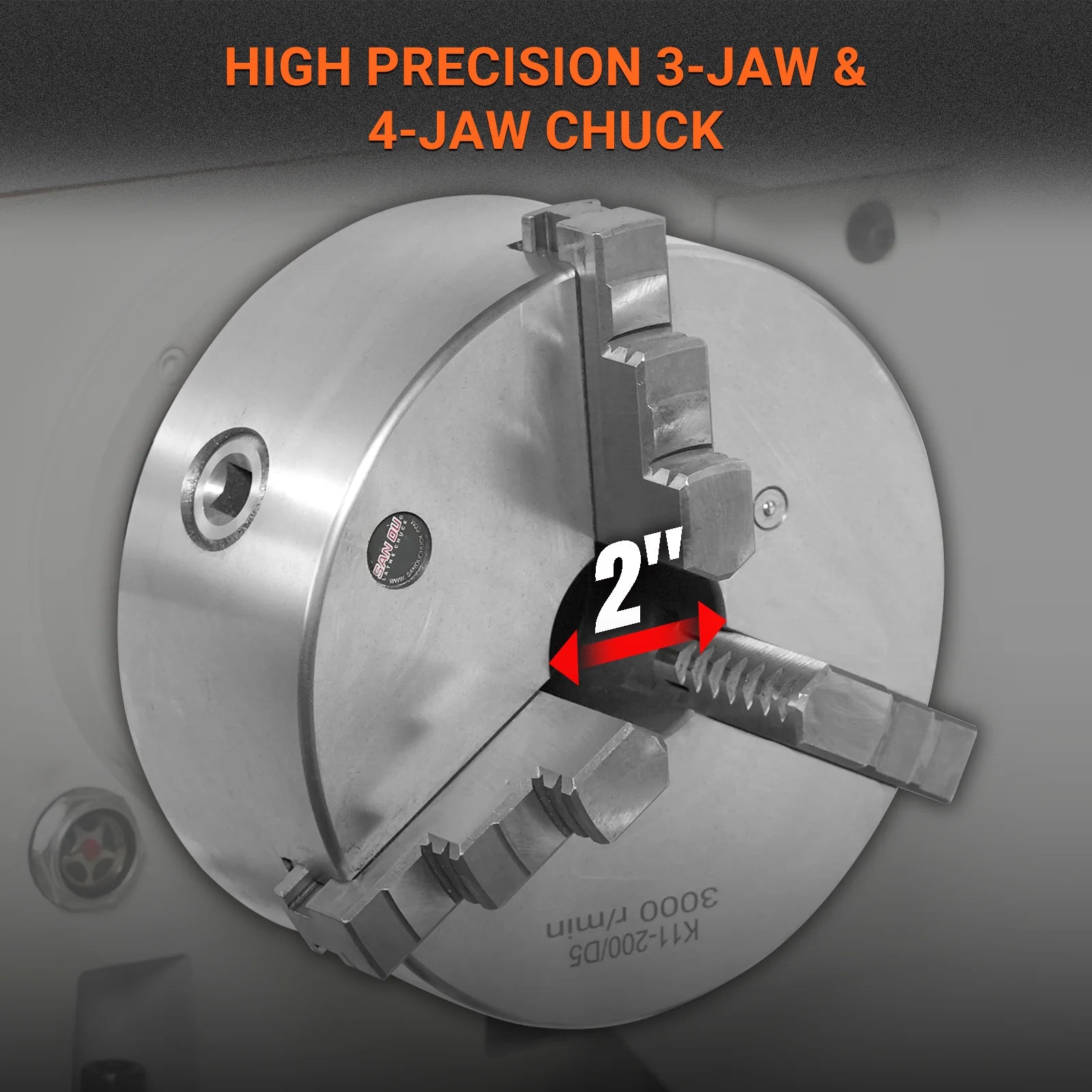

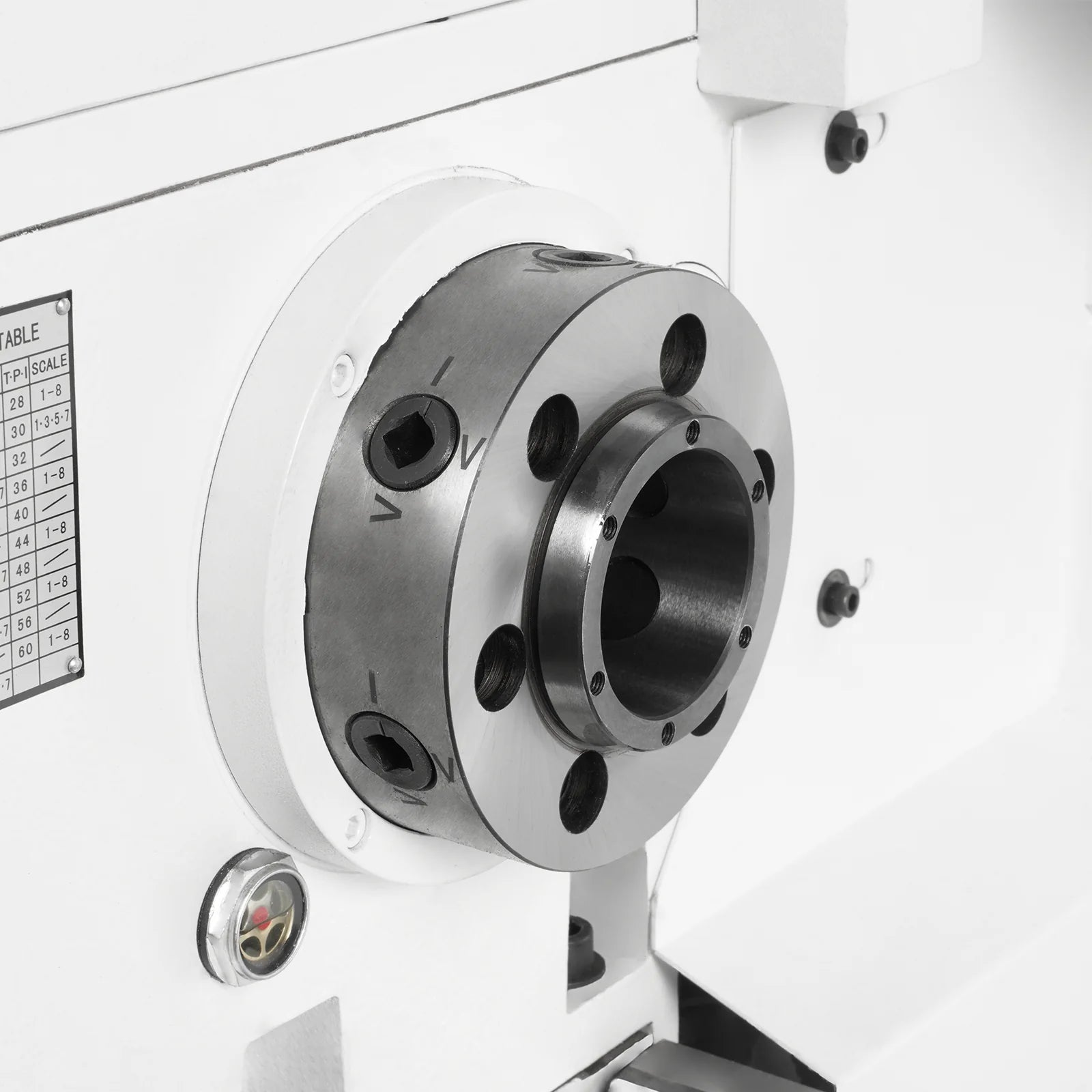

| Spindle Mount | D1-5 Camlock |
| Spindle Taper | MT6 |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter | 1.26 in (32 mm) |

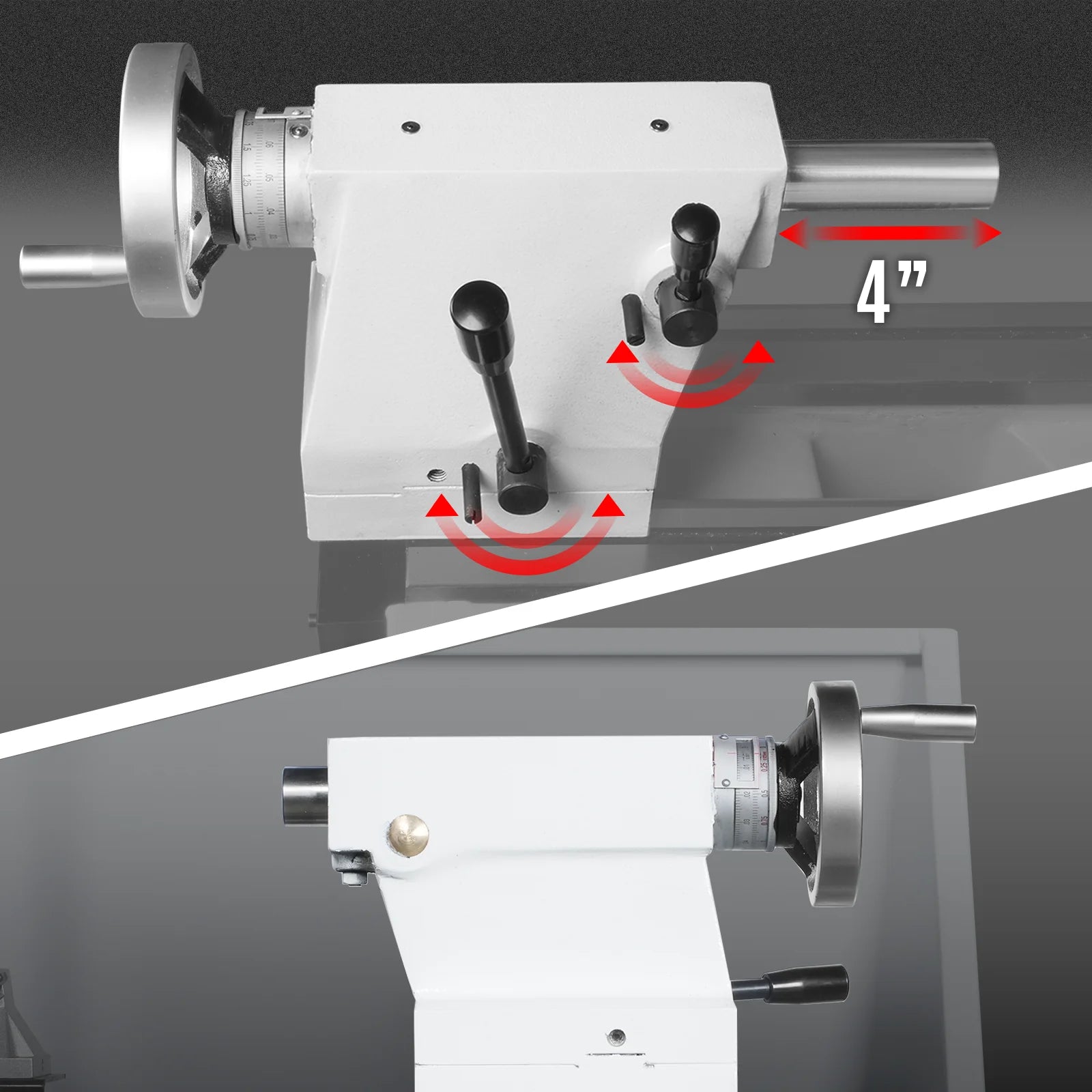

| Tailstock Quill Travel | 4 in (102 mm) |

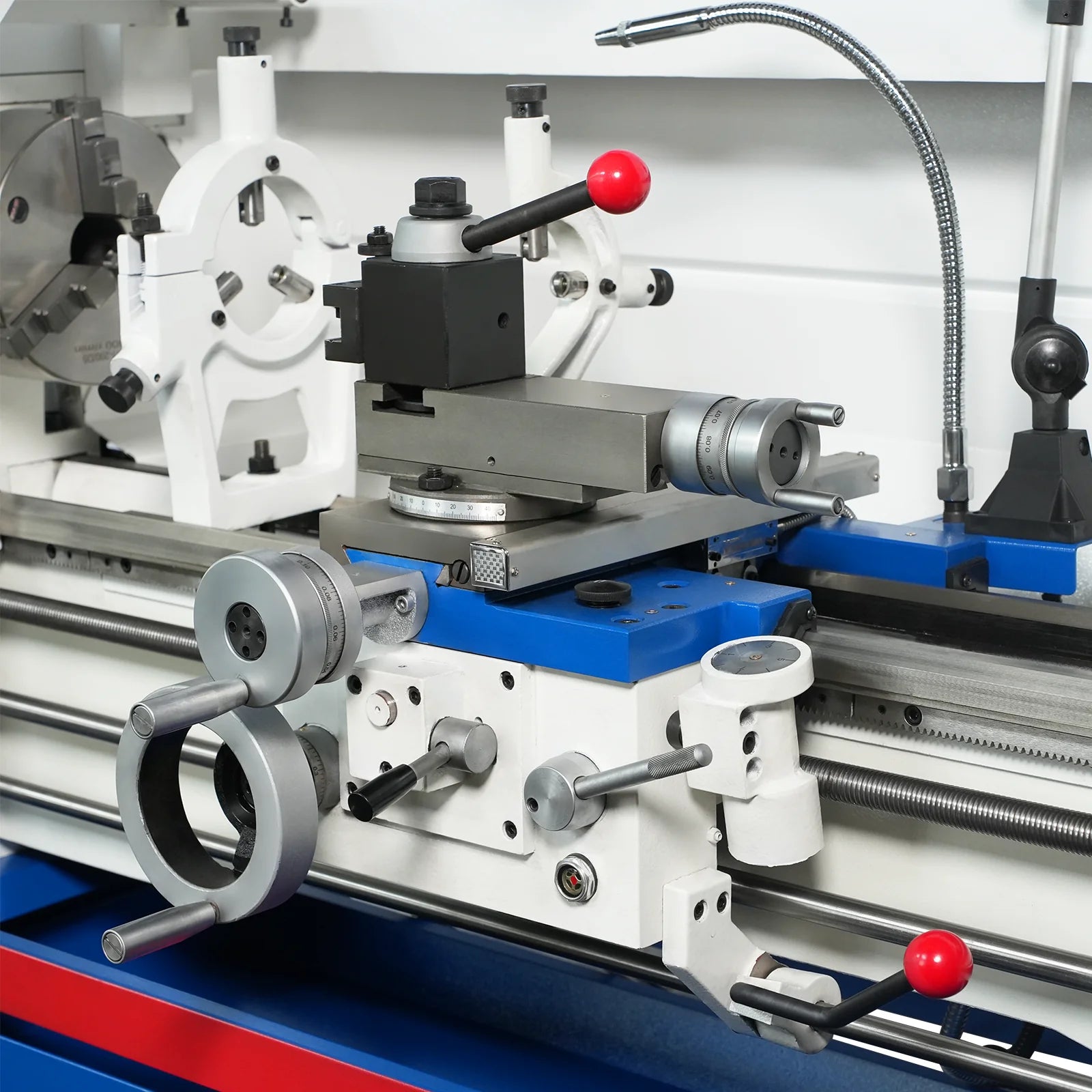

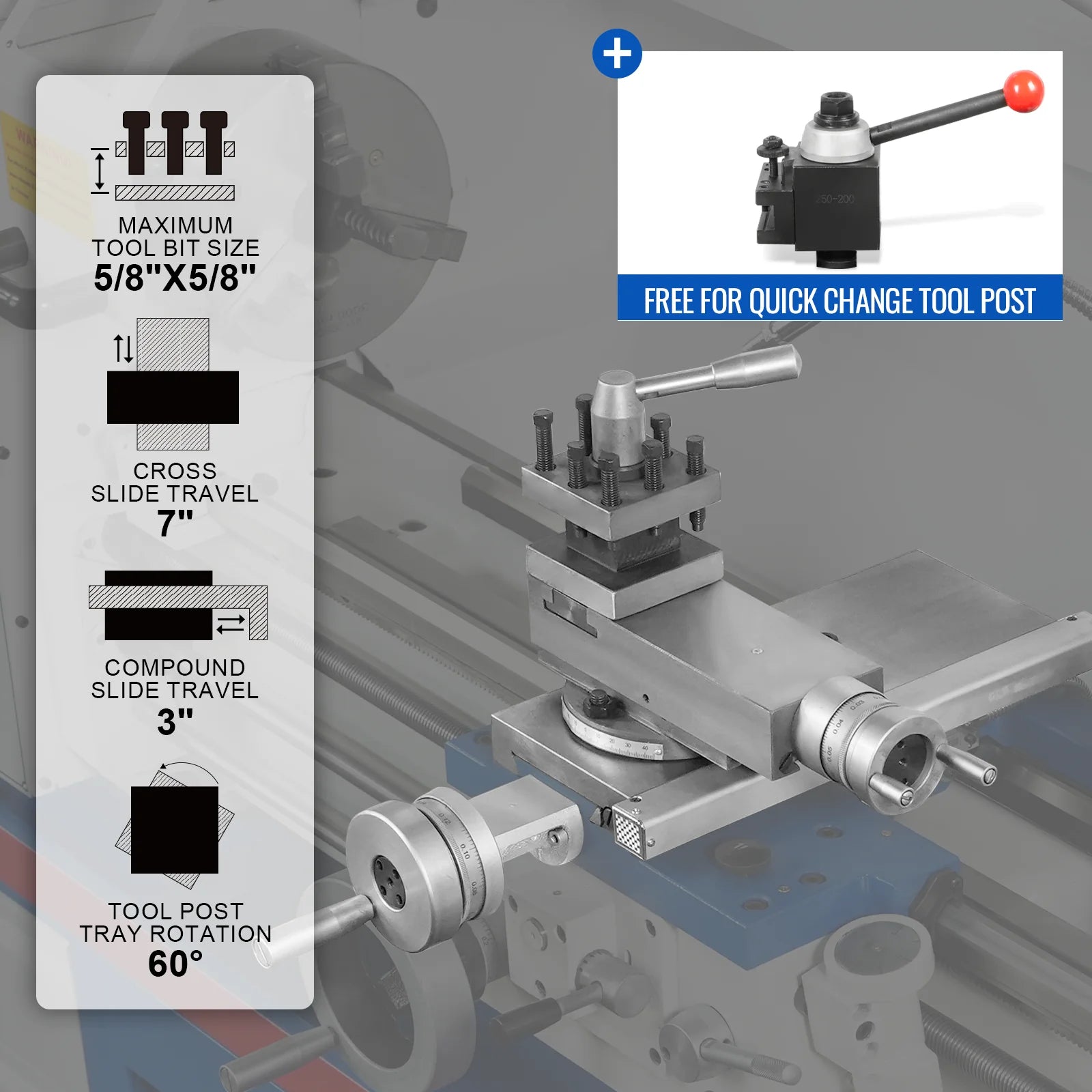

| Cross Slide Travel | 6-11/16 in (170 mm) |
| Compound Rest Travel | 3 in |

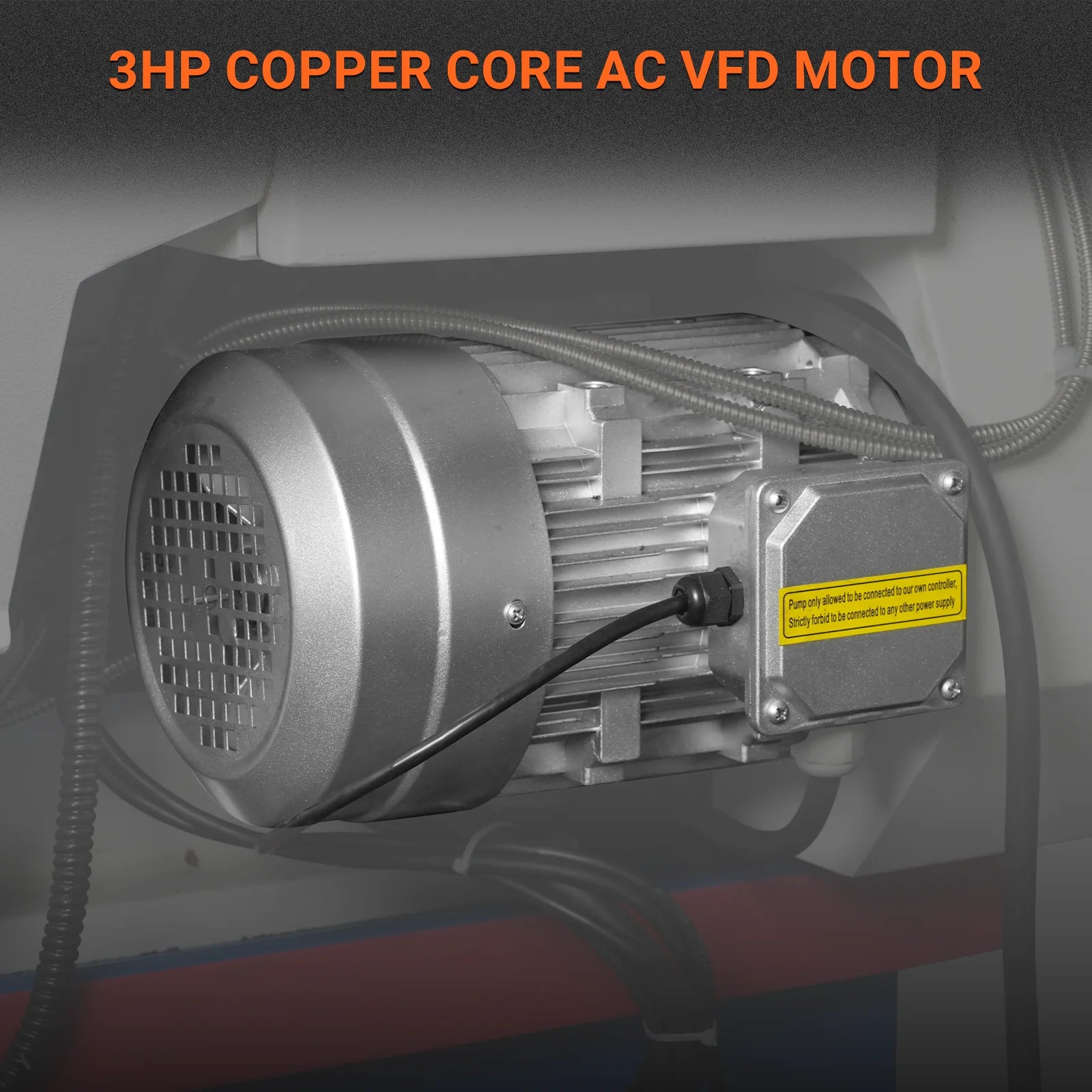

| Motor Power | 3 HP |
| Motor Type | AC Motor with Variable Frequency Drive |

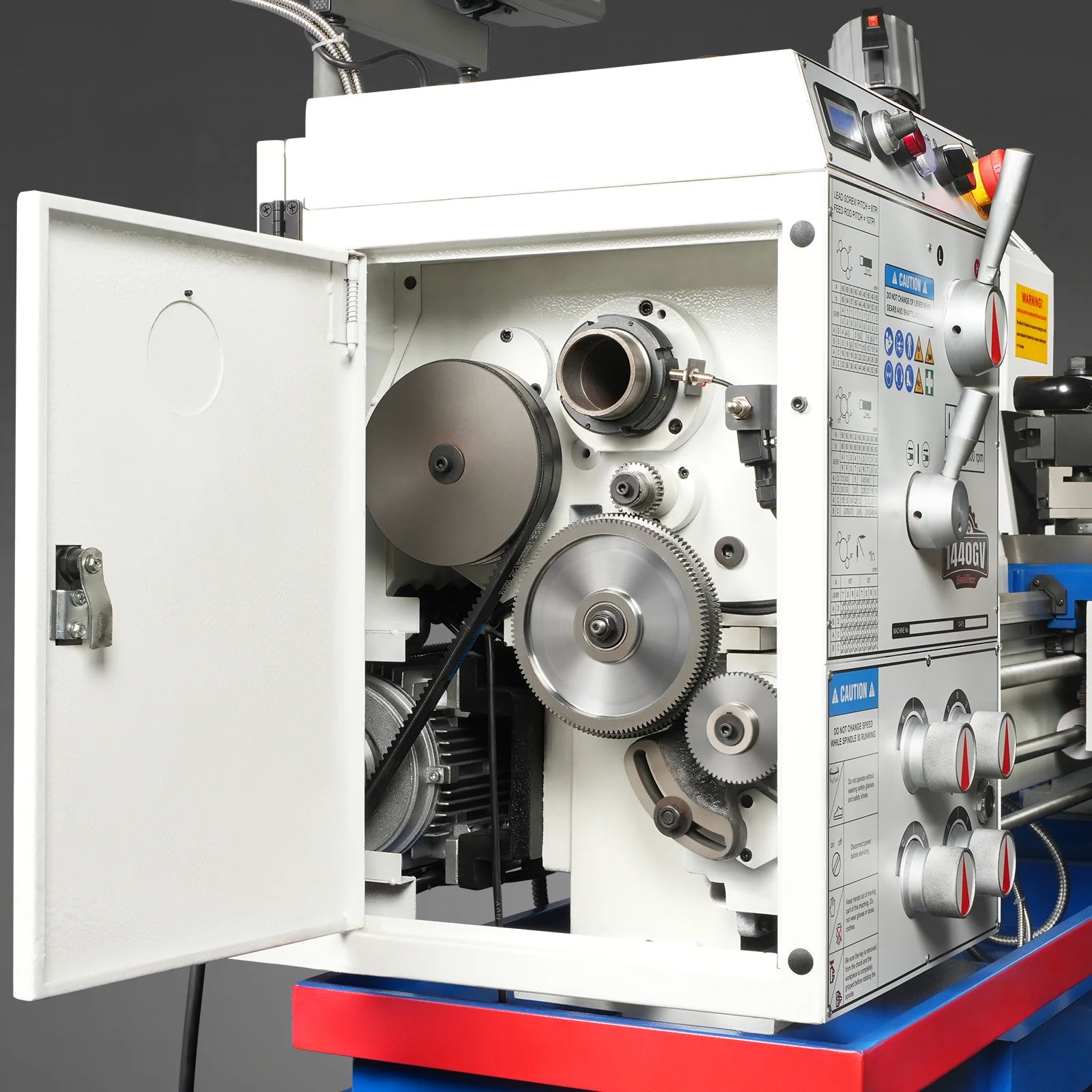

| Drive Type | Belt Drive |
| Voltage | 220V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Amperage | 20 A |

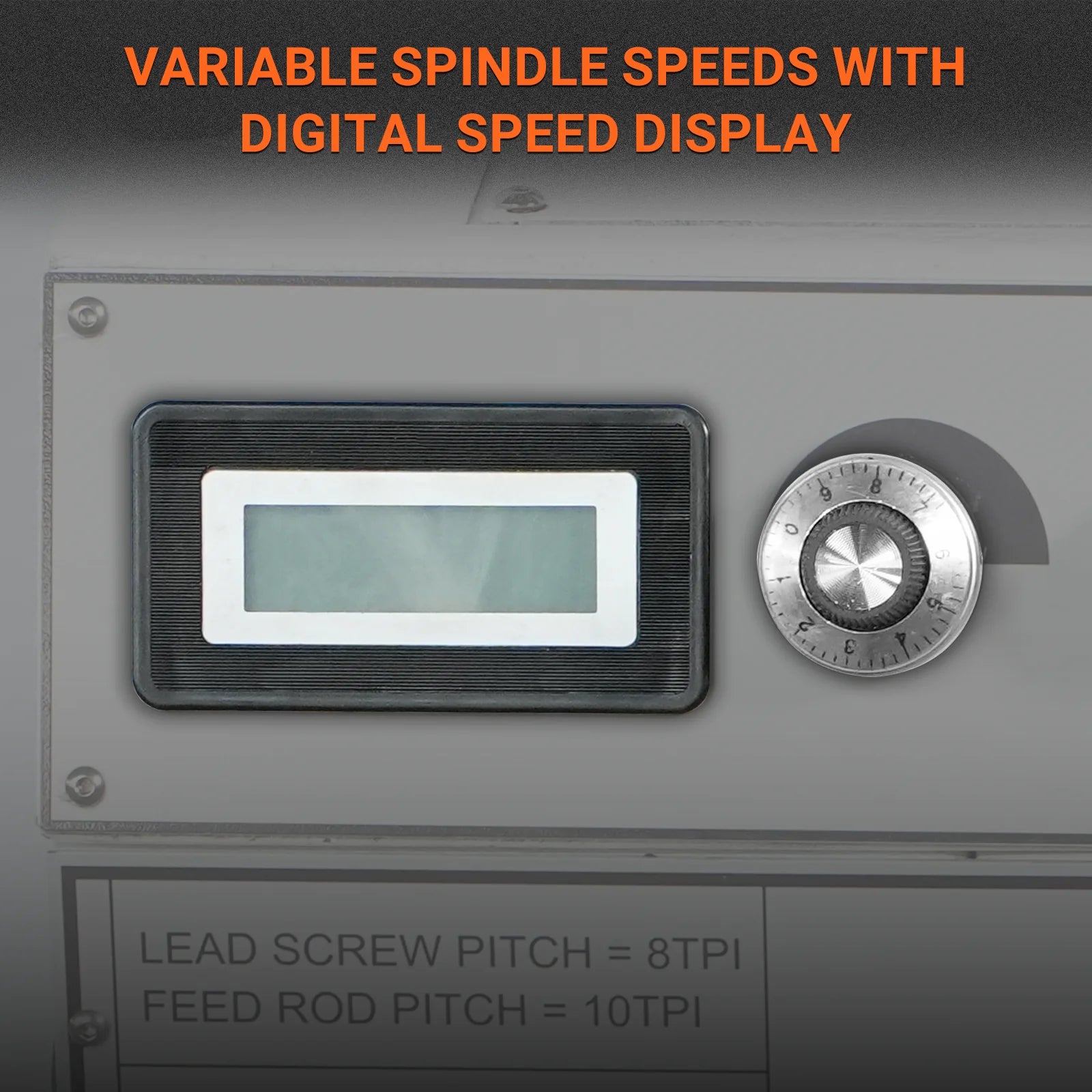

| Speed Adjustment | Infinitely Variable |

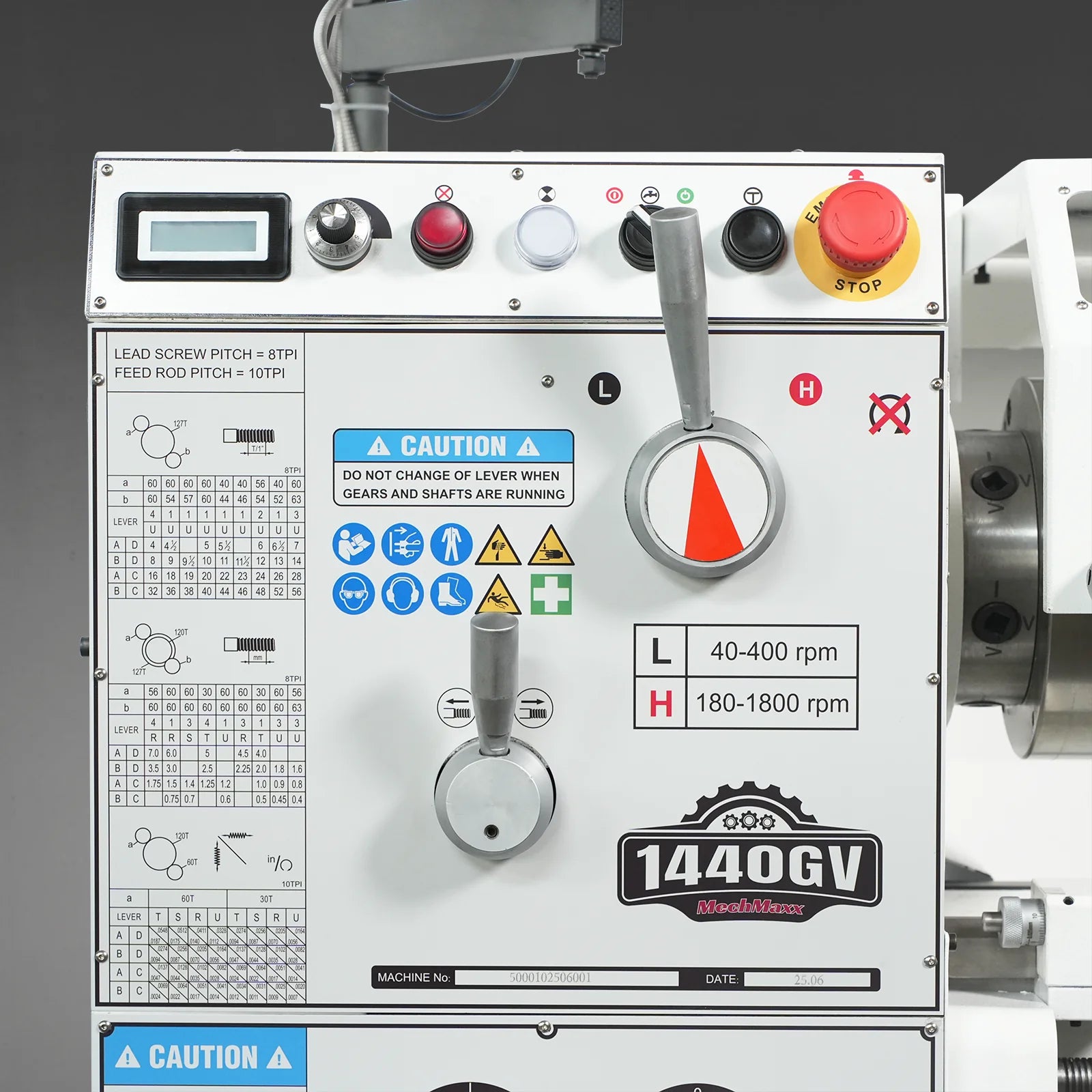

| Spindle Speed Range | 40 – 1800 RPM |

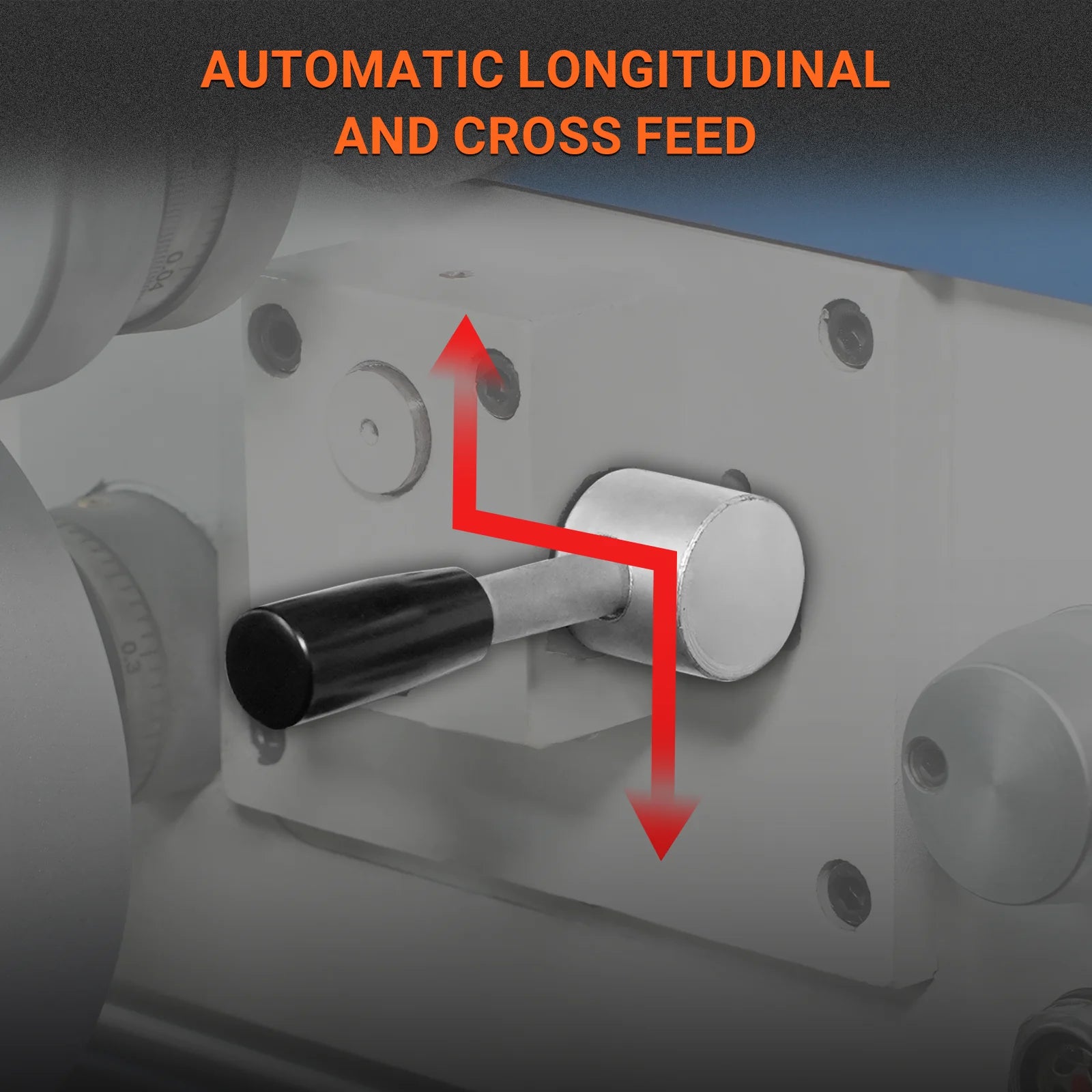

| Longitudinal Feed Rate | 0.002 – 0.046 in/rev (IPR) |
| Cross Feed Rate | 0.0007 – 0.0187 in/rev (IPR) |
| Inch Threads | 4 – 56 TPI |
| Metric Threads | 0.4 – 7.0 mm pitch |
| Machine Footprint (W × D) | 72 × 24 in (1829 × 610 mm) |
| Overall Dimensions (L × W × H) | 76 × 30 × 60 in (1930 × 762 × 1524 mm) |
| Net Weight | 1800 lb (816 kg) |
| Shipping Dimensions | 78 × 48 × 72 in (1981 × 1219 × 1829 mm) |
| Shipping Weight | 1900 lb (861 kg) |
| Liftgate Compatible | Yes |
