Description

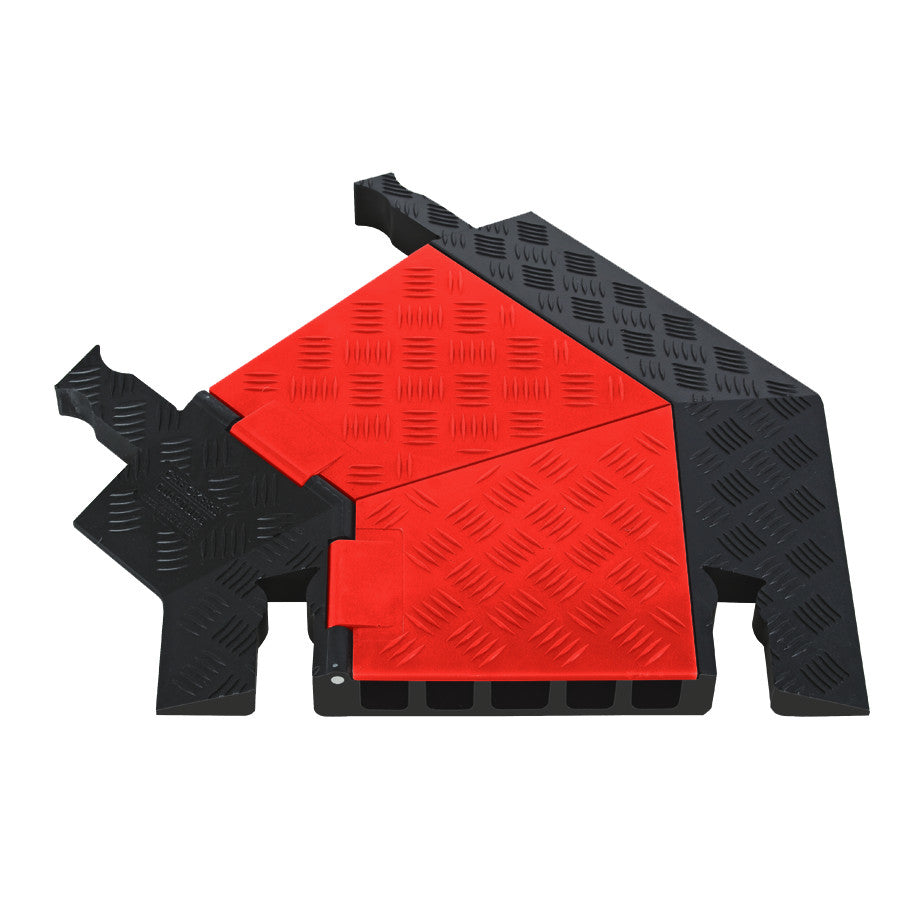

If you need to create a 45-degree turn in your cable protector system, use the 5-Channel General Purpose Guard Dog Left Turn. Offering the same level of durability as a standard 5-channel cable protector, the Left Turn protector is designed with the same hinged lid and all-weather polyurethane construction. With a modular, interlocking design, it's perfect for a wide variety of environments, including amusement parks, entertainment venues, sporting events, and most commercial and industrial applications.
Compatible with Dog Bone Connectors and designed with a 5-bar tread surface for maximum traction, this protector can, like other models of its kind, work with cables and hoses of up to 1.325" in diameter. You can even join this protector with a right turn protector to create a jog.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
Specifications
| Model No | GDT5X125-L-O/B | UPC | 812958004586 | Brand | Checkers Safety™ |
|---|---|---|---|---|---|
| Accessory Type | Left Turns | Color | Orange Lid / Black Base | Quantity Included | 1 |
| Pallet Quantity | 100 | Load Capacity Per Axle | 21000 lbs | Load Capacity Per Tire | 10500 |
| Length (Inches) | 24 | Width (Inches) | 21.75 | Height (Inches) | 2.5 |
| Max Cable Outside Diameter (Inches) | 1.325 | Number of Channels | 5-Channels | Connector Type | Dog Bone Connector |
| Channel Width | 1.339 |
