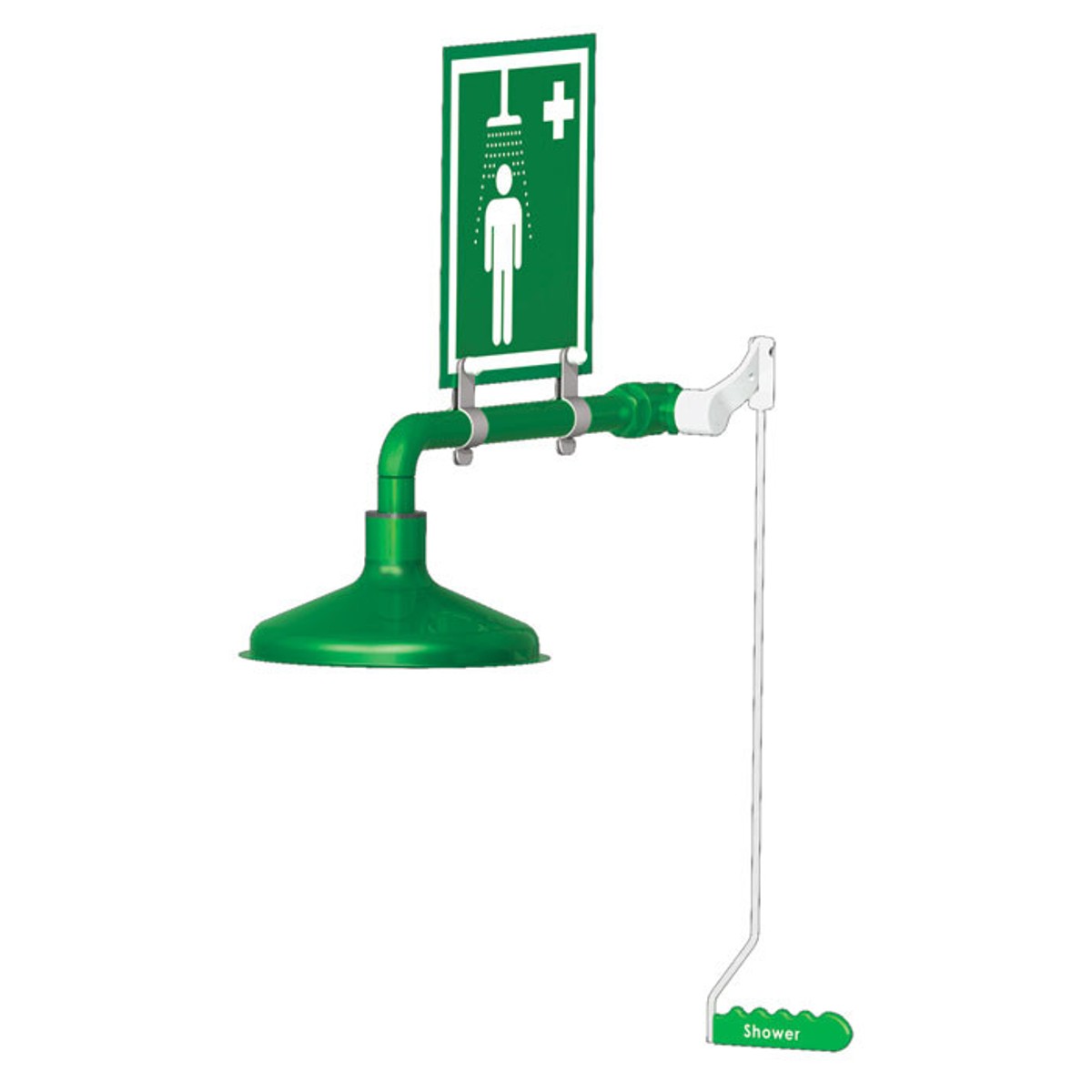

Ideal for laboratories, schools and general light duty indoor use where space is at a premium, this ring main mounted emergency drench shower is suitable for use in applications that do not require an eye wash and are not subject to the possibility of freezing or overheating.
The system features a specially designed valve with low operating torque offering reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Durable, coated stainless steel pull handle with nylon valve connection is easy to grip and activate for immediate water drenching from the shower rose that is designed for high flow rates. Includes an inspection record tag for recording test and service history. Some assembly may be required.
Note: Mounting plate not included.
Additional Specs
| Color: | Green |
| Net Weight, lbs: | 11 |
| Net Weight, kg: | 5 |
| Dimensions, Exterior: | 35.9" H x 13.1" W x 24.4" D |
| Dimensions, Exterior: | 913mm H x 334mm W x 334mm D |
| Height Without Sign, inches: | 25.1 |
| Height Without Sign, mm: | 638 |
| UL Classified to ANSI Z358.1-2014: | Yes |
| Water Inlet Size NPT: | 1 in (F) |
| Minimum Operating Pressure: | 1.5 bar g, 22 PSI |
| Maximum Operating Pressure: | 6 bar g, 87 PSI |
| Water Flow Shower/Body Liters/min: | 76 |
| Water Flow Shower/Body US Gal/min: | 20 |
| Material Specifications: | Rose: Powder coated stainless steel |
| Operating Valve Material: | 316L Stainless |
| Mounting Type: | Ring Main |
| Pipework Material: | Stainless Steel |
| Activation Method: | Pull Handle |
| Rose Diameter, inches: | 11 |
| Rose Diameter, mm: | 280 |
| Minimum Ambient Temperature, °F: | 41 |
| Minimum Ambient Temperature, °C: | 5 |
| Maximum Ambient Temperature, °F: | 95 |
| Maximum Ambient Temperature, °C: | 35 |
