Jet Tools - JVM-836-1 MILL W/DP700 3AX Q-DRO&X&Y-PWF

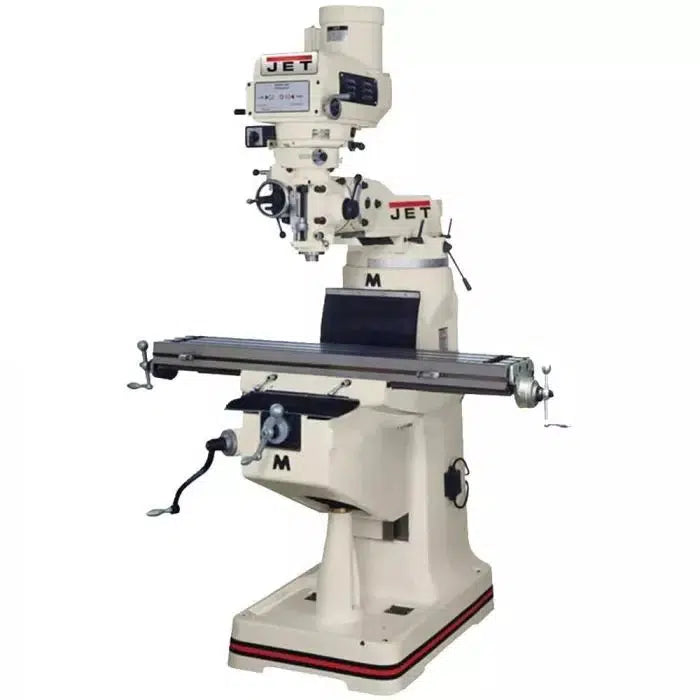

The JTM-1 Mill With 3-Axis Newall DP700 DRO (Quill) With X and Y-Axis Powerfeeds has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading.

JET 691178 Features:

• Precision bored and honed milling head

• Large diameter quill is chromed

• High precision spindle bearings

• Over 10? of front to back ram travel

• Locks on all movable surfaces

• Hardened and ground precision table

• Head tilts left or right

• NEWALL DP700 3-Axis (Quill) DRO-X-Y Powerfeed

Includes:

• 1x JET 691178 JVM-836-1 Mill w/ 3-Axis Newall DP700 DRO (quill) and X and Y-Axis Powerfeeds
• 1x One shot lubrication system
• 1x Way covers
• 1x Draw bar
• 1x Tool box with tools

Specifications:

• Switch Type: Push Button

• Head Tilt (Left Or Right): 90

• Table Material: Cast Iron

• Number Of T-Slots: 3

• Includes Hold Down Foot: No

• Work Light: No

• Motor Size: 1-1/2 HP, 115/230V, 1Ph

• Quill Diameter: 3.38

• Digital Display: Not Required

• X Axis, Longitudinal (in): 0.0

• Table Load Capacity: 500

• Y Axis, Cross (in): 0.0

• T-Slot Width (in): 0.625

• Chuck Style: Keyless

• Variable Speed: Yes

• Color / Finish: See Image

• 360° Swivel: No

• Motor RPM: 1720

• Voltage: 115 V/230 V

• Ram Travel: 13.375

• T-Slot Center Distance: 2.5

• Product Type: Milling Machine

• Power Source: Corded Electric

• Phase: 3

• Horsepower (hp): 1.5

• Manufacturer Warranty: 2 Years
