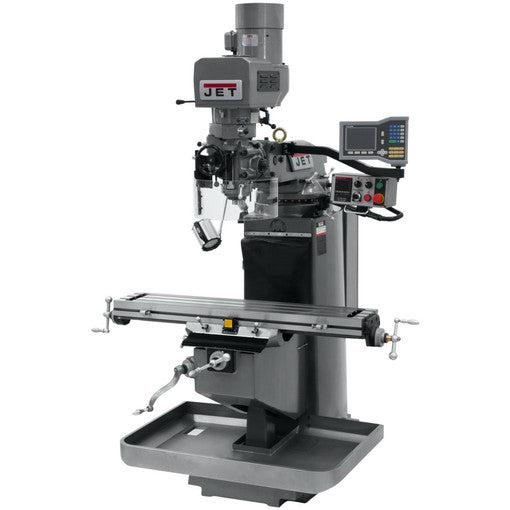

Jet Tools - JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

Jet Tools - JTM-949EVS/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

Regular price
$23,972.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 691500 Features

    • New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
    • Swing away control box houses an e-stop and puts all controls at the operators fingertips
    • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
    • Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
    • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
    • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
    • CSA/CUS Certified
    • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
    • Spindle head is internally cooled extending bearing, belt and motor life
    • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

    Jet 691500 Specifications

    Spindle Travel 5"
    Table Cross Travel 12-5/8"
    T-Slot Centers 2-1/2"
    Min. Distance Spindle to Column 4-3/4"
    Quill Down Feed Rates (IPR) .0015 - .003 - .006
    Work Table Weight Capacity 720 lbs
    Quill Diameter 3-3/8"
    Collet Capacity 1/8 - 7/8
    Overall Dimensions (L x W x H) (In.) 66 x 63 x 86
    Number of Spindle Speeds Variable
    Range of Spindle Speeds 60 - 4,500 RPM
    Head Movement 90° R & L, 45° F & B
    Motor 3 HP, 230V, 3Ph
    Style EVS
    Table Size (L x W) (In.) 9 x 49
    Max. Distance Spindle to Column 18-1/8"
    T-Slots Number and Size 3 and 5/8"
    Travel of Knee 15-3/4"
    Travel of Ram 15-1/4"
    Max Distance Spindle to Table 20-3/4"
    Table Longitudinal Travel 36"
    Table Longitudinal Travel With Powerfeed 30-3/4"
    Saddle Width 11-1/2"
    Column Width 18"
    Inverter Type Delta, B
    Spindle Taper (In. x TPI) R-8

    ;
