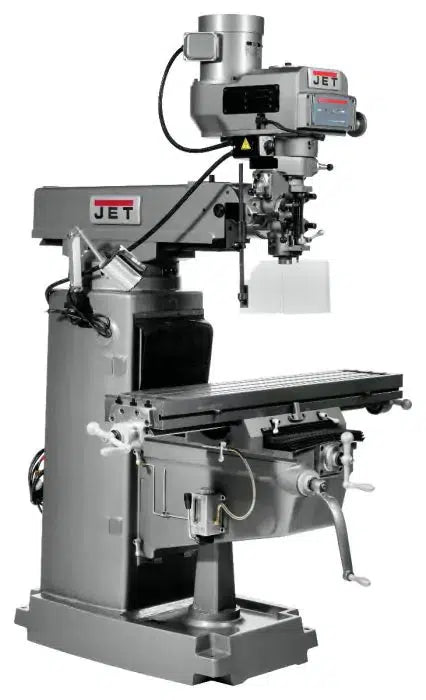

Jet Tools - JTM-1050VS2 Variable Speed Vertical Milling Machine 230/460V 3Ph

Description

The JET JTM-1050VS2 features our proprietary Meehanite® column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

Features:

• JET's Proprietary Certified Meehanite® Column Castings
• Hardened and ground table capable of supporting 840 pounds
• Turcite B on X and Y axis
• Large Spindle guard
• LED work light

• Chrome lead screws on X and Y axis
• Precision bored and honed milling head
• High precision Class 7 spindle bearing
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle break
• Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
• One shot lubrication system
• Easy level feet

Specifications:

• Number of Axis 2598
• Spindle Taper (In. x TPI) R8
• Table Size (L x W) (In.) 10 x 50
• Quill Diameter (In.) 3-3/8
• Range of Spindle Speeds (RPM) 60-500/500-4200
• Quill Down Feed Rates (IPR) .0015 / .003 / .008
• Spindle Travel (In.) 5
• Head Movement (Deg.) 90∘R & L; 45° F & B
• Distance Spindle to Column (Max.) (In.) 27
• Distance Spindle to Column (Min.) (In.) 2-3/4
• Collet Capacity 1/8 - 5/8
• Table Longitudinal Travel (In.) 34-1/4
• Table Cross Travel (In.) 14-3/4
• T-Slots Number and Size (In.) 3 and 5/8
• T-Slot Centers (In.) 2-1/2
• Work Table Weight Capacity (Lbs.) 840
• Travel of Knee (In.) 16-1/8
• Saddle Width (In.) 20
• Column Width (In.) 13
• Motor (HP) 3 HP,230/460V ,3Ph
• Prewired (V.) 230(Surcharge for 460V)
• Overall Dimensions (L x W x H) (In.) 63 x 63 x 89
• Weight (Lbs.) 2466
