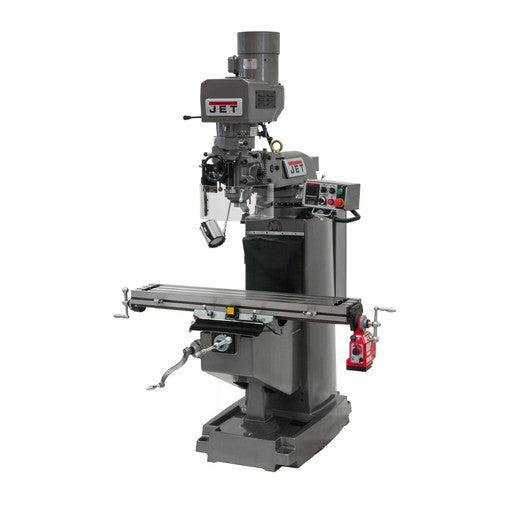

Jet Tools JTM-1050EVS2/230 3X MILL PWR CNC

Jet Tools JTM-1050EVS2/230 3X MILL PWR CNC

Regular price
$72,059.00

See Lower Price in Cart

Quantity must be 1 or more


DESCRIPTION

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Jet 690676 Features

  • CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
  • Features of the ACU-RITE MILLPWR G2 CNC Package
  • Precision Ground Ball Screws eliminate backlash for precice lateral movements
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Handwheels are included for manual operation
  • Features of the ACU-RITE MILLPWR G2 CONTROLLER
  • USB + Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens
  • 12.1" High resolution display (1024 x 768) with 3D graphics

SPECIFICATIONS

Quill Down Feed Rates (IPR) .0015 - .003 - .006
Travel of Knee (In.) 16-1/8
Head Movement (Deg.) 90° R & L, 45° F & B
Motor (HP) 3 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.) 66 x 63 x 87
Spindle Travel (In.) 5
Style (Type) CNC
Spindle Taper (In. x TPI) R-8
Work Table Weight Capacity (Lbs.) 840
CNC Package ACU-RITE MILLPWR® G2
Table Longitudinal Travel (In.) 35-1/3
Table Size (L x W) (In.) 10 x 50
T-Slots Number and Size (In.) 3 and 5/8
Table Cross Travel (In.) 14-3/4
Number of Spindle Speeds Variable
T-Slot Centers (In.) 2-1/2
Range of Spindle Speeds (RPM) 60 - 4,500
Travel of Ram (In.) 15-7/8
Distance Spindle to Column (Max.) (In.) 26-3/4
Distance Spindle to Column (Min.) (In.) 4-3/4
Quill Diameter (In.) 3-3/8
Number of Axis 3
Collet Capacity 1/8 - 7/8
Max Distance Spindle to Table (In.) 20-3/4
Column Width (In.) 20
Saddle Width (In.) 11-1/2
Inverter Type Delta, B
Table Longitudinal Travel With Powerfeed (In.) 29-7/8

;
