Jet Tools - JDP-17, 17" Floorstanding Drill Press, 3/4HP 1PH 115V

Jet Tools - JDP-17, 17" Floorstanding Drill Press, 3/4HP 1PH 115V

Regular price
$1,845.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 716300 Description

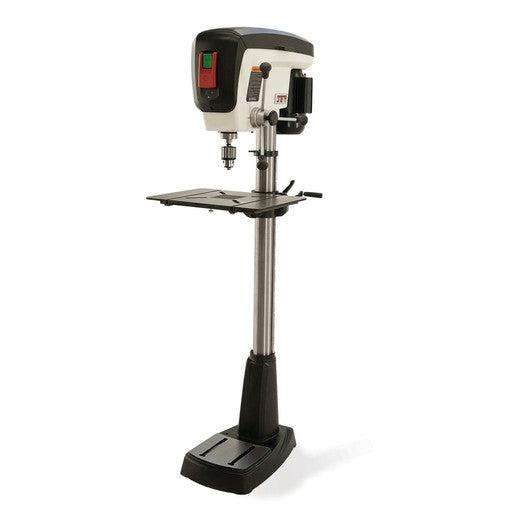

    Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

    Jet 716300 Features

    • Spindle travels a full 5” with one revolution of the handle
    • Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
    • One-handed belt tensioning allows for rapid speed changes
    • Power switch features a safety key and large, paddle-style off button
    • Integrated depth stop makes repetitive drilling quick and easy
    • Xacta-X laser system easily identifies the drill center
    • Long-lasting, built-in LED work light reduces shadows
    • Table edge lip designed to make clamping easy
    • Replaceable MDF table insert
    • Large cast iron base provides stability

    Jet 716300 Specifications

    Motor Power (HP) 3/4
    Number of Spindle Speeds 16
    Chuck Distance to Table (In.) 25-7/8
    Chuck Distance to Base (In.) 42-7/8
    Motor Voltage (V) 115
    Spindle Speed Range (RPM) 210 - 3500
    Spindle Distance to Table (Max.) (In.) 30
    Style (Type) SV_1375591258781
    Table Tilt (Deg.) 90 Left and Right
    Column Diameter (In.) 3-5/32
    Swing (In.) 16-7/8
    Chuck Size (In.) 5/8
    Base Size (In.) 20 x 12-5/8
    Motor Amps 6.8
    Table Size (L x W) (In.) 14 x 19
    Spindle Travel (In.) 5
    Motor Phase (PH) 1
    Recommended Circuit Size (Amps.) 15

    ;
