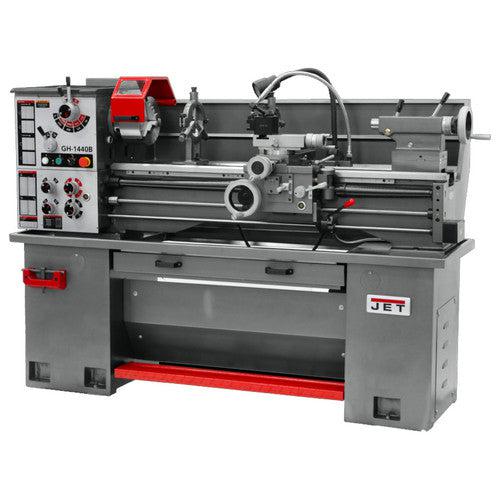

Jet Tools - GH-1440B Geared Head Bench Lathe with ACU-RITE 203 DRO
Jet Tools - GH-1440B Geared Head Bench Lathe with ACU-RITE 203 DRO

Jet Tools - GH-1440B Geared Head Bench Lathe with ACU-RITE 203 DRO

Regular price
$24,477.00

See Lower Price in Cart

Quantity must be 1 or more


Description

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Features:

  • Precision spindle roller bearings
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Cast iron Stand
  • Foot Brake comes standard
  • Emergency Stop within easy reach of the Operator
  • Chuck Guard
  • Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
  • Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use
  • Enclosed gearbox design provides smooth, quiet operation
  • Gap bed section provided for larger diameter work
  • Adjustable gibs are incorporated in the carriage & slideways
  • Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
  • Compound and cross slide have backlash adjustment
  • Tailstock may be offset for turning tapers and include and inch/metric graduated quill
  • Spindle Spider available for ease of turning Gun barrels
  • STANDARD ACCESSORIES
  • 8" 3-Jaw Chuck
  • 8" 4-Jaw Chuck
  • Steady Rest with Roller Bearings
  • Follow Rest
  • Quick Change Toolpost
  • 5pc Set of Holders
  • LED Work Lamp
  • MT3 Live Center
  • MT-5/3 Sleeve

Specifications:

Item Number 323440
Model GH-1440B
Digital Readout ACU-RITE 203
Swing Over Bed 14"
Swing Over Cross Slide 8"
Swing Through Gap 20"
Length of Gap 8"
Distance Between Centers 36-7/8"
Spindle Bore 2"
Spindle Mount D1-5
Number of Spindle Speeds 8
Range of Spindle Speeds (RPM) 70 - 1900
Spindle Taper with Sleeve MT6
Number of Longitudinal and Cross Feed Rates 32/32
Range of Longitudinal Feeds (IPR) 0.002 - 0.0548
Range of Cross Feeds (IPR) 0.007 - 0.0187
Number of Inch Threads 34
Range of Inch Threads (TPI) 4-56
Number of Metric Threads 26
Range of Metric Threads 0.4 - 7
Max Tool Size 4/5" x 4/5"
Compound Slide Travel 3-1/2"
Cross Slide Travel 7"
Carriage Travel 37-2/5"
Tailstock Spindle Travel 4"
Taper in Tailstock Spindle MT4
Follow Rest Capacity 0.31 - 2.16
Steady Rest Capacity 0.31 - 2.95
Width of Bed 7.32"
Motor (HP) 2 HP, 230V, Single Phase
Prewired (V.) 230V
Overall Dimensions (L x W x H) 76-13/32" x 29-29/32" x 59-13/16"
Weight 1753 lbs.

;
