Jet Tools - EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO and X-Axis JET Powerfeed

Details

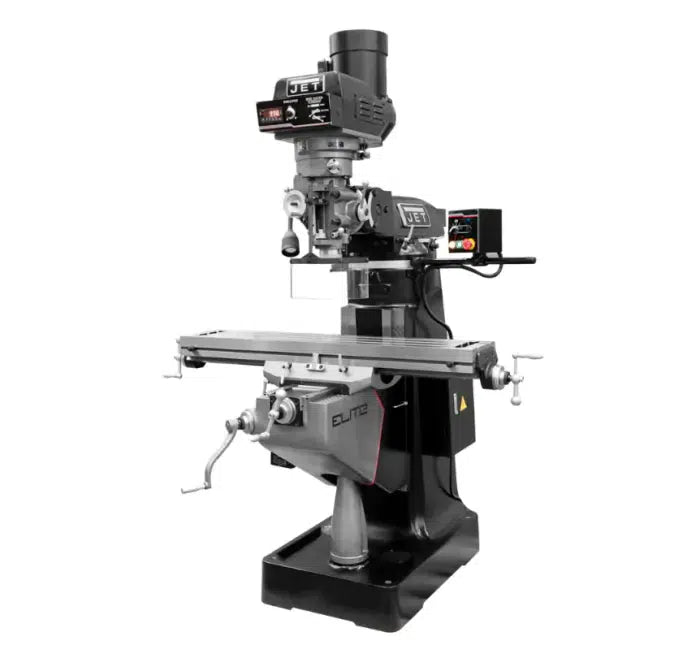

894324, Jet EVS-949 Mill with 3-Axis ACU-RITE 203 (Knee) DRO and X-Axis Powerfeed

Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.

Includes Acu-Rite 203 DRO Knee and X-Axis 350194

Features:

• Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012"
• Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
• Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
• The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
• Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
• The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
• A patented vari-disc key provides up to ten times the wear resistance than aluminum or brass keys
• Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
• Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
• Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials
• Every thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is automatically lubricated
• Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
• Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
• The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups
• The mounted control box houses major mill functions as well as an emergency stop button
• For added safety, the ETM-949EVS Mill follows strict guidelines and electrical requirements to be certified by CSA Group
• Standard Equipment
• Spindle Safety Guard
• Halogen Machine Lamp
• Dual Locks On All Surfaces

Specifications:

• Powerfeed   X-Axis
• Digital Readout   Acu-Rite 203 Knee
• Table Size (L x W) (In.)   9 x 49
• Spindle Taper (In. x TPI)   R-8
• Quill Diameter (In.)   3-3/8
• Number of Spindle Speeds   Electronic Variable
• Range of Spindle Speeds (RPM)   60 - 5,000
• Quill Down Feed Rates (IPR)   0.0015 - 0.003 - 0.006
• Spindle Travel (In.)   5
• Head Movement (Deg.)   90° R & L 45° F & B
• Max Distance Spindle to Table (In.)   18-3/4
• Distance Spindle to Column (Max.) (In.)   21-2/5
• Distance Spindle to Column (Min.) (In.)   6-1/2
• Collet Capacity   1/8 - 7/8
• Table Longitudinal Travel (In.)   36
• Table Cross Travel (In.)   12
• T-Slots Number and Size (In.)   3 and 5/8
• T-Slot Centers (In.)   2-1/2
• Work Table Weight Capacity (Lbs.)   550
• Travel of Knee (In.)   16
• Travel of Ram (In.)   14
• Motor (HP)   3 HP, 230V, 3 Ph
• Amperage Draw @ 230V 3Ph   18
• Prewired (V.)   230
• Overall Dimensions (L x W x H) (In.)   68 x 63 x 84
• Weight (Lbs.)   2,300
• Style (Type)   Variable Speed

Red Assurance 2-year Warranty:

JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
