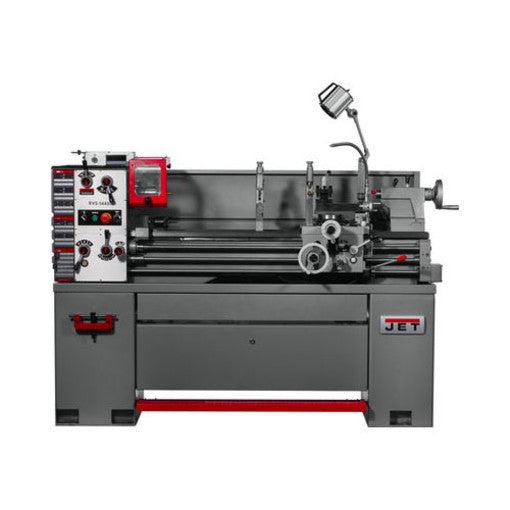

Jet Tools - EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer
Jet Tools - EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer
Jet Tools - EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer

Jet Tools - EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer

Regular price
$29,707.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 311446 Description

    The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPMs

    Jet 311446 Includes

    • (1) EVS Lathe with Acu-Rite 203 DRO and Collet Closer, 3HP

    Jet 311446 Features

    • V-way bed design is induction hardened and ground
    • Splined, not keyed, shafts are utilized
    • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
    • Independent leadscrew and feed rod
    • Adjustable gibs are incorporated in the carriage and slideways
    • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
    • Meehanite castings retain their tolerance and remain rigid through many years of machining
    • Safety on/off switch
    • Emergency Stop within easy reach of the Operator
    • Electronic Chuck Key Docking Station
    • Chuck Guard
    • Foot Brake
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 220-2000 RPM
    • LED RPM readout allows for precise turning speeds
    • Spindle actuation control is apron mounted
    • Gap bed section provided for larger diameter work
    • Compound and cross slide have backlash elimination
    • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill

    Jet 311446 Specifications

    Accessory 1 203 DRO
    Accessory 2 Collet Closer
    Swing Over Bed (In.) 14
    Swing Over Cross Slide (In.) 9-1/16
    Length of Gap (In.) 9-1/4
    Distance Between Centers (In.) 40
    Spindle Bore (In.) 1-1/2
    Spindle Mount D1-4
    Number of Spindle Speeds Variable
    Range of Spindle Speeds (RPM) 40-2000
    Spindle Taper with Sleeve MT-5
    Number of Longitudinal and Cross Feed Rates 25
    Range of Longitudinal Feeds (IPR) 0.0016-0.0460
    Range of Cross Feeds (IPR) 25
    Number of Inch Threads 34
    Range of Inch Threads (TPI) 2-56
    Number of Metric Threads 34
    Range of Metric Threads 0.5-12
    Max Tool Size (In.) 3/4 x 3/4
    Compound Slide Travel (In.) 3-1/2

    ;
