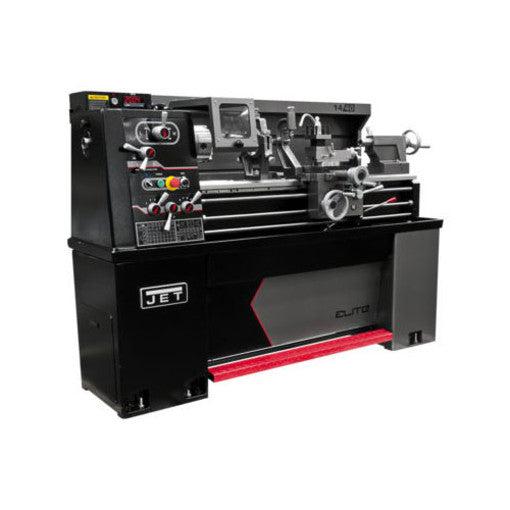

Jet Tools - E-1440VS  With Newall DP700 DRO

Jet Tools - E-1440VS With Newall DP700 DRO

Regular price
$33,138.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 892469 Description

    EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!

    Jet 892469 Includes

    • (1) E-1440VS with Newall DP700 DRO

    Jet 892469 Features

    • Electromagnetic assisted foot brake for rapid braking
    • Inverter drive system provides infinitely variable spindle speeds
    • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
    • Chuck guards are standard equipment on all ELITE lathes for increased safety
    • Front facing chip pan allows easy chip removal from the front of the machine
    • 1-1/2" Spindle Bore
    • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
    • Hardened and ground gears in headstock reduce vibration and deflection
    • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
    • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant

    Jet 892469 Specifications

    SAP Height 60
    SAP Length 77
    SAP Gross Weight 1940
    SAP Net Weight 1653
    SAP Volume 117.639
    SAP Width 44
    Motor (HP) 3 HP, 230V, 3 Ph
    Weight 1653 lbs
    Follow Rest Capacity 1/4" - 2-3/8"
    Swing Through Gap 20"
    Overall Dimensions (L x W x H) 77" x 30" x 58"
    Range of Cross Feeds (IPR) 0.0003 - 0.01
    Steady Rest Capacity 1/4" - 2-3/4"
    Spindle Bore 1-1/2"
    Drive EVS
    Range of Inch Threads (TPI) 4 - 112
    Digital Readout Newall DP700
    Range of Spindle Speeds (RPM) 0 - 2,200
    Spindle Taper with Sleeve MT-5
    Number of Longitudinal and Cross Feed Rates 80

    ;
