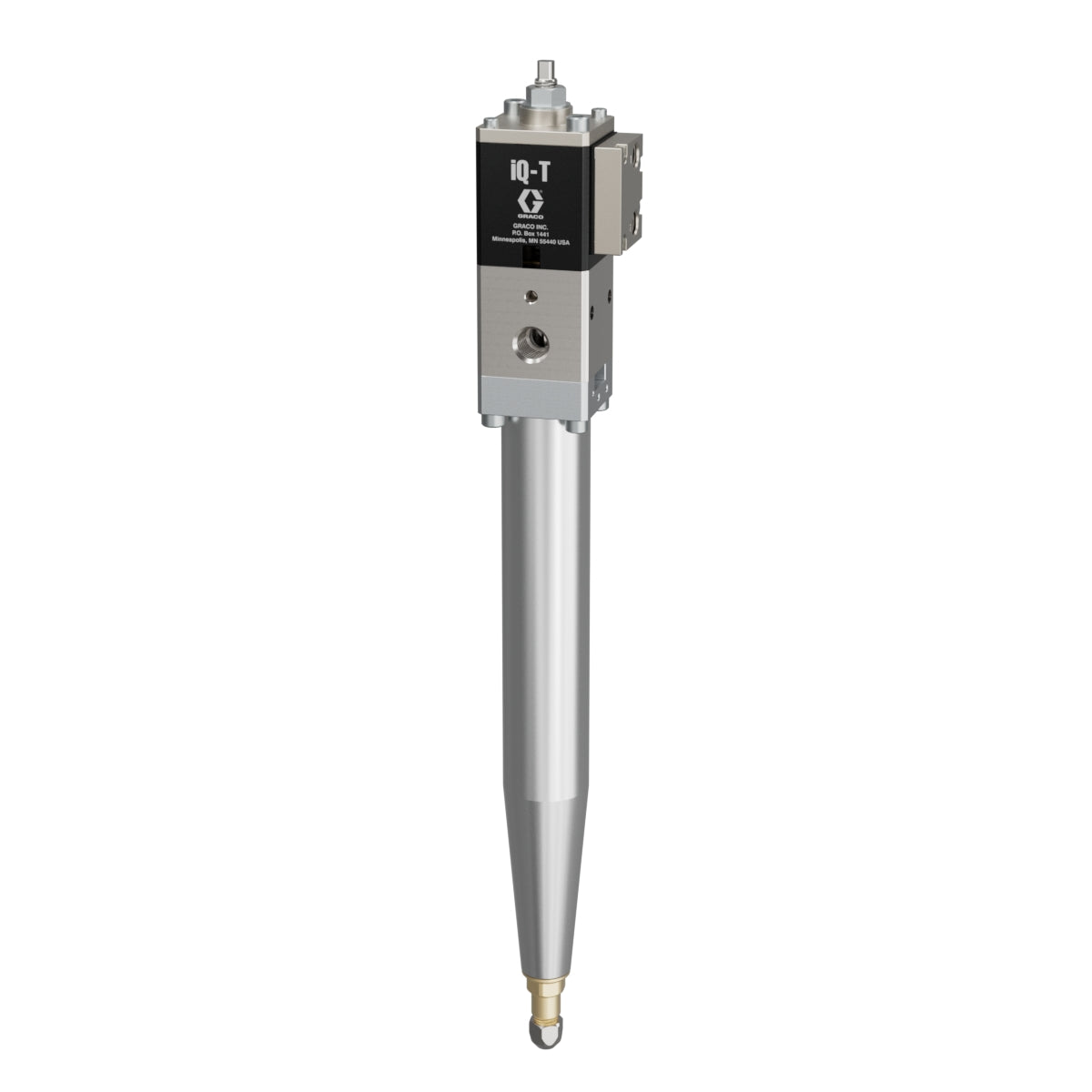

The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
Features
- Maximize dispense time while minimizing maintenance costs and effort
- Delivers precise, consistent dispensing with clean starts and stops
- Ideal for low to high viscosity materials
- Wear-resistant seals and hardened components for long life
- Easy repeatable mounting for robotic and automated applications.
- 200mm nozzle is compatible with 200mm focal length vision systems
- For dispensing flexibility there is a large selection of tip sizes and 3 nozzle extension lengths.
Specifications
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Tip-Seal |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Remote Mount Solenoid |
| Nozzle Size (in) | 0.051 |
| Outlet Block Length (in) | 7.9 |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Type | Dispense Valve |
| Weight (lb) | 2.0 |
| Wetted Material | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Applicator Type | Tip-Seal |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Gun Activation | Automatic |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Air Pressure (bar) | 8.3 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (bar) | 276 |
| Maximum Fluid Pressure (psi) | 4000 |
| Mount Location | Remote Mount Solenoid |
| Nozzle Size (mm) | 1.3 |
| Outlet Block Length (mm) | 200 |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Type | Dispense Valve |
| Weight (kg) | 0.9 |
| Wetted Material | Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel |
