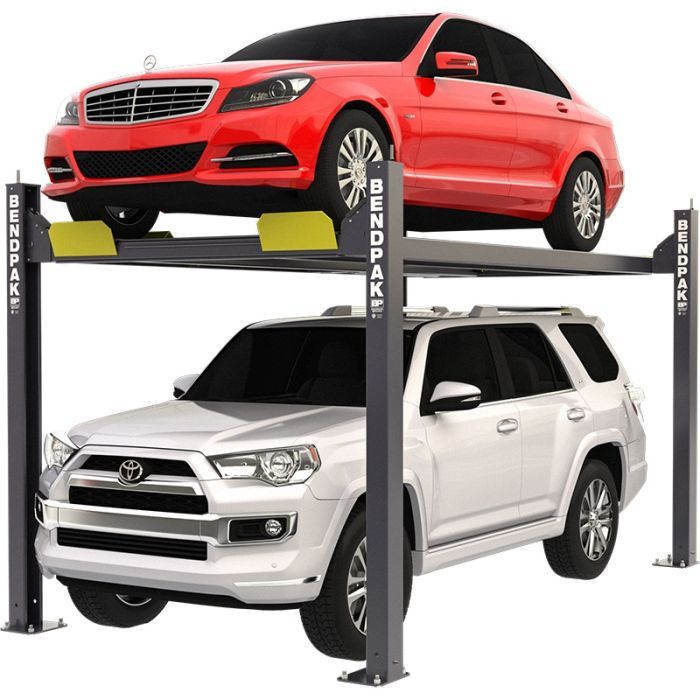

HD-7P 7,000-lb. Capacity Narrow Car Lift High Rise

Specifications HD-7P

​

• 7,000-lb. maximum lifting capacity
• High lift with short runways
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Internal anti-sway slider blocks in each column
• Oversized self-lubricating cable rollers
• High-speed lifting
• Features heavy-duty 3/8" aircraft cable
• Rugged 1.25" roller axles
• Multi-position safety locks in each column
• Adjustable lock ladders
• Push-button pneumatic safety release
• Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
Critical Clearance Dimensions With Lift Parked On Lock

A - Min. Runway Height:

5” (127 mm)

B - Max. Rise:

82” (2,083 mm)

C - Max. Lifting Height:

86.5” (2,197 mm)

D - Overall Width:

100.25” (2,546 mm)

E - Outside Length:

174” (4,420 mm)

F - Overall Length:

200.5” (5,093 mm)

G - Height of Columns:

100” (2,540 mm)

H - Width Between Columns:

90.25” (2,292 mm)

I - Drive-Thru Clearance:

76.5" (1,943 mm)

J - Runway Width:

19" (483 mm)

K - Length of Runways:

158.25" (4,020 mm)

L - Width Between Runways:

34.5" (876 mm)

M - Runway Centerline:

56.5" (1,435 mm)

N - Outside Edge of Runways:

75.5" (1,918 mm)

Time to Full Rise:

35 seconds

Locking Positions:

17

Lock Spacing:

Every 4" (102 mm)

Motor:

220 VAC / 60 Hz / 1 Ph

Shipping Weight:

1,718 lbs. (779 kg)

Shipping Dimensions:

167'' x 22'' x 28'' (4,242 mm x 558 mm x 711 mm)
