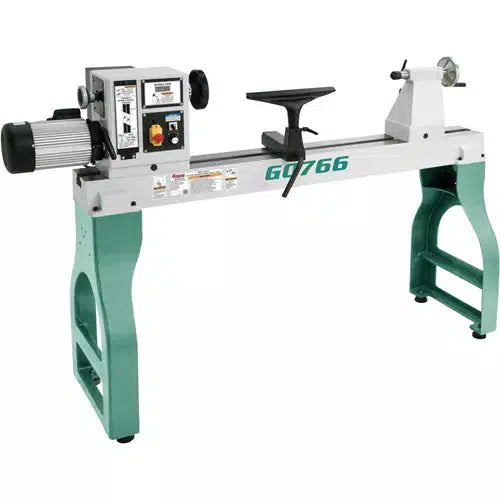

The G0766 22" x 42" Variable-Speed Wood Lathe is for serious those who want to turn large bowls, furniture pieces and other large-diameter projects.
With 22" of swing, a heavy-duty 1-1/4" x 8 TPI RH spindle, electronic variable speed control and a 3 HP, 3-phase motor that runs off single-phase power using a variable-frequency drive, this lathe has plenty of clearance and torque to easily rough out big projects at low speeds.
The heavy-duty cast-iron bed and stand make this lathe extremely stable and the headstock can be positioned anywhere along the bed, giving you a wide range of control and flexibility with your projects.
Like all Grizzly lathes, the G0766 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0766 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to- read manual makes it easier to assemble and maintain your lathe.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
ETL certified
SPECIFICATIONS:
Motor: 3 HP, 240V, 3-phase, 8A
Required power supply: 240V, single-phase, 20A
Swing over bed: 22"
Swing over tool rest base: 18"
Distance between centers: 42"
Spindle speed: Variable, 100–3200 RPM
Spindle threads: 1-1/4" x 8 TPI RH
Spindle taper: MT#2
Tailstock taper: MT#2
Tool rest width: 14"
Tool rest post diameter: 1"
Overall dimensions: 81" x W 23" D x 49-1/2" H
Approximate shipping weight: 611 lbs.
FEATURES:
100–1200 RPM Low-speed range
330–3200 RPM High-speed range
Digital readout for spindle RPM
Headstock positions anywhere along the bed
Single-phase frequency drive provides 3-phase variable-speed control
Additional torque without requiring a 3-phase power supply
10° spindle indexing
Tailstock, headstock, and tool rest support have lever-action cam locks for quick positioning
Forward/reverse spindle control
4-1/4" tailstock barrel travel
Includes spur center, cupped live center, knock-out tool, tool rest, 6" faceplate and indexing pin
