Coxreels® EZ-SH-DEF Reels — EZ-SH DEF Series are equipped with a stainless steel external full-flow swivel and chemical resistant Viton® seals to provide a safe, reliable Diesel Exhaust Fluid (DEF) dispensing solution. The swivel is easy to access for simple seal maintenance and fast DEF dispenser hose installation. Heavy-duty single pedestal reel outfitted with Coxreels® original Super Hub™ dual axle support systems to increase stability and reduce vibration during operation, making these reels the perfect DEF handling solutions for either stationary or rugged mobile applications.

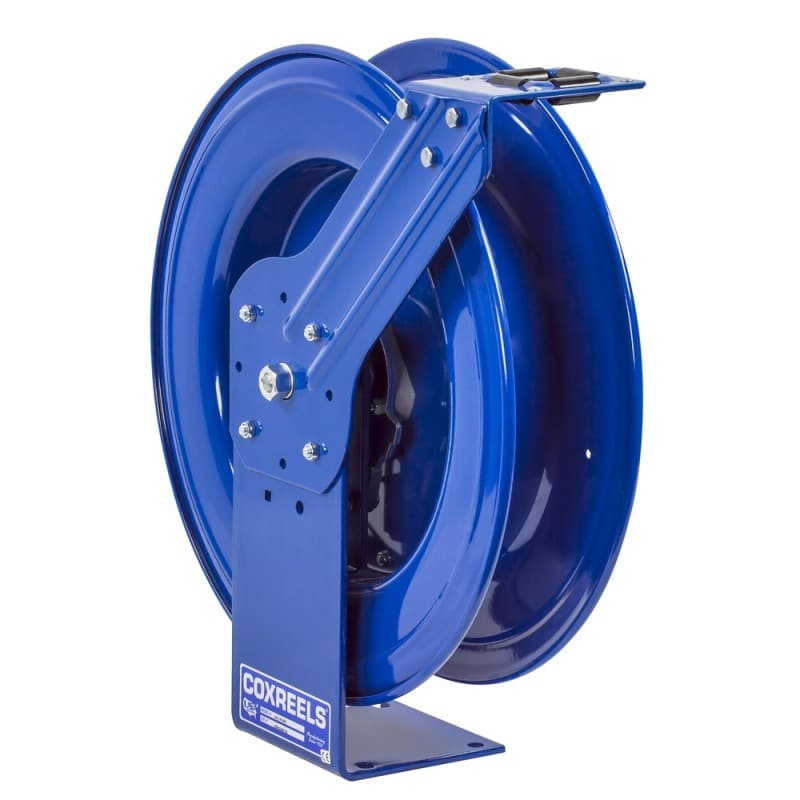

Model EZ-SHL-525-BBX: DEF Heavy Duty Spring Rewind Hose Reel, EZ-Coil safety system equipped, 3/4" I.D., 25' DEF hose, low pressure, 300 PSI
FEATURES
- Non-corrosive stainless steel 90° full flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- SWIVEL - Non-corrosive stainless steel 90˚ full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
| MODEL | EZ-SHL-525-BBX |
| REEL TYPE | EZ-Coil Spring Driven |
| I.D | 3/4" |
| O.D | 1 1/8" |
| LENGTH | 25' |
| HOSE | No |
| MAX PSI | 300 |
| SHIP WEIGHT (LBS) | 45 |
| OVERALL DIMENSIONS (W) (H) (L) | 9.38" (W) 25.5" (H) 19.5" (L) |
| MOUNTING PATTERN (M) (N) | 4" (M) 5" (N) |
| BASE (X) (Y) | 6" (X) 6" (Y) |
