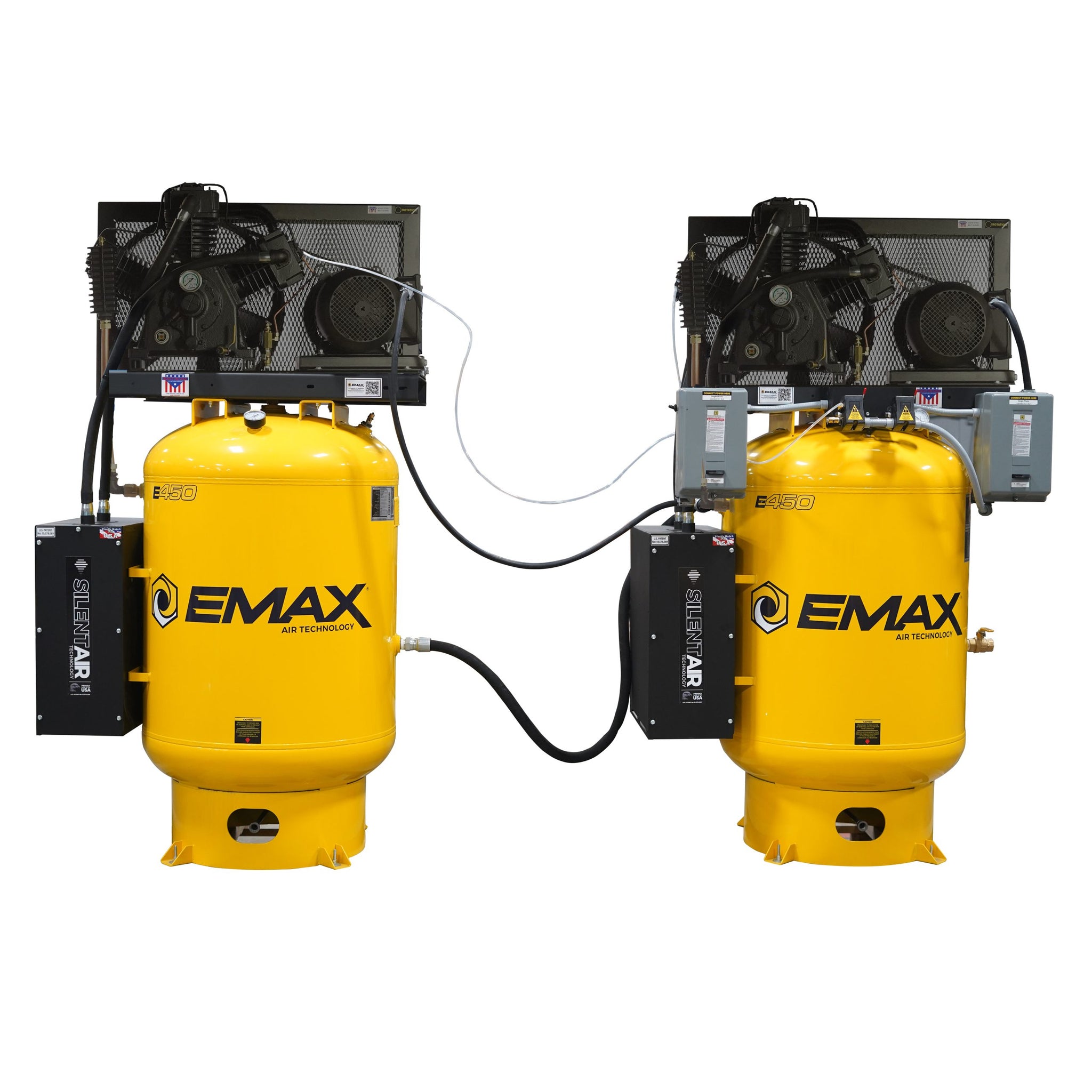

The EMAX ESPR15A120Y3-208 is an alternating air system built from (2) SOLO Silent Air™ compressors, rated at 15 HP with a V4 pump and delivering 114 CFM. It pairs a 120-gallon vertical tank with 3-phase, 208V electric power and radiator aftercoolers. It suits facilities with 3-phase 208V service that need a high-output, two-compressor piston air system.
Alternating Silent Air™ System
Configuration: (2) SOLO Silent Air™ compressors set up in an alternating arrangement.
Output: 15 HP V4 design rated at 114 CFM.
Compressor Type: Piston compressor with an electric drive.
Two-Stage Pump
Pump Model: APP3Y2062TP, a 2-stage pressure pump.
Pump Riser: Included.
Estimated Pump Life: 60,000 hours.
Motor, Drive & Controls
Motor Type: TEFC (totally enclosed, fan-cooled) motor.
Power: 208V (+/- 10%), 3-phase.
Belt Drive: 4-belt drive with a belt tensioner.
Mag Starter: Included.
Cooling, Tank & Connections

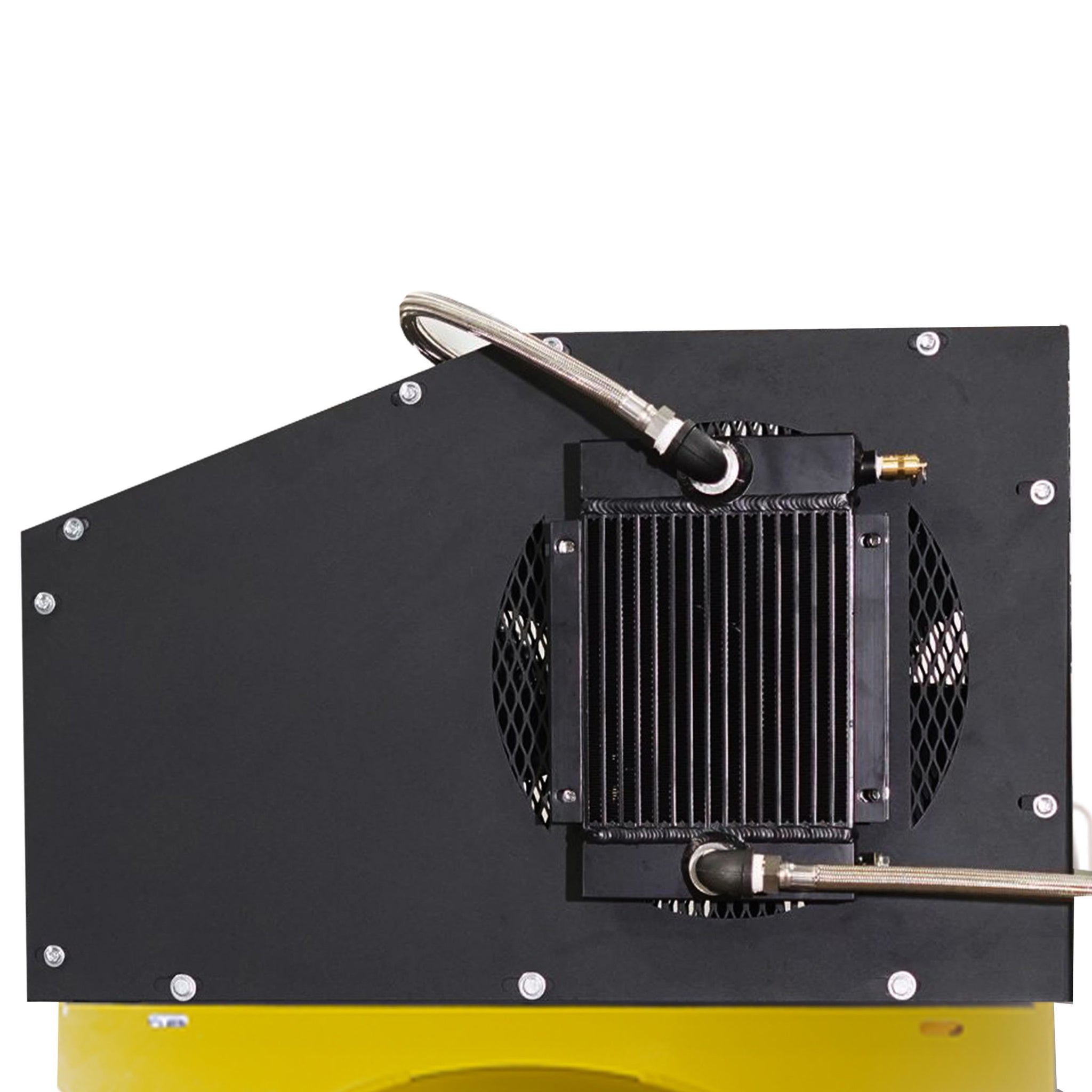

Radiator Aftercoolers: Radiator-style aftercooling is included.
Tank: 120-gallon vertical tank.
Tank Drain: Automatic.
Outlet Size: 1".
Need help confirming this EMAX alternating system fits your air demand and electrical service? Call Pittsburgh Spray Equipment at 888-714-1410 for sizing help.
Specifications — ESPR15A120Y3-208
| HP | 15 |
| Tank Size | 120 |
| Voltage +/- 10% | 208 |
| Phase | 3 |
| Drive Type | Electric |
| Tank Drain | Automatic |
| Pump Type | Pressure |
| CFM | 114.00 |
| Silent Air | Y |
| Smart Air | N |
| Compressor Type | Piston |
| Motor Type | TEFC |
| Tank Orientation | Vertical |
| Outlet Size | 1" |
| Belt Count | 4 |
| Pump Stage | 2 |
| Pump Model | APP3Y2062TP |
| Pump Riser | Y |
| Belt Tensioner | Y |
| Mag Starter | Y |
| Radiator | Y |
| Estimated Pump Life (Hours) | 60000.00 |
