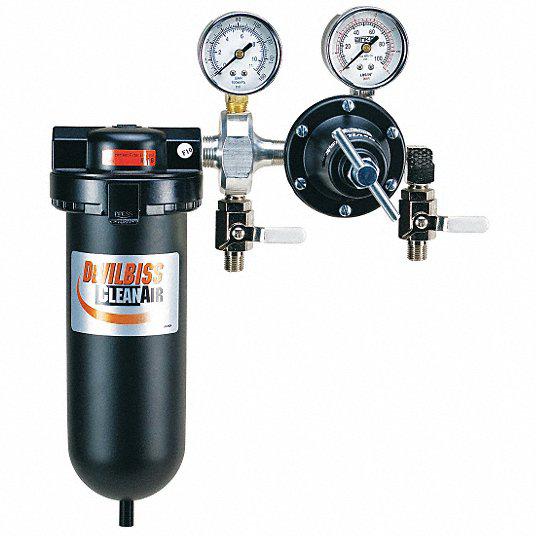

Devilbiss HFRL-508 60 CFM Filter-Regulator

Devilbiss HFRL-508 60 CFM Filter-Regulator

Regular price
$388.00
Sale price
$388.00
Quantity must be 1 or more


DeVilbiss HFRL-508 Clean Air / Air Control 5 Micron Filtering Capacity 60 CFM Flow Rate Inlet Port Size: 1/2″ NPT(F) One Regulator & Gauge Line Pressure Guage One Regulated Outlet One Non-regulated Outlet

Air Connections Model HFRL-508:
Regulated
(1) 1/4" NPS(M)
(1) Plugged Port

Non-Regulated
(1) 1/4" NPS(M)

Part list

1HAF-502 Air Filter, 100 CFM, See Fig.2 1
2 HAF-21 Cross Manifold 1
3 GA-288 Air Gauge, 0-160 psi (main line) 1
4 83-2727 Air Gauge, 0-100 psi (regulated) 1
5 HAR-507 Air Regulator (See Fig. 3) 1
6 — 1/4" Street Elbow, 90° 1
7 VA-542 Ball Valve 2

Technical Specifications
Item - Filter-Regulators Filter-Regulator
For Removal Of Oil Aerosols, Particles, Water
Connection Size - Air Treatment 1/2 in NPT
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 50 cfm
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Plastic
Size - Air Treatment Standard
Bowl Size - Air Treatment 17.0 oz
Max. Temp. 150 Degrees F
Gauge Port Size 1/4 in NPT
Adjustment Knob Plastic
Drain Type Automatic
Overall Height 12 in
Overall Width 10 in
Includes (1) Air Regulator

;
