BendPak PL6000DCX Wide Two-Post Parking Lift - 6,000-lbs. Capacity - Shared Columns (5175625)

More Room to Park the Vehicles People Actually Drive

The BendPak PL6000DCX Wide Two-Post Parking Lift gives facilities a space-saving way to stack SUVs, sedans, sports cars, pickups, vans, and light trucks with more platform room than a standard parking solution. With a 6,000-lb. capacity and a wide shared-column layout, it is designed for both long-term storage above and more frequent vehicle access below.

Built for real estate developers, architects, engineers, automotive dealers, commercial parking operators, and dense vehicle storage facilities, the PL6000DCX helps maximize usable parking without turning every vehicle space into a construction project. It is designed for indoor and outdoor locations and fits the kind of mixed vehicle environments modern parking systems have to handle.

Shared-Column Parking for Higher Density and Lower Cost

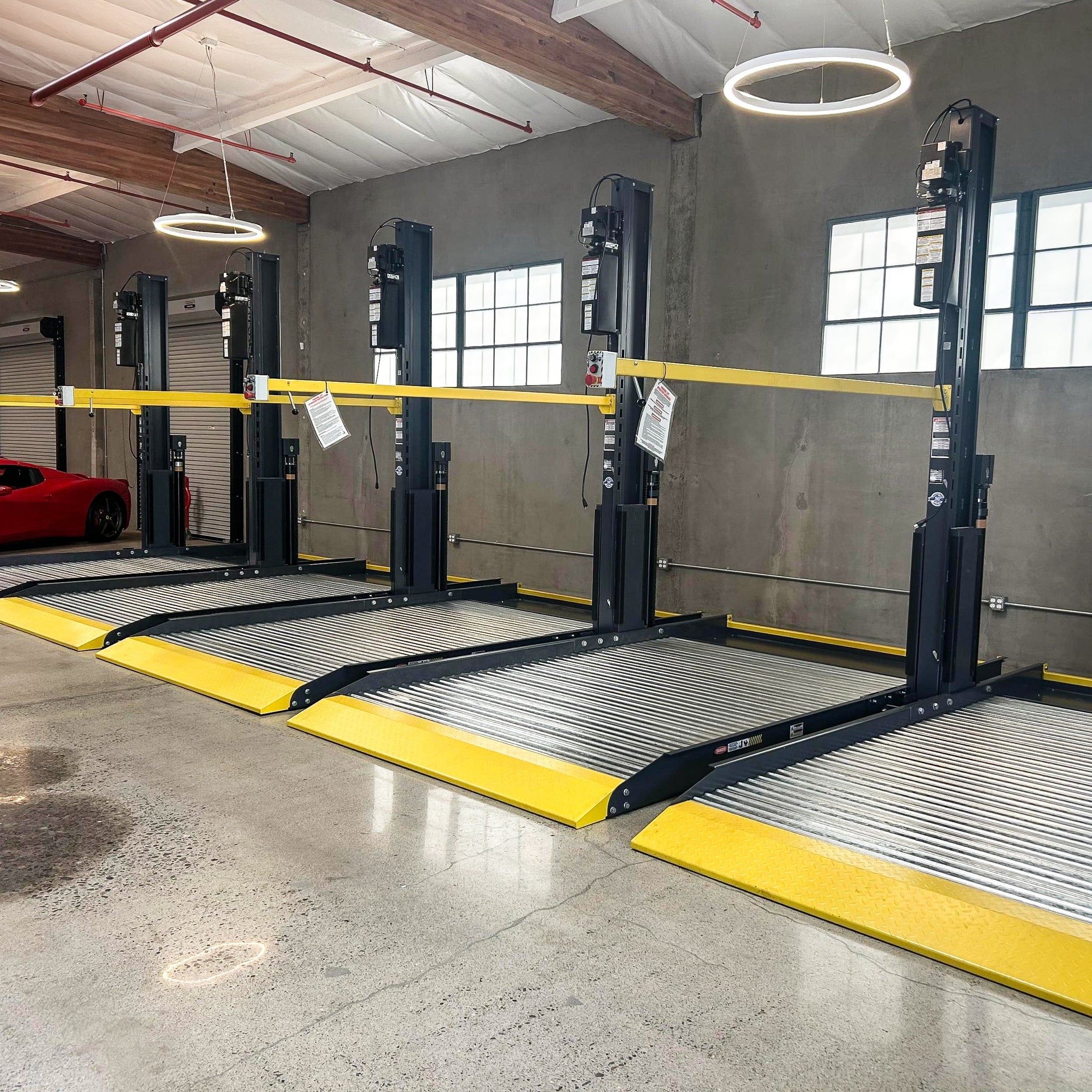

The PL6000DCX uses a ganged column design that allows multiple installations in minimum space. Shared columns help reduce duplicated structure when lifts are installed side by side, making it easier to scale parking capacity inside a limited footprint.

For commercial parking operators and vehicle inventory facilities, that shared-column advantage can make a major difference. It helps convert limited real estate into more usable storage without sacrificing access to the lower vehicle or forcing a separate lift structure for every space.

Wide Platform Design with Smooth Hydraulic Operation

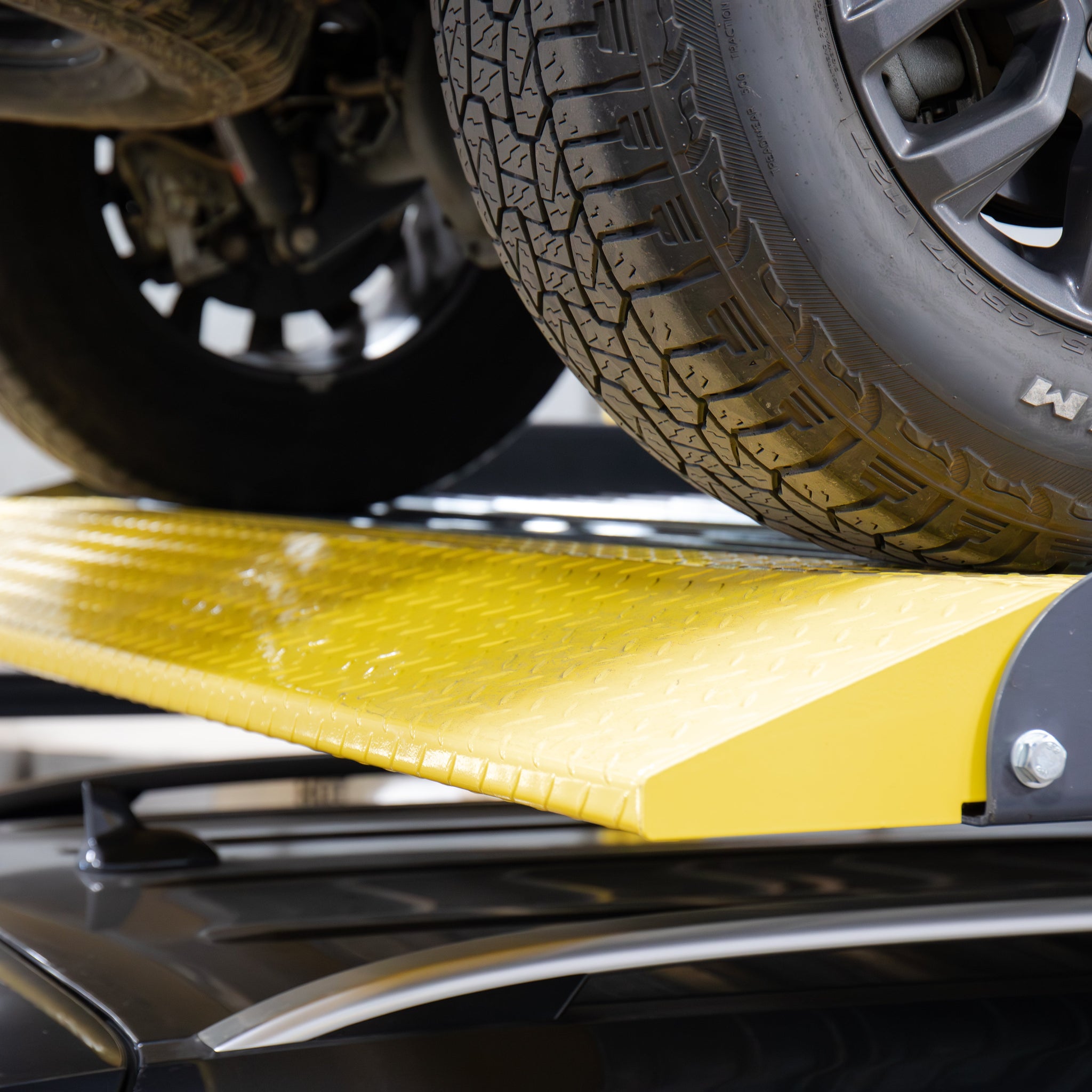

The PL6000DCX features a commercial-grade galvanized and corrugated anti-slip platform with full-width channel-locked center panels that help protect the lower vehicle. The wide deck platform accommodates pickups, vans, and cars, while adjustable platform stop heights help match different vehicle sizes and ceiling heights.

A single dual-telescoping direct-drive cylinder supports smooth hydraulic operation while avoiding complex screw mechanisms. Gravity-driven lowering helps reduce electric motor consumption during descent, lowering operating costs in facilities where parking lifts see regular use.

Controlled Access, Locking Protection, and Built-In Safety Features

The PL6000DCX includes manual safety locks to hold the platform securely in place, electric key-switch control for security, automatic shut-off when the operator releases the switch, manual safety lock release, hydraulic overload protection, and maintenance-free composite carriage bearings.

These systems are designed to keep parking lift operation controlled and dependable in real-world use. When one vehicle is parked above another, safety and platform control are not bonus features. They are the reason the lift belongs in serious parking applications.

Recommended Add-ons

Features

• 6,000-lb. lifting capacity
• Wide two-post parking lift with shared columns
• Ganged column design for multiple installations in minimum space
• Commercial-grade design and construction
• Galvanized and corrugated anti-slip platform
• Freestanding design
• Overhead power unit for smooth, quiet hydraulic operation
• Designed for installation on concrete surfaces
• Platform can stop at different heights
• Full-width channel-locked center panels help protect lower vehicle
• Wide deck platform accommodates pickups, vans, and cars
• Single dual-telescoping direct-drive cylinder
• Manual safety locks hold platform securely in place
• Maintenance-free composite carriage bearings
• Electric key switch with automatic shut-off

Specifications

Manuals & Downloads

• BendPak PL 6000DCX Wide Two Post Parking Lift 5175625 Brochure
• BendPak PL6000DC DCX Parking Lift Installation Operation Manual
• BendPak Limited Warranty All Products
