Extended Four-Post Runway Space for Semi-Trucks and Fleets

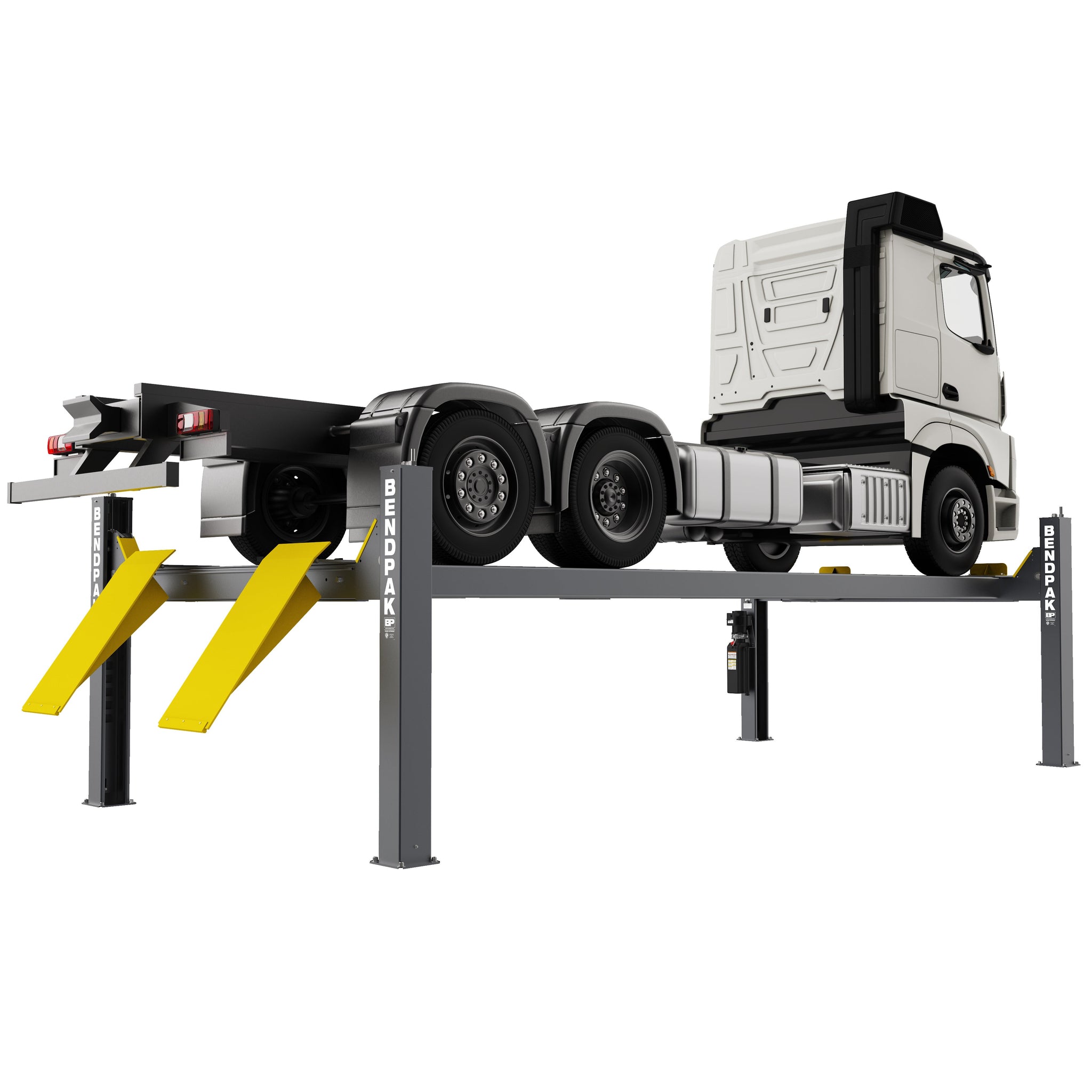

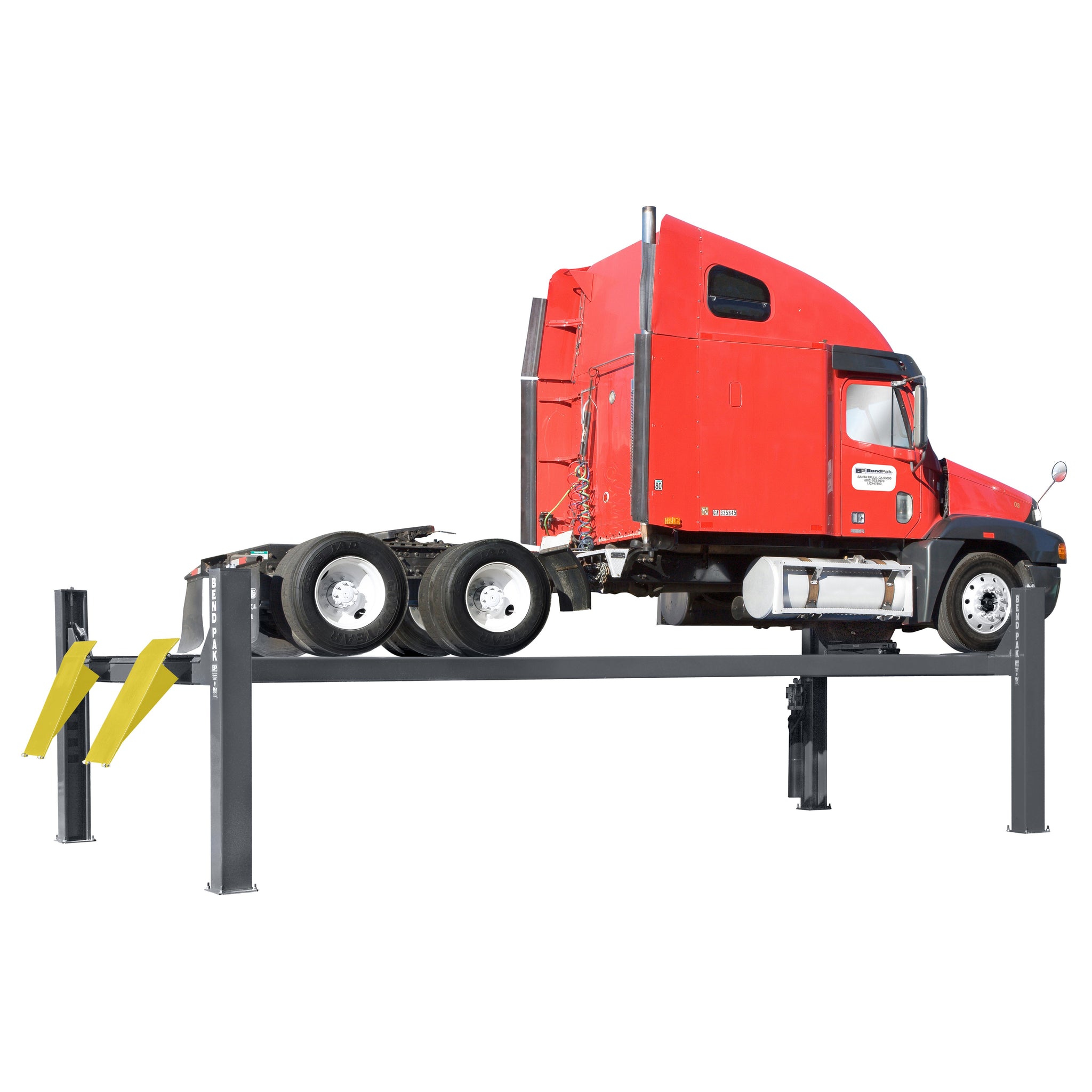

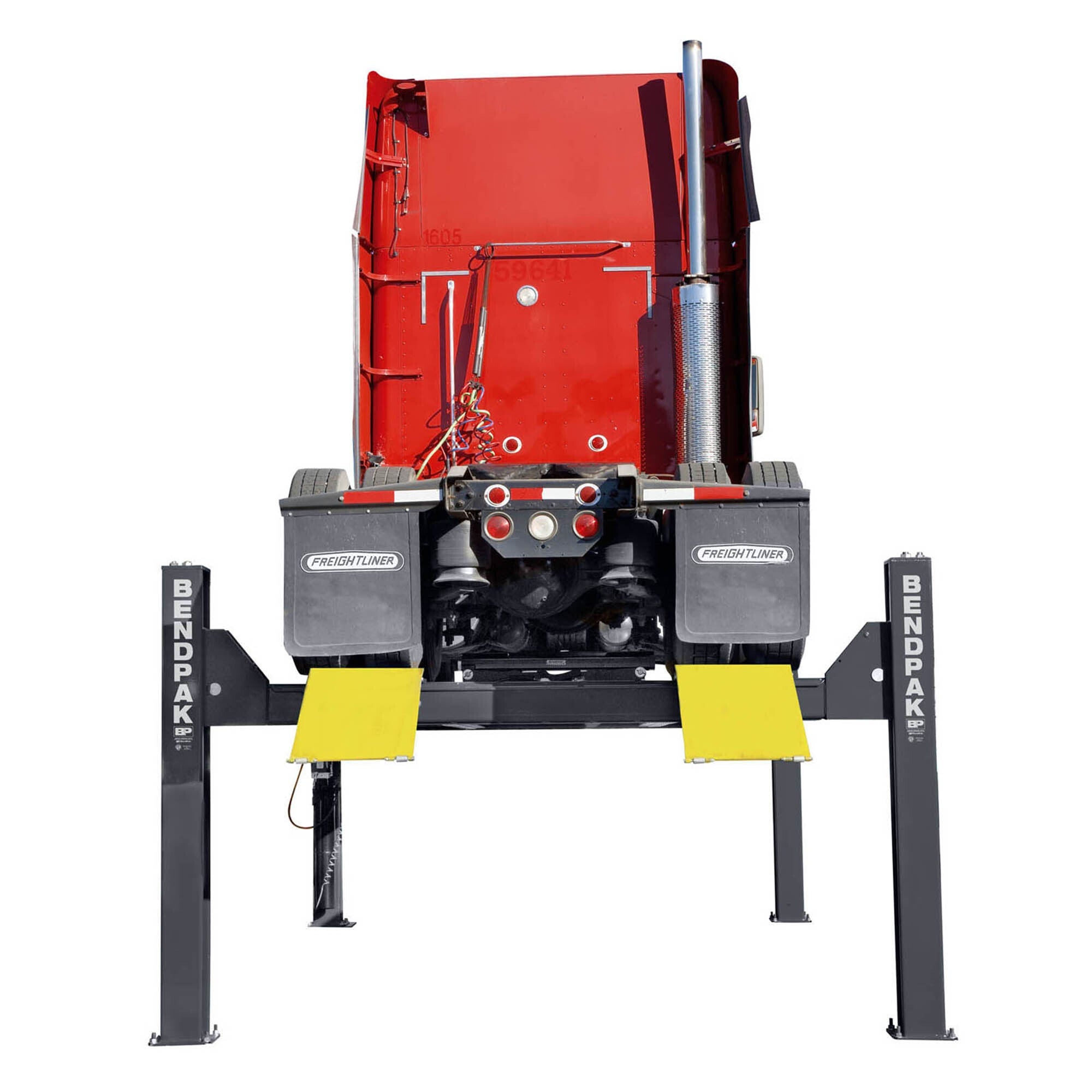

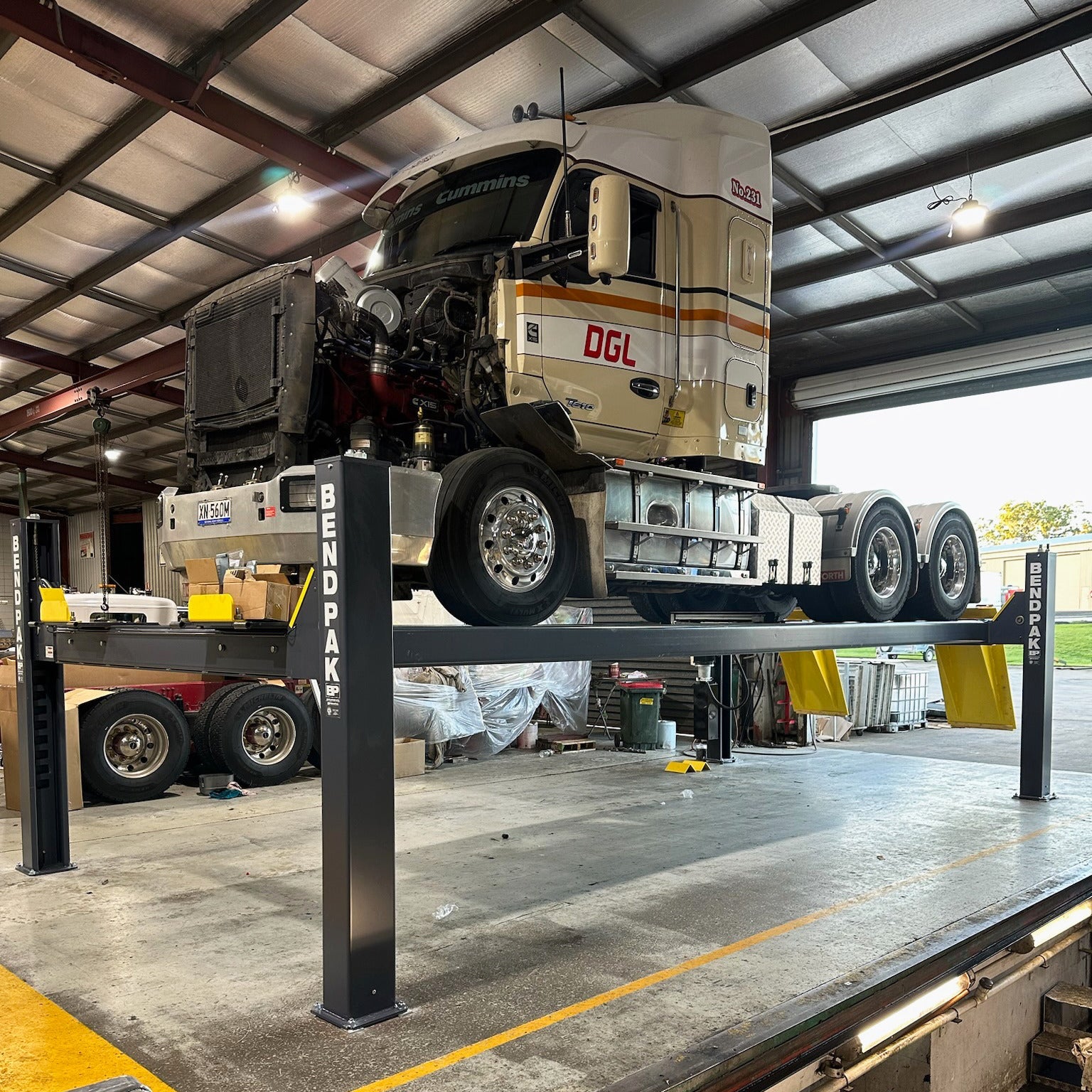

The BendPak HDS27X Four-Post Lift is built for commercial facilities that need longer runways and 27,000 lbs. of lifting capacity for semi-trucks, buses, municipal vehicles, stretch limousines, and other large fleet equipment. With its super-long 317.5-inch runways, this extended four-post truck lift gives shops the length and strength needed for vehicles that standard service bays cannot handle comfortably.
This is the kind of lift that opens the door to more profitable commercial work. Many general repair shops avoid fleet service because the equipment and space requirements are bigger. If your facility is ready for that category, the HDS27X gives you a purpose-built platform for serious heavy-duty maintenance.
317.5-Inch Runways for Long Wheelbase Service

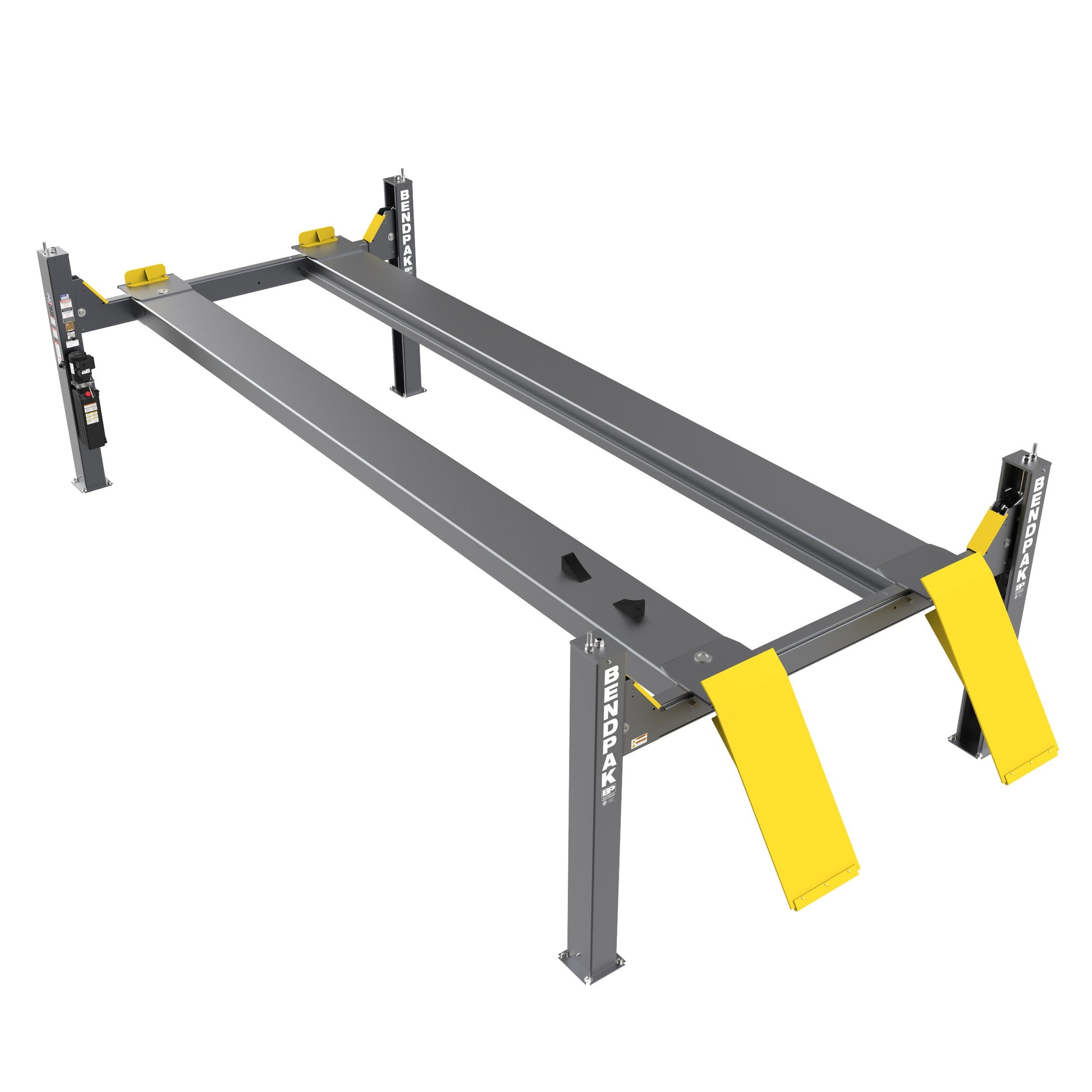

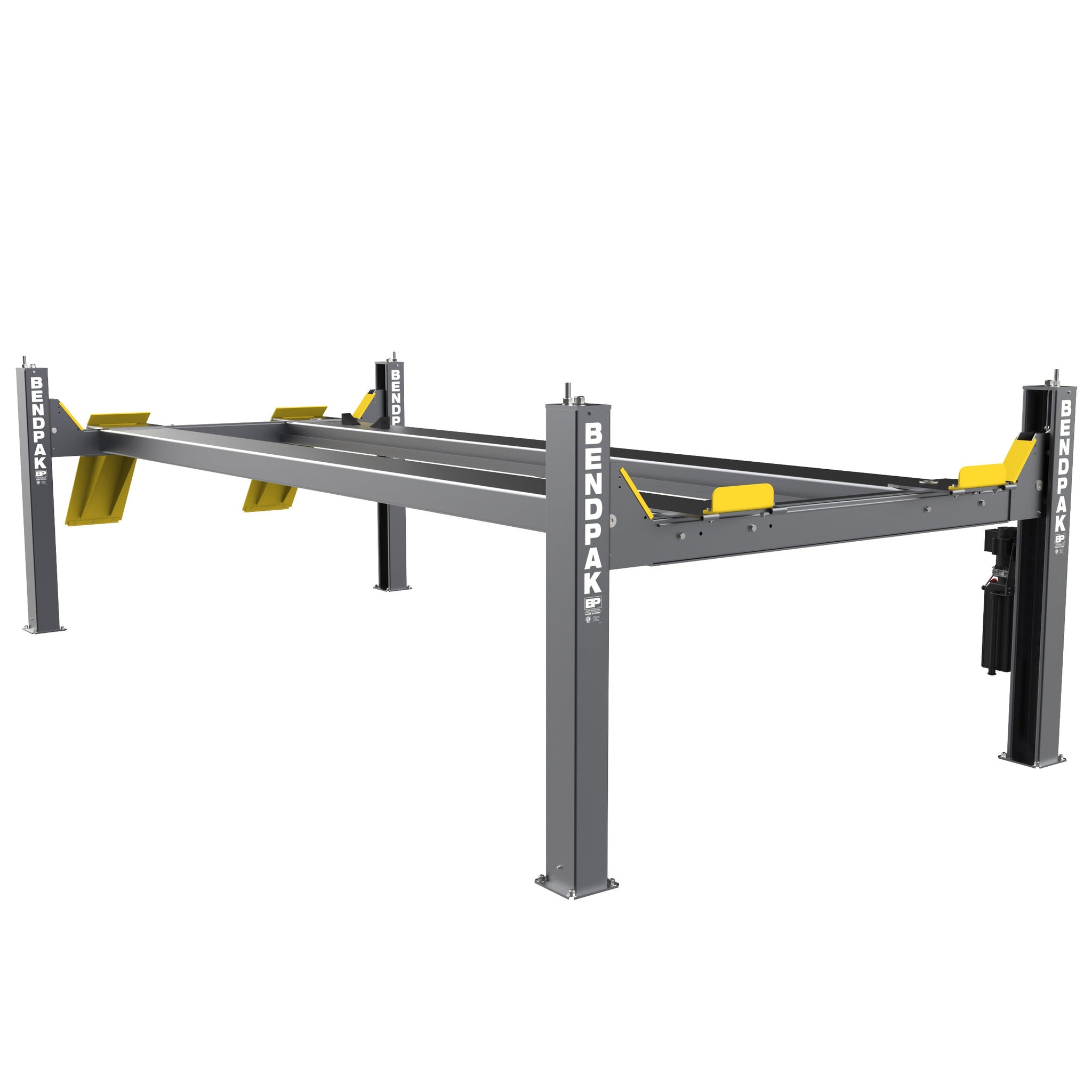

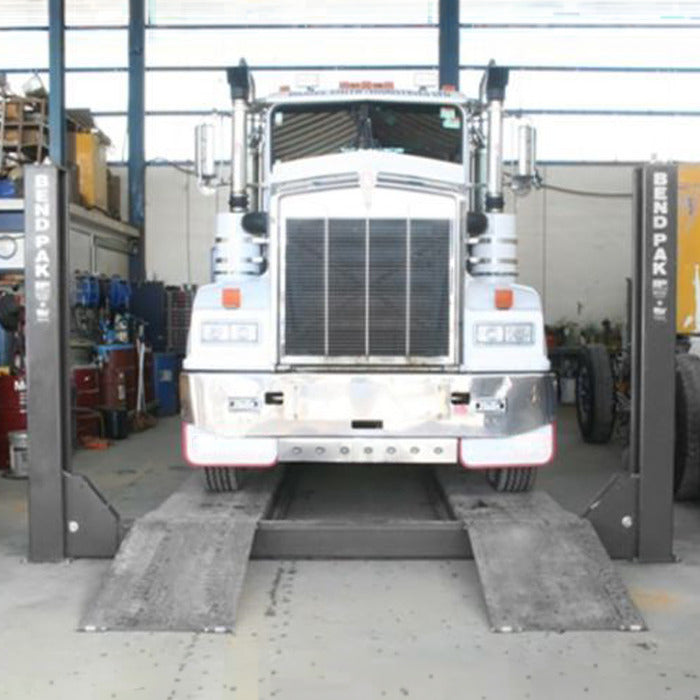

The HDS27X uses massive 317.5-inch runways, nearly 27 feet of platform length, to support long wheelbase vehicles during loading and service. The extended runway design helps technicians steer large vehicles into position with greater confidence and gives heavier commercial platforms the room they need to settle correctly before lifting.
Wide, rigid, matte-finish runways help provide the grip and support needed for semi-trucks, buses, and municipal vehicles. For shops taking on larger fleet work, that runway length is the star of the show, and it earns its parking spot.
Heavy-Duty Lifting Components for 27K Workloads
BendPak equips the HDS27X with supersized 12-inch diameter cable sheaves, galvanized lifting cables, grease nipples, a single hydraulic under-runway cylinder, and an integrated flow restrictor. Those systems work together to deliver smooth lifting and dependable durability under heavy commercial loads.
Fully enclosed lifting cables help protect the lift system, while the maintenance-free electric hydraulic power system keeps operation straightforward for busy commercial shops. The HDS27X is designed to give long, heavy vehicles the same controlled lifting experience BendPak is known for across its four-post lineup.
Commercial Safety and Wheel-Service Expandability
The HDS27X includes spring-loaded safety locks, multiple adjustable height locking positions, and a second lock system on constant guard. These mechanical systems help keep the lift secure at working height and give technicians a stable platform for demanding service work.

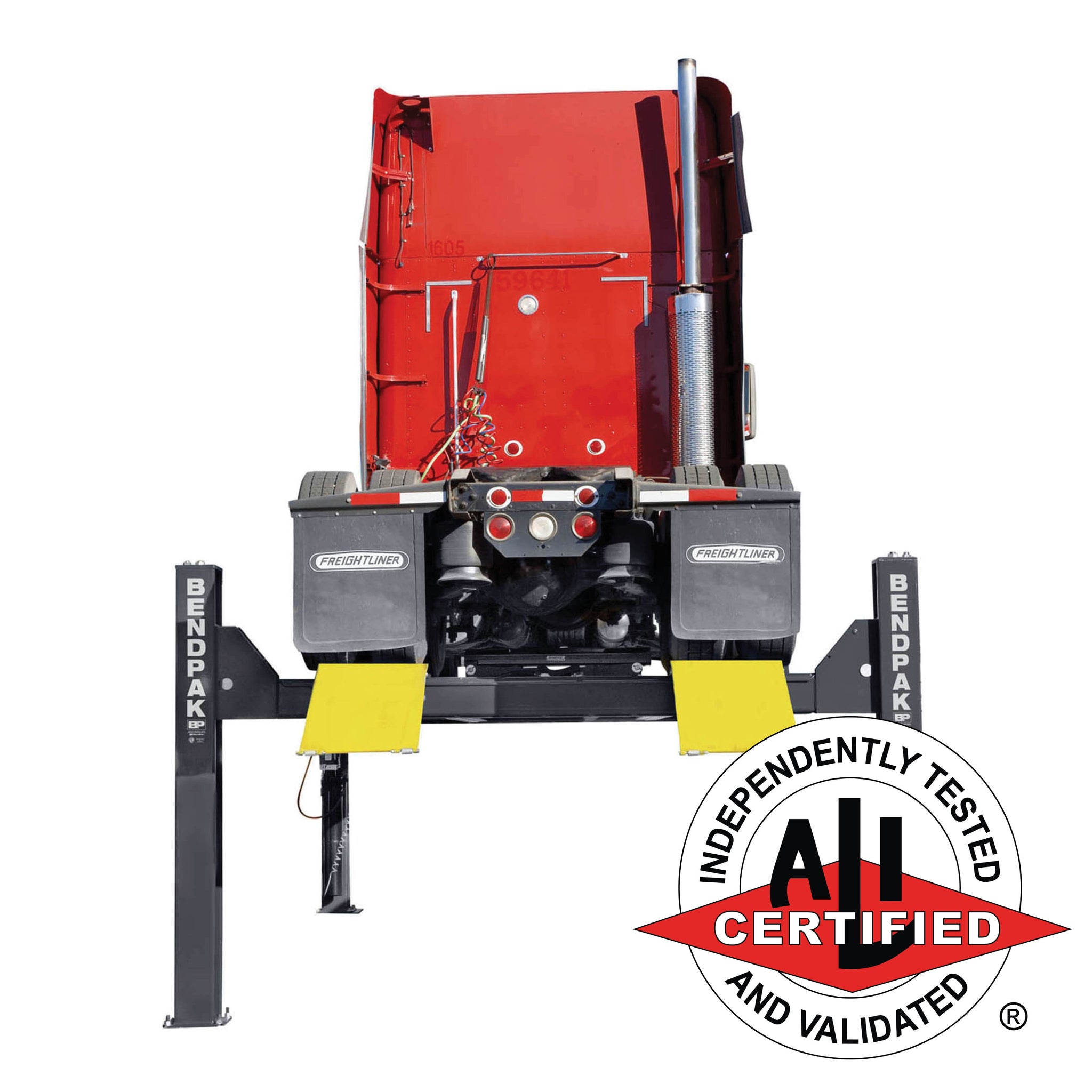

CE approval, durable powder coat, 12-inch by 12-inch base plates, conveniently positioned operator controls, and optional rolling bridge jacks round out a lift built for fleet service. If your shop is ready for semi-trucks, buses, and large municipal vehicles, the HDS27X is built to help you say yes more often.
27,000-lb. Capacity
The HDS27X is built for commercial fleet vehicles, semi-trucks, buses, and municipal equipment that demand more than standard lift capacity.
317.5-Inch Runways
Extended runways give long wheelbase vehicles the platform length needed for safer loading and better service positioning.
Fleet-Service Focus
This lift helps shops move into heavier commercial work, including large municipal vehicles and trucks many general repair bays cannot support.
12-Inch Cable Sheaves
Supersized sheaves and galvanized cables help provide controlled lifting performance for heavier vehicles and longer platforms.
Constant-Guard Locking
Spring-loaded safety locks and a second lock system help keep the lift secure during heavy-duty service operations.
Rolling Jack Ready
Optional rolling bridge jacks add wheel-off capability for brake, tire, suspension, and axle work on commercial vehicles.
Recommended Add-ons
Features
- 27,000-lb. lifting capacity
- CE Approved and Certified to meet or exceed European Standard EN-1493
- Extended 317.5-inch runways
- Built for semi-trucks, buses, municipal vehicles, and large fleet equipment
- Supersized 12-inch diameter cable sheaves
- Galvanized lifting cables
- Grease nipples for serviceable lift points
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat finish
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Optional rolling bridge jacks
Specifications
| Lifting Capacity | 27000 lb |
| Min Runway Height | 9.5 in |
| Max Rise | 60 in |
| Max Lifting Height | 69.5 in |
| Width | 153.5 in |
| Outside Length | 317 in |
| Overall Length | 372.75 in |
| Height | 91.25 in |
| Inside Columns | 133.5 in |
| Drive-Thru Clearance | 109 in |
| Runway Width | 22 in |
| Runway Length | 315.5 in |
| Width Between Runways | 40 - 45.25 in |
| Runway Centerline | 67.25 - 72.5 in |
| Outside Edge of Runways | 89.25 - 94.5 in |
| Rated Wheelbase Capacity | 230 in |
| 25% Capacity | 130 in |
| 50% Capacity | 165 in |
| 75% Capacity | 195 in |
| Locking Positions | 13 |
| Locking Spacing | 4 in |
| Horsepower | 2 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | 45 dB |
| Shipping Dimensions | 26 x 324 x 37 in |
| Shipping Weight | 6944 lb |
| Shipping Method | Flatbed |
| Offload Requirement | Forklift |
Manuals & Downloads
- BendPak HDS 27X Extended Heavy Duty Four Post Truck Lift 5175164 Sales Sheet
- BendPak HDS 18 27 40 Four Post Lift Installation Operation Manual
- BendPak Limited Warranty All Products
