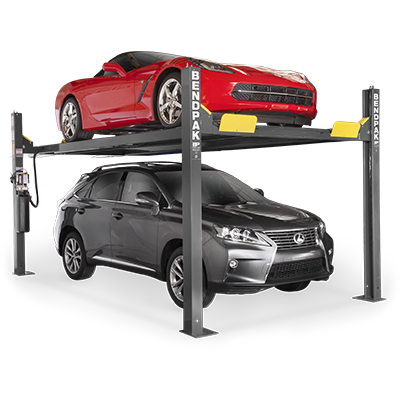

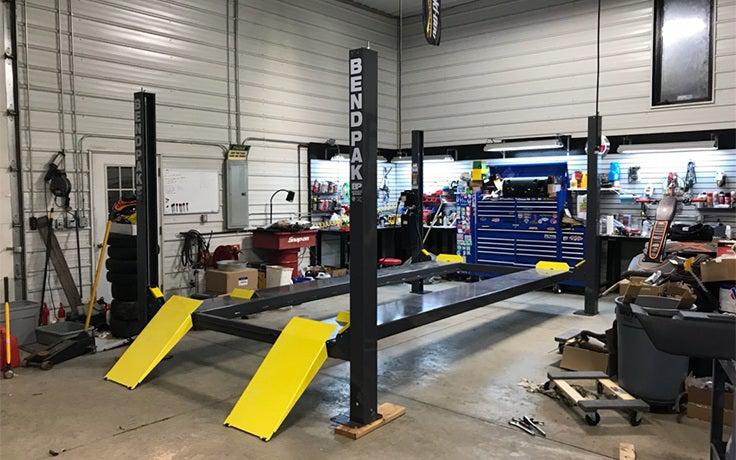

5175863 HD-9XW 9,000 Lb. Capacity / Standard Width / High Lift
The HD-9XW is a standard width, extra-tall lift that offers ample overhead clearance and enough side room to park light-duty trucks, SUVs and virtually all low ground-clearance vehicles.
Features
9,000-lb. maximum lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
Freestanding design
High-rise

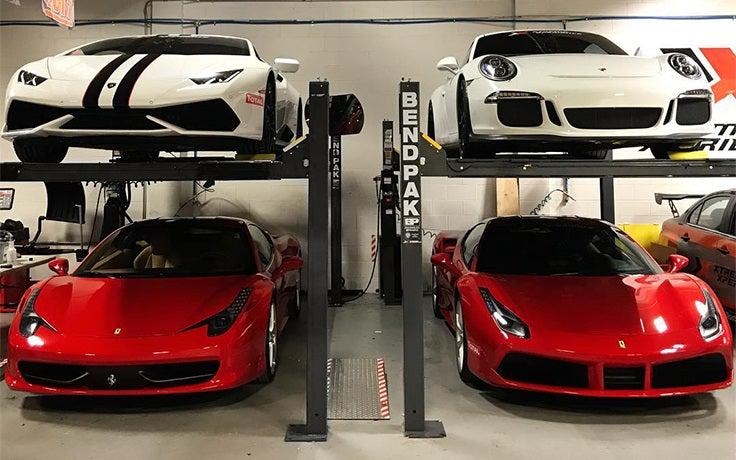

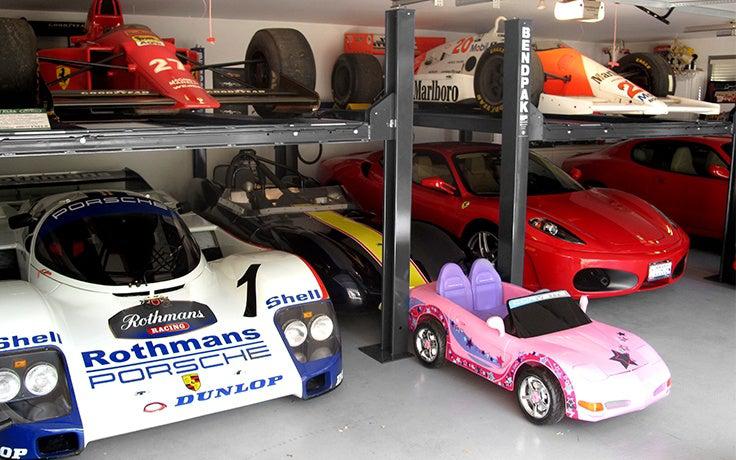

Perfect for parking, storage and service
Runways accommodate narrow and standard vehicles
Runways include rail-kit for optional accessories
Electric-hydraulic power system
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks and sheaves

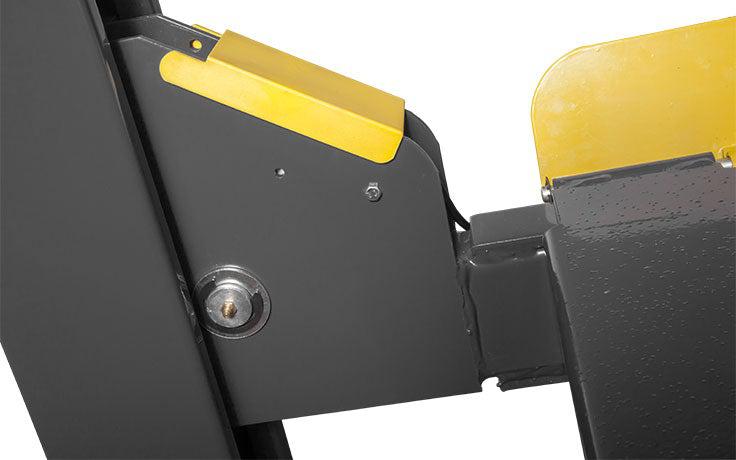

Internal anti-sway slider blocks in each column

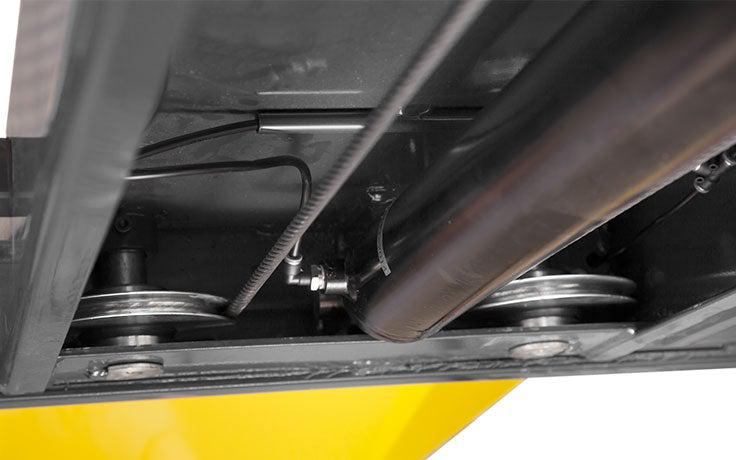

Oversized self-lubricating cable rollers
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Multi-position safety locks in each column
Adjustable lock ladders
Push-button pneumatic safety release

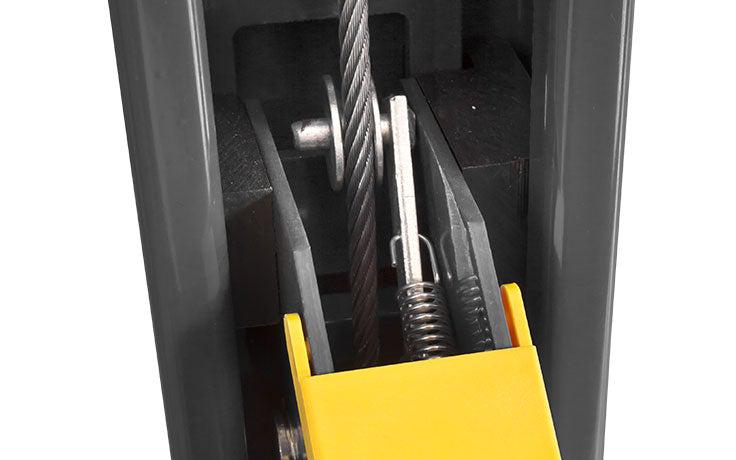

Independent backup slack-cable safety latches
Customizable power unit location
Removable approach ramps for additional drive-under clearance
Longer approach ramps for low-ground clearance vehicles available
Optional drive-thru ramps available
Optional drip trays available

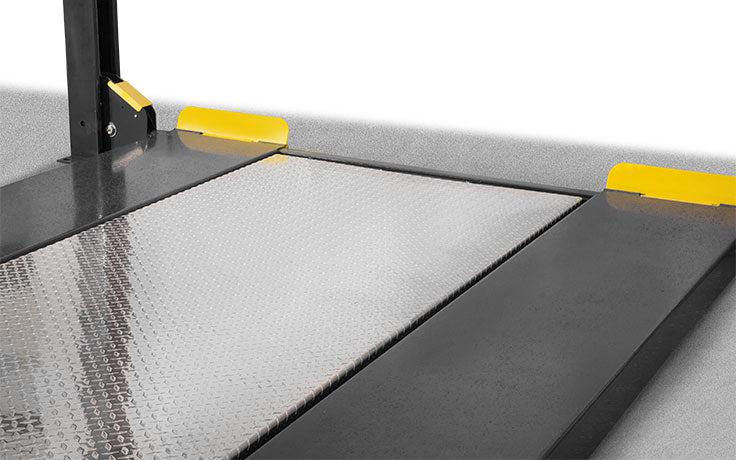

Optional solid deck available to increase storage capacity
Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
ETL Approved
Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height:
4.5" (114 mm)
B - Max. Rise:
82" (2,083 mm)
C - Max. Lifting Height:
86.5" (2,197 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
224" (5,690 mm)
G - Height of Columns:
100" (2,540 mm)
Inside Dimensions
H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.5" (2,197 mm)
Runways
J - Runway Width:
19" (483 mm)
K - Length of Runways:
188" (4,775 mm)
L - Width Between Runways:
37.5" (953 mm) or 44.375" (1,127 mm)
M - Runway Centerline:
56.5" (1,435 mm) or 63.375" (1,610 mm)
N - Outside Edge of Runways:
75.5" (1,918 mm) or 82.375" (2,092 mm)
Minimum Wheelbase
Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)
Locking
Locking Positions:
15
Lock Spacing:
Every 4" / 102 mm
Power Unit
Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB
Shipping
Weight:
1,802-lbs. (817.6 kg)
Dimensions:
188'' x 22'' x 40'' (4,775 mm x 558 mm x 1,016 mm)
