Manual Pipe Bending for Hands-On Exhaust Shops

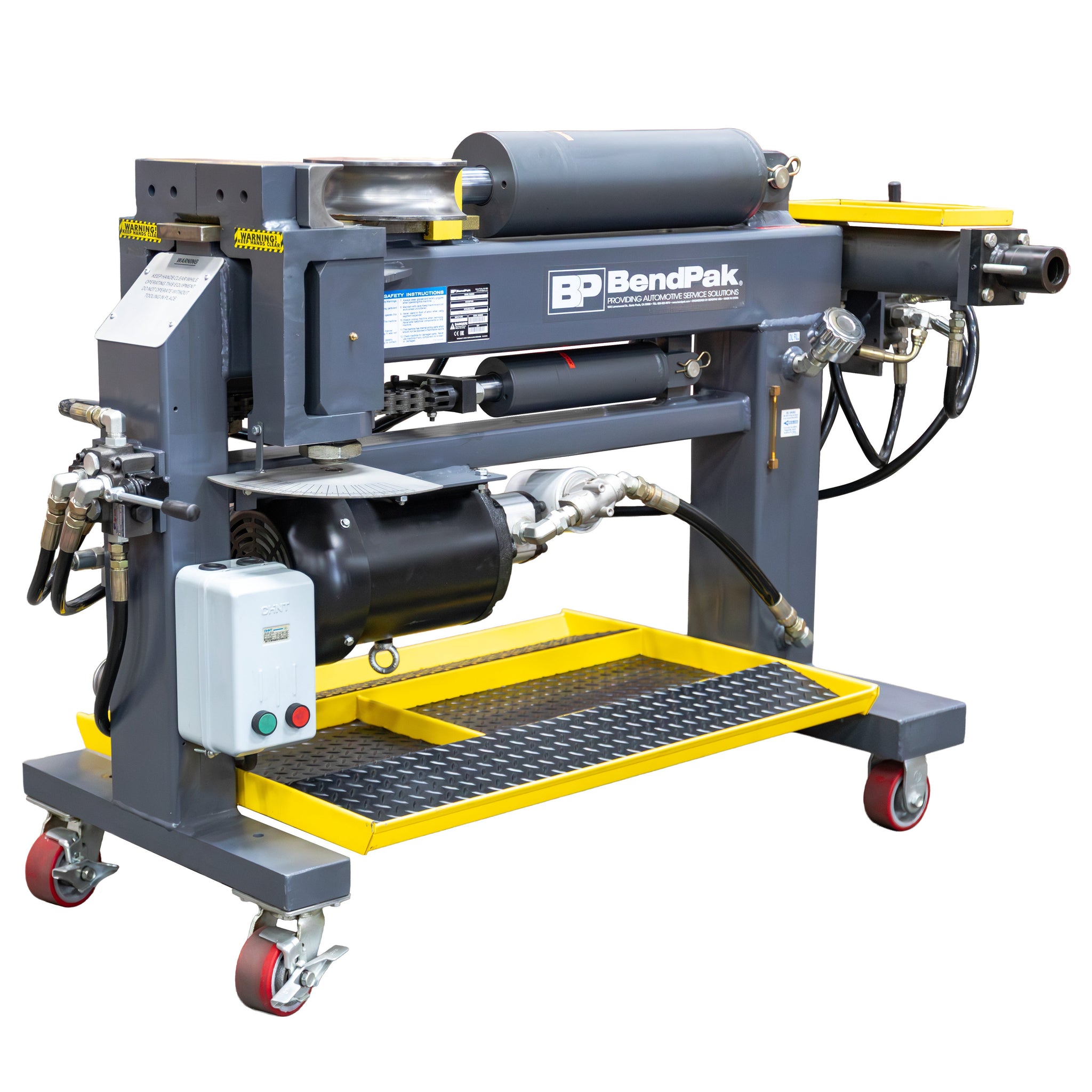

The BendPak BB-2 Blue-Bullet Manual Pipe Bender is built for exhaust shops, muffler work, and custom fabrication teams that want BendPak bending performance without moving into automatic controls. It is the right choice when your operators prefer hands-on control, visual confirmation, and simple manual operation for day-to-day pipe bending, flaring, and expanding work.
The BB-2 includes the BB-1 tooling package, two rear end-finishing units, quick-release bending and finishing dies, a high-speed clampless swager, and an internal expander. For shops that want a heavy-duty pipe bender with strong hydraulic power, precision tooling, and fewer electronic control layers, the BB-2 gives technicians a straightforward way to produce OE-style bends and end finishes.
Why Choose the BB-2 Over Automatic Pipe Benders?
The BB-2 is the best fit when the value is in operator control, mechanical simplicity, and a lower-complexity workflow. Instead of relying on programmed bend cycles, operators use manual bending controls, a knee control, and a depth-of-bend degree plate to manage each job directly. That makes the BB-2 a strong option for experienced fabricators who want to stay close to the process.
Compared with the 1302BAS and 1302BA, the BB-2 is more manual by design. It still shares the heavy frame, hydraulic muscle, precision-ground bending heads, quick-release dies, and end-finishing capability found across BendPak pipe benders, but it is aimed at shops that do not need semi-automatic or digital program control to get quality bends out the door.
Rigid Steel Frame, Hydraulic Power, and Precision Tooling
The BB-2 uses a rigid 6" x 6" x 3/8" welded-steel tube frame, commercial-grade hydraulic cylinders, and chrome-moly cylinder shafts that conform to ANSI 92.2 standards. A pass-through cylinder stem travels completely through the primary frame, while the one-piece barrel helps keep the bending gates aligned with the ram throughout the bend cycle.
A strong 5 HP energy-efficient motor, direct-drive high-speed 4 gpm pump, large-capacity fluid reservoir, canister oil filter, oil sight gauges, oversized 1/2" high-pressure hose, and adjustable front pressure valve all support consistent hydraulic performance. Bending heads are precision ground to within .002", and heat-treated tooling helps extend service life in demanding shop environments.
End Finishing, Tool Organization, and Shop Mobility
The BB-2 gives shops more than bending capability. Two separate rear end-finishing units support necessary flaring and expanding work, while the drop-in collar helps make swaging operations quick and efficient. Twist-lock tooling and quick-release bending dies help reduce setup time between jobs, which matters when the schedule is stacked and every minute has already been sold twice.

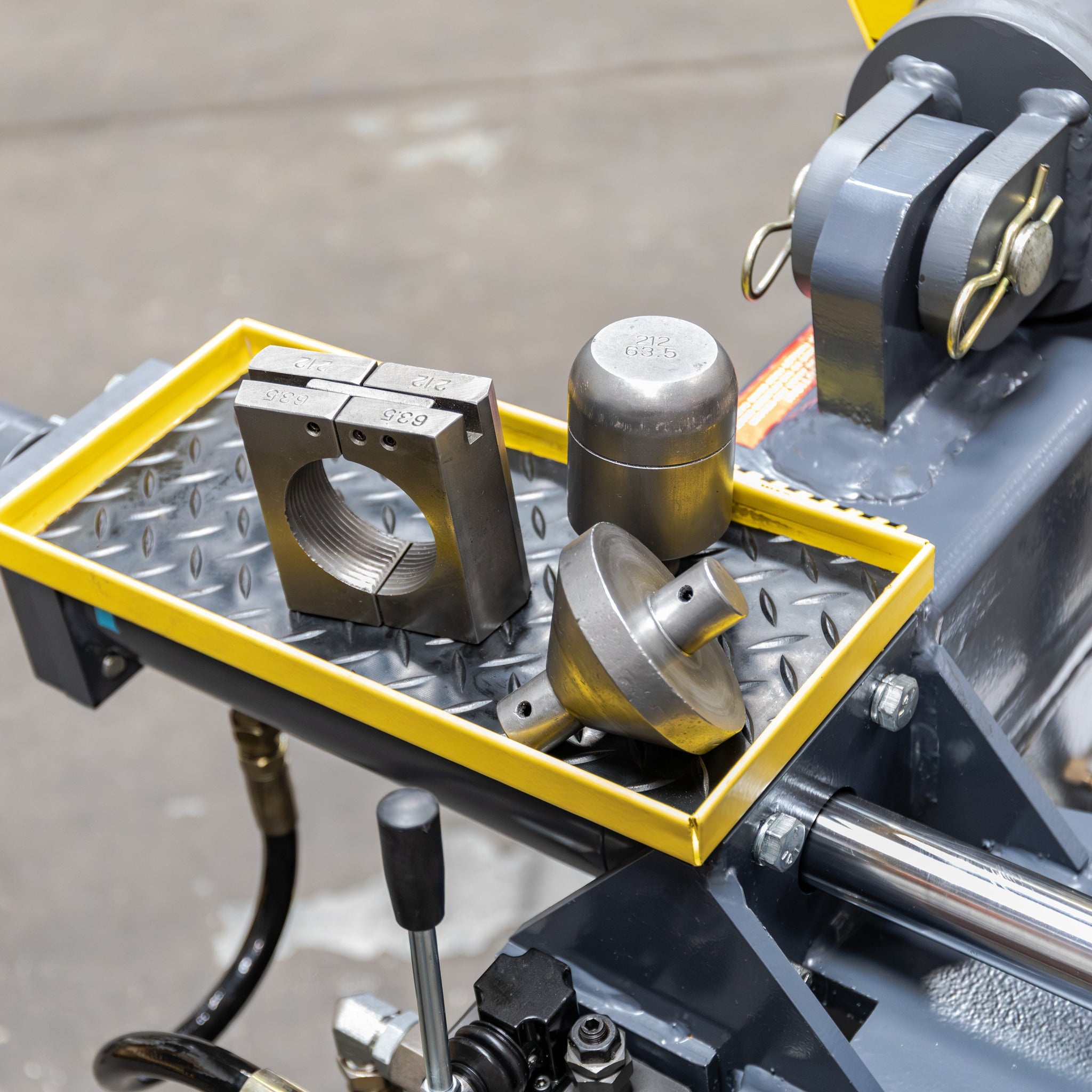

Enclosed controls keep the bending area cleaner, pressure gauges show system pressure at a glance, and convenient tool trays help keep tooling organized. Industrial-grade casters make it easier to move the bender around the shop, while standard grease fittings and oversized barrel shafts support easier maintenance over the long haul.

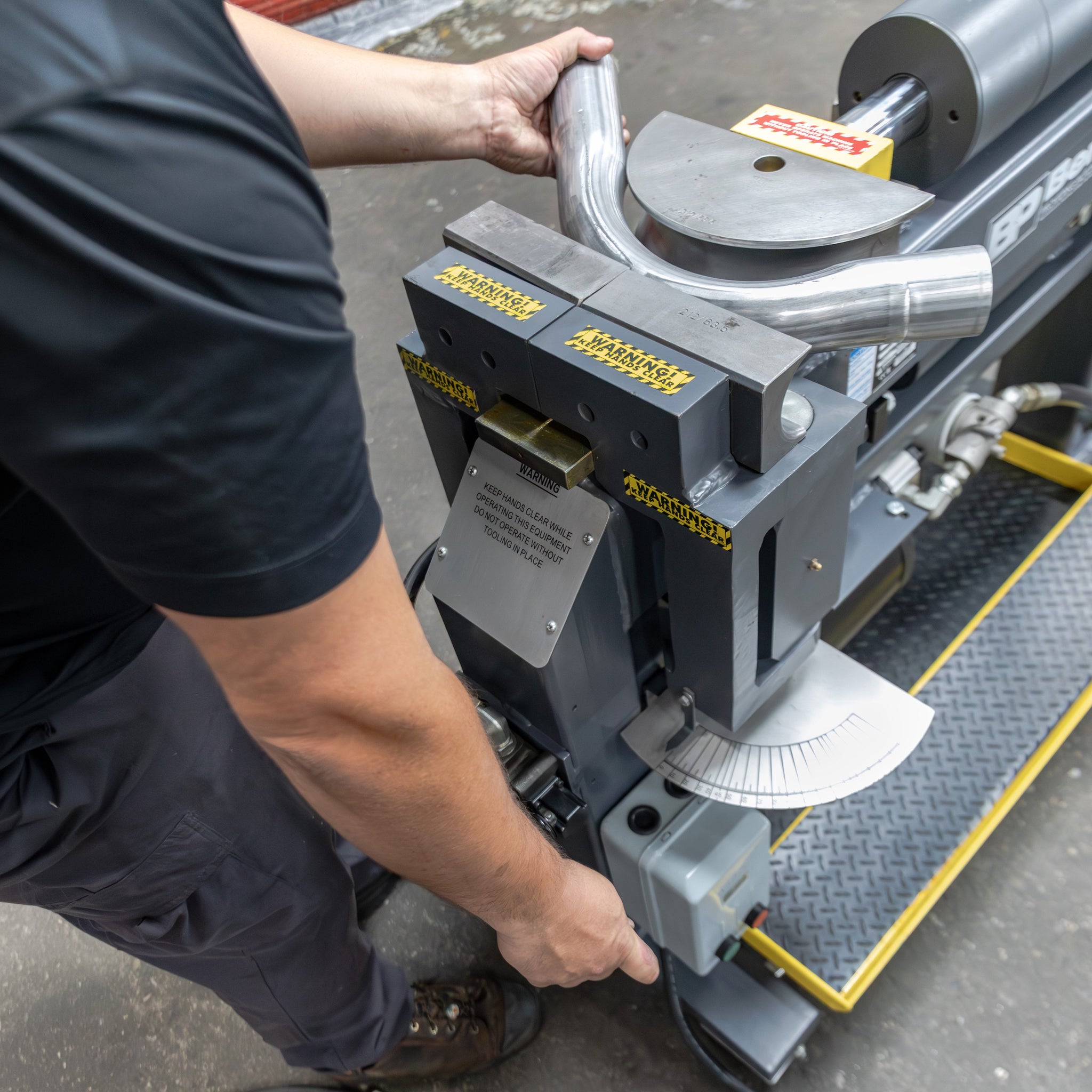

Manual Bend Control
Built for shops that prefer hands-on pipe bending with a knee control and depth-of-bend degree plate. The BB-2 keeps operators directly connected to each bend.

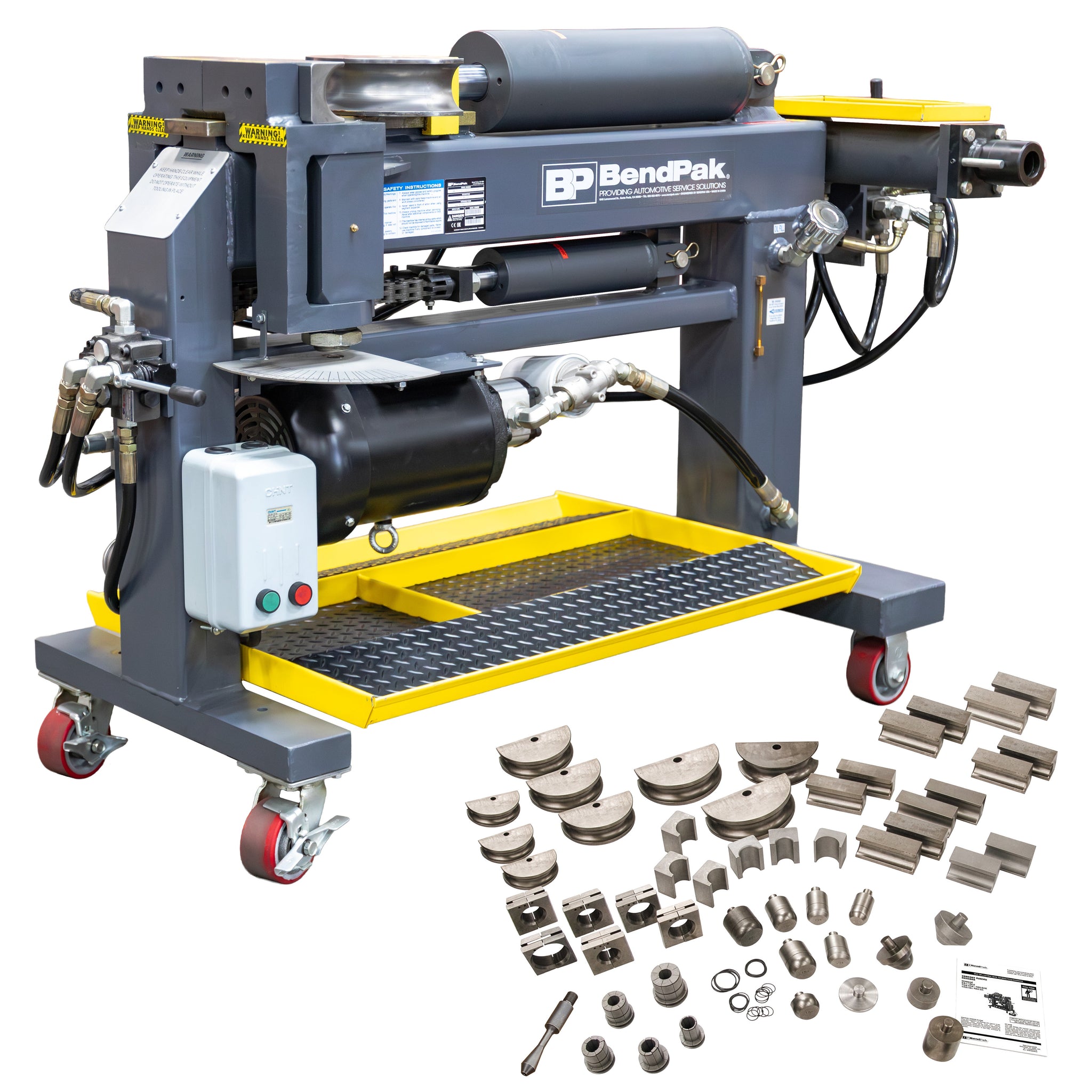

BB-1 Tooling Included
Comes with the BB-1 tooling package, quick-release bending and finishing dies, a high-speed clampless swager, and an internal expander.

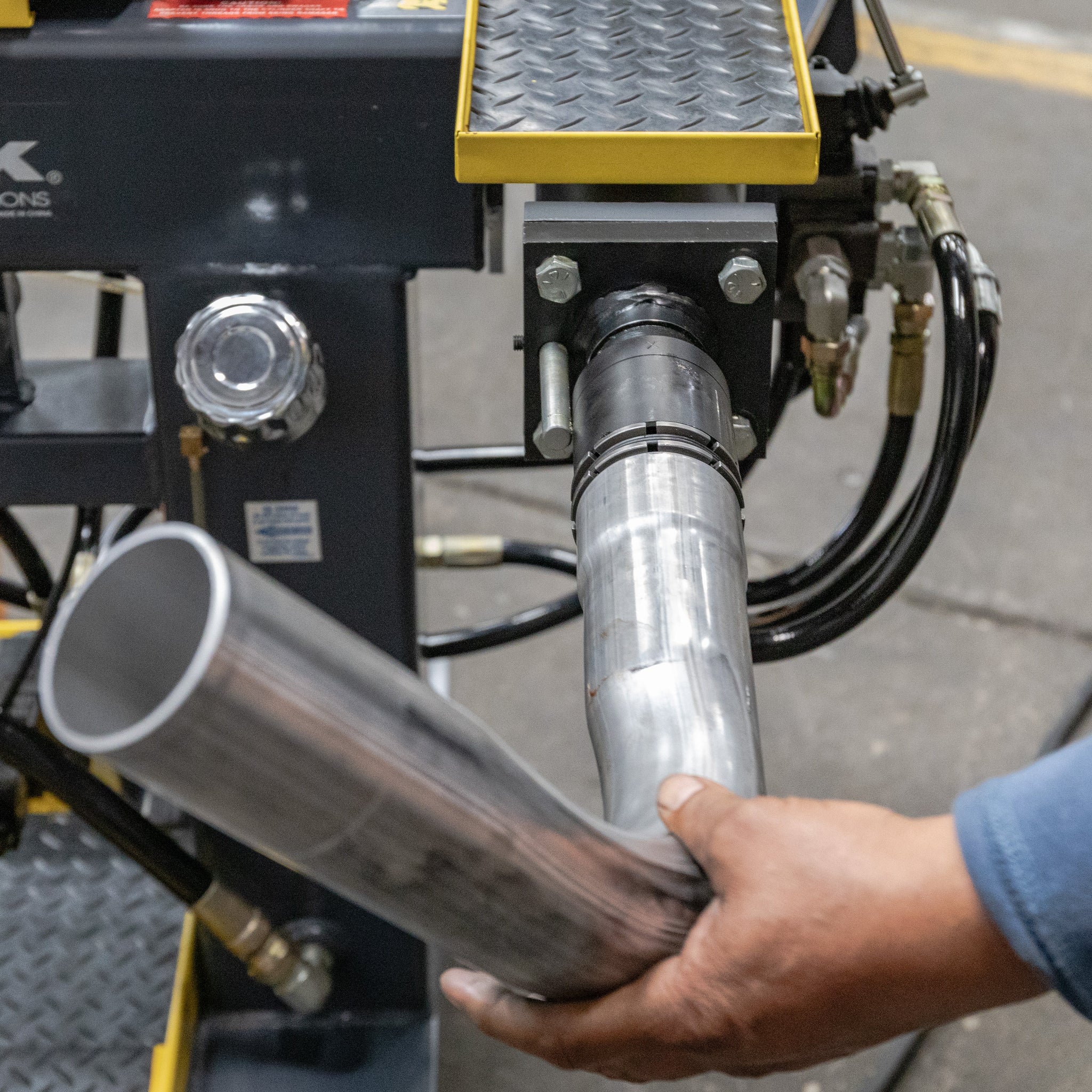

Rear End-Finishing Units
Two separate rear end-finishing units support flaring and expanding operations. That gives shops more fabrication capability from one machine.
Welded Steel Frame
A rigid 6" x 6" x 3/8" welded-steel tube frame gives the BB-2 the strength needed for demanding exhaust and tubing work.
Precision-Ground Bending Heads
Bending heads are precision ground to within .002" to support accurate, repeatable bending performance in daily shop use.
Hydraulic Shop Power
A 5 HP motor, direct-drive 4 gpm pump, large fluid reservoir, and commercial-grade cylinders help keep bending power strong and consistent.
Recommended Add-ons
Features
- Manual pipe bender for hands-on bending control
- BB-1 tooling package included
- Two rear end-finishing units for flaring and expanding
- High-speed clampless swager and internal expander

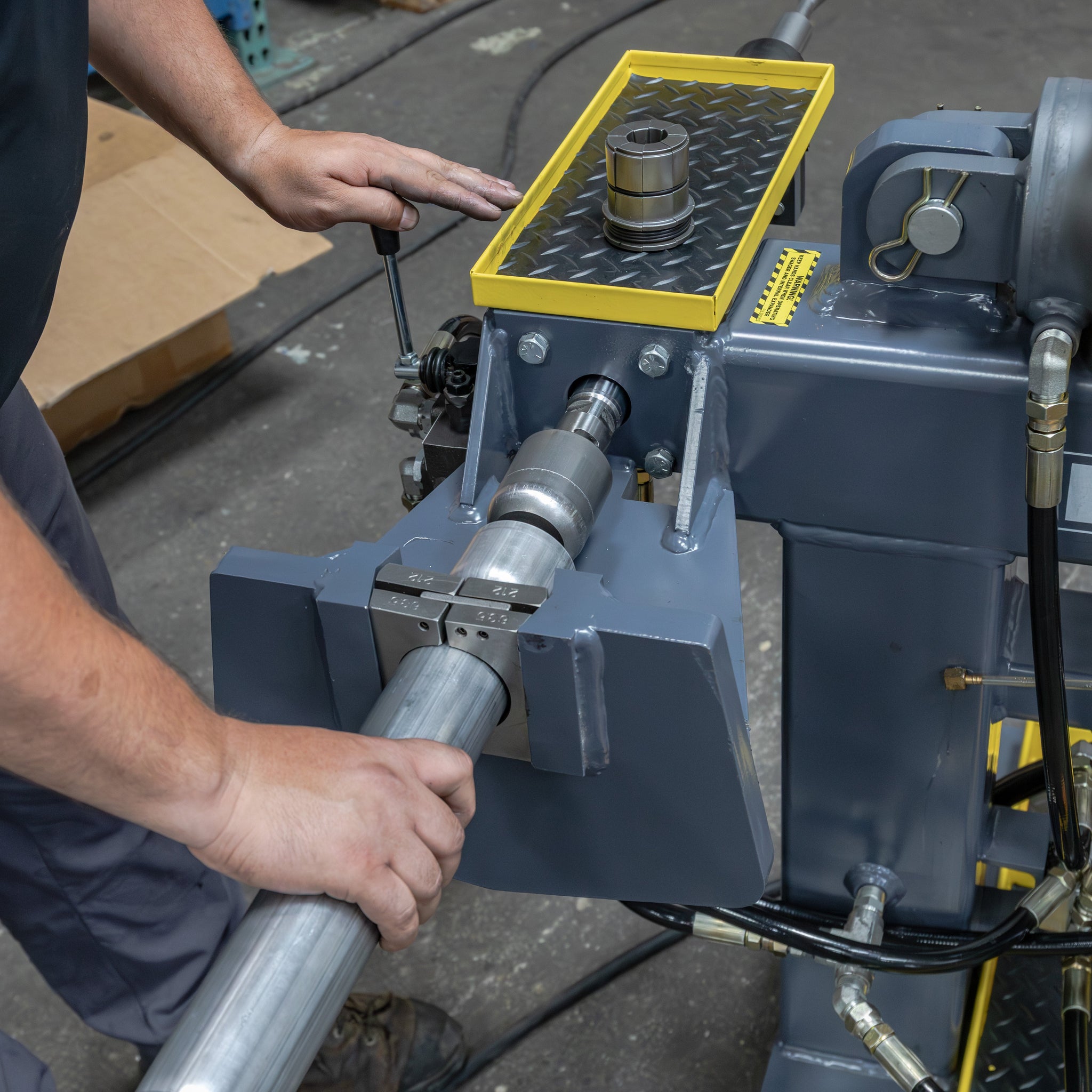

- Easy-to-use drop-in collar for swaging operations
- Twist-lock tooling and quick-release bending dies

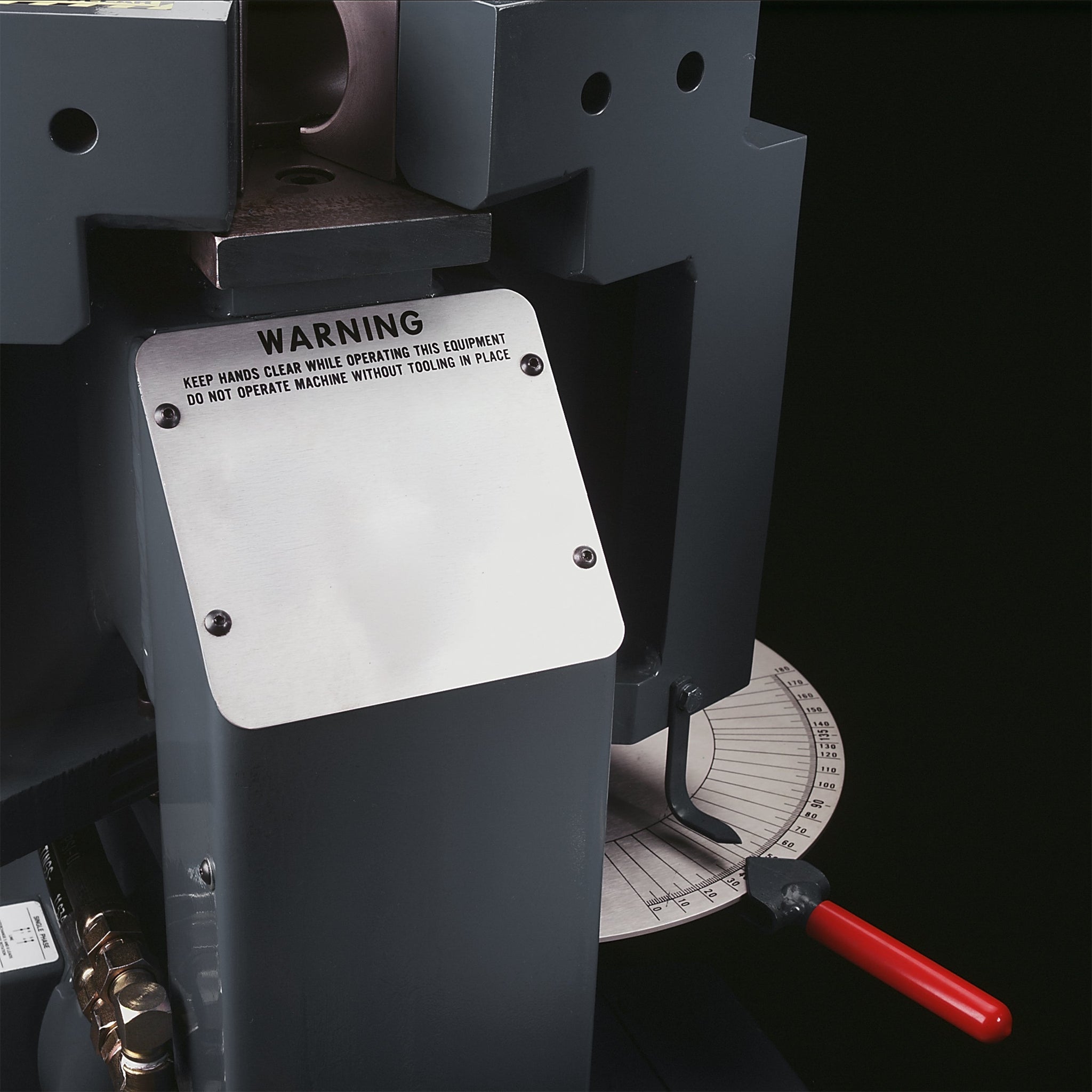

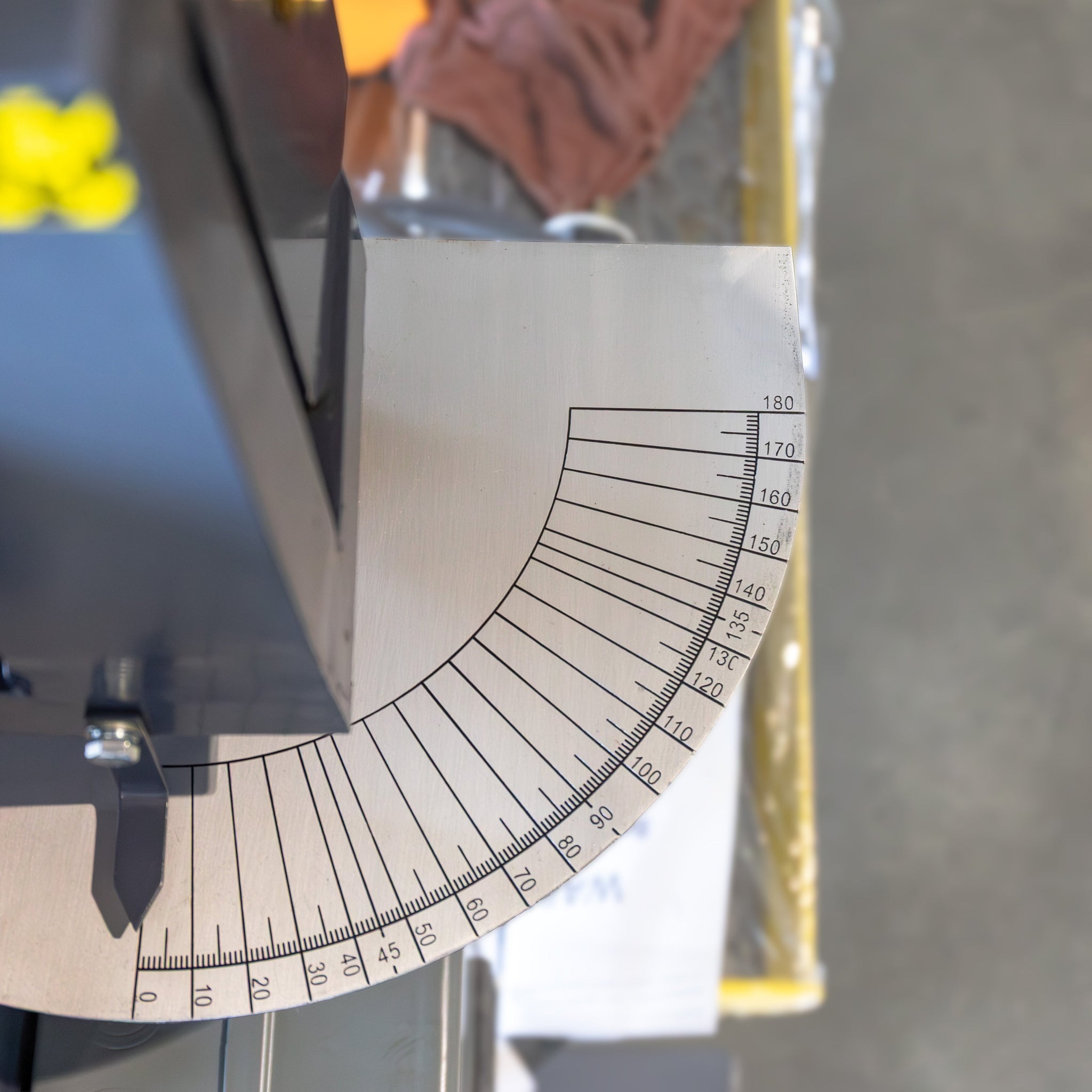

- Knee control and depth-of-bend degree plate
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- Chrome-moly cylinder shafts conform to ANSI 92.2 standards
- Bending heads precision ground to within .002"
- Strong 5 HP energy-efficient motor
- Direct-drive high-speed 4 gpm pump
- Large-capacity fluid reservoir with canister oil filter
- Industrial-grade casters for shop mobility
Specifications
| Bending Controls | Manual |
| Expander Controls | Manual |
| Frame Style | Double-Ended Expander |
| Max Tube Diameter | 3 in |
| Max Bending Radius | 5 in |
| Min Bending Radius | 3.3 in |
| Top Cylinder Force | 60000 lb |
| Hydraulic Filter | Canister |
| Standard Die Pack | 1.5, 1.75, 1.625, 2, 2.25, 2.5 |
| Width | 42 in |
| Depth | 62 in |
| Height | 31 in |
| Shipping Weight | 1364 lb |
| Shipping Dimensions | 32 x 70 x 47 in |
| Shipping Method | LTL |
| Offload Requirement | Liftgate |
