- Low-friction coating provides more control
- Cutterhead with three high-speed steel knives
- 12" x 84" precision-ground cast iron table
- Rack and pinion adjustable fence
Description

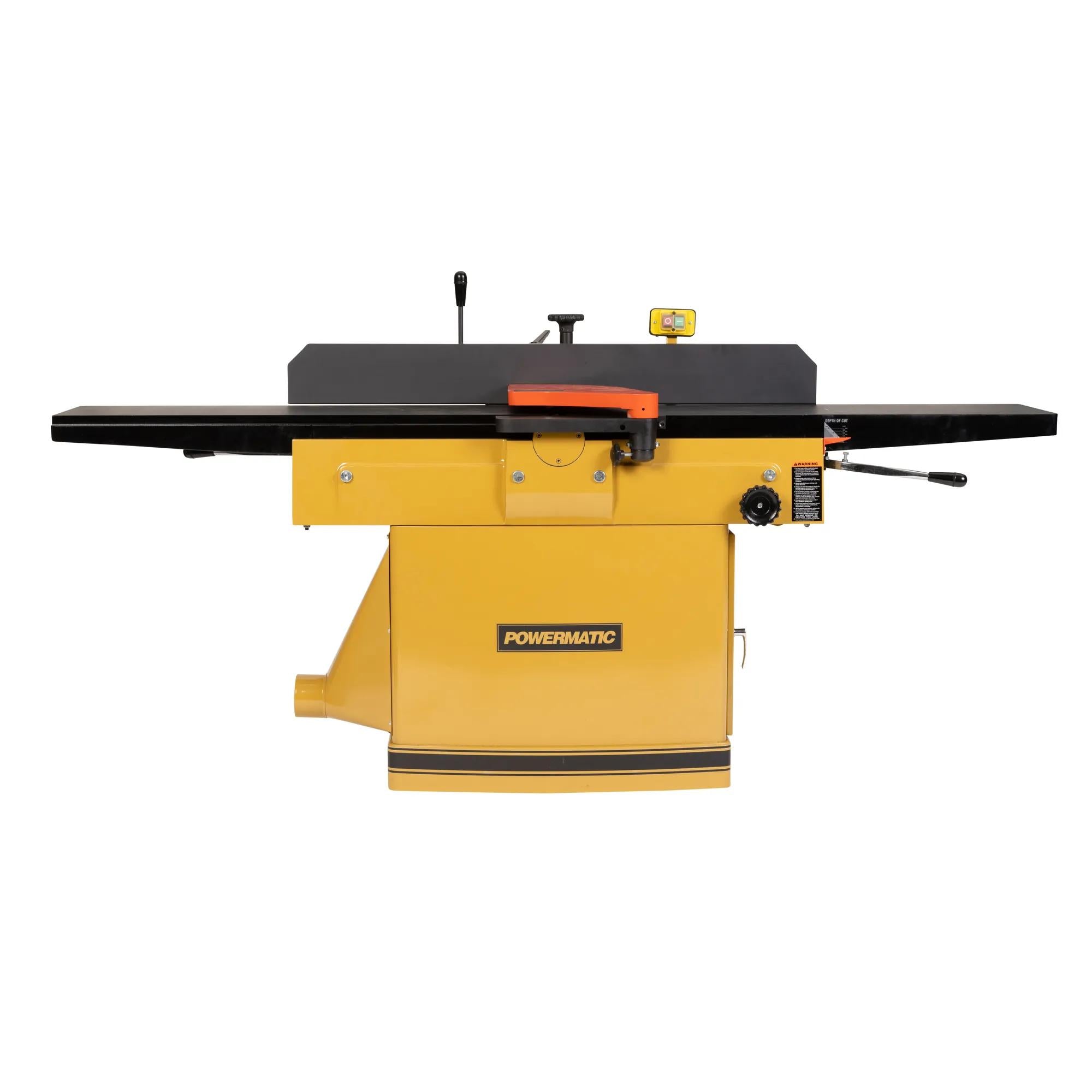

The Powermatic 1285T ArmorGlide 12-inch parallelogram jointer with a straight-knife cutterhead and 230V single-phase power provides traditional cutting performance with modern table protection. ArmorGlide Technology creates a low-friction, rust-resistant surface that improves stock movement and extends table life. Driven by a 3 HP motor, the straight-knife cutterhead delivers reliable jointing performance for a wide range of materials. The parallelogram table design allows quick depth-of-cut changes while maintaining consistent alignment for accurate results. A center-mounted fence with rack-and-pinion adjustment offers smooth positioning and includes preset stops for 45-degree angles and a positive 90-degree stop. Heavy cast iron construction throughout the machine enhances stability and vibration control, making this jointer a dependable choice for professional shops that prefer straight-knife systems.
Features

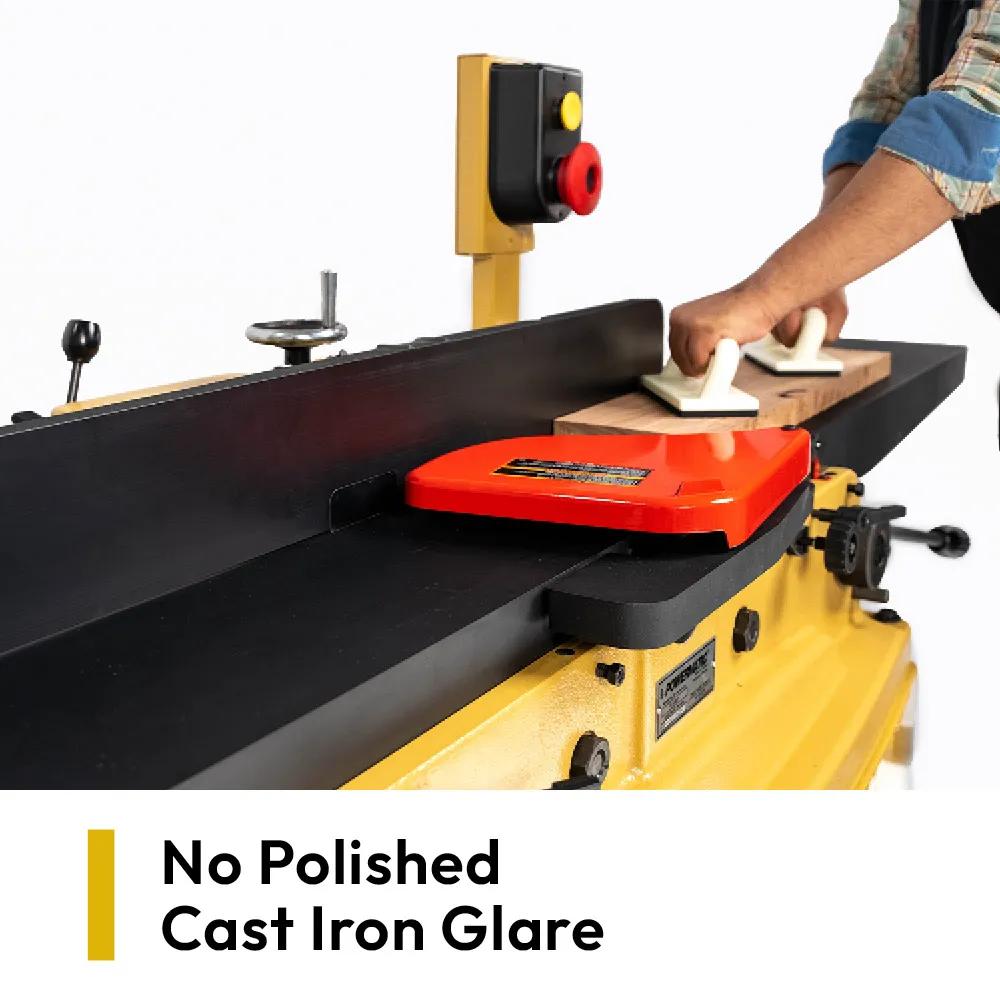

- ArmorGlide-coated cast iron tables reduce friction and resist rust, allowing smoother stock travel and less surface maintenance over time
- Three-knife straight cutterhead uses high-speed steel knives to deliver traditional jointing results with consistent edge engagement
- 3 HP single-phase motor provides steady power for jointing wide boards and dense stock without requiring three-phase service
- Parallelogram table design keeps tables closely aligned to the cutterhead while allowing fast, accurate depth-of-cut adjustments
- Large 12-inch by 84-inch precision-ground cast iron table supports long material for improved accuracy and stability
- Center-mounted cast iron fence adjusts via rack-and-pinion control for smooth movement and repeatable positioning
- Fence preset stops enable quick setup at common angles, including 45 degrees and a positive stop at 90 degrees
- Heavy cast iron construction reduces vibration during operation for smoother cuts and consistent jointing results
- Cast iron table lips near the cutterhead help dampen operational noise during cutting passes
- Designed for controlled cutting depths up to 1/8 inch for jointing and up to 1/2 inch for rabbeting
Specifications
| SKU | PM1-1791241T |
|---|---|
| Coating | ArmorGlide Technology |
| Cutterhead Speed (RPM) | 5000 |
| Cutting Capacity Width | 11.75 in. |
| Dust Port Outside Diameter (in.) | 4 in. |
| Fence Size | 47-1/4 x 5-1/4 in. |
| Gross Weight | 880 |
| Input Power | 230V Single Phase |
| Model Number | 1285T |
| Motor HP | 3 |
| Net weight | 762 |
| Number of Knives | 3 |
| Old Material Number | 1791241T |
| Prewired Voltage | 230 |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height | 31-5/8 |
| Type of Cutterhead | Straight Knife |
| UPC | 019907107989 |
| Warranty | 5 Year |
