The Pirate Brand 221-104-D-EDC is a portable 6.5 cu ft (185 liter) E-Series pressure hold abrasive blast pot with 12V DC electric controls. It is built for contractors and shops that want a complete, ready-to-blast setup, combining an ASME-built 150 PSI vessel, an automatic pinch valve, and the Gold Blasting Package of hose, nozzle, suit, gloves and respirator.
How It Works
This is a pressure hold (EPH) system. Abrasive is loaded through the top opening where the pop-up sits. With the blow-down (outlet) valve closed, compressed air enters through the inlet valve and moisture separator and fills the vessel. The pop-up seals against its seat and the vessel pressurizes. When you squeeze the electric D-handle control, the auto air valve and automatic metering valve open, air and abrasive mix, and the blast stream leaves through the blast hose and nozzle. When you release the handle, both valves close and the vessel stays pressurized. To depressurize, manually close the inlet valve and open the blow-down valve. Because the pot stays pressurized between bursts, it stands up to short blast cycles with smoother starts and stops.
Electric 12VDC controls are recommended for blast hose lengths longer than 100', start and stop faster, and are less prone to freezing in cold climates.
Key Features
- 6.5 cu ft (185 liter) capacity in a portable, wheeled design
- 150 PSI (10.3 bar) vessel, ASME Section VIII Division 1, with CRN for all provinces
- Pressure hold system reduces abrasive consumption and moisture problems
- Automatic pinch valve with X-Treme Duty pinch tube: 100% gum rubber for longer wear life, with carbon black for static dissipation
- Heavy duty moisture separator
- 1-1/4" galvanized piping for corrosion resistance and heavy duty full port ball valves
- Extended life Schedule 80 heavy duty nipple withstands abrasive wear
- Pusher line with JIC fittings, eliminating gasket problems
- Anti-clog / anti-freezing blow-down muffler reduces unnecessary loud noise
- 6" Fast-Fill pop-up for quicker filling, with bag-breaker and screen included as standard
Specifications
| Model | 221-104-D-EDC |
|---|---|
| Series | E-Series EPH, portable |
| Capacity | 6.5 cu ft (185 liters) |
| Working pressure | 150 PSI (10.3 bar) |
| Vessel | ASME Section VIII Division 1; CRN for all provinces |
| Pressure system | Pressure hold |
| Controls | 12VDC electric D-handle control with 55' control cord |
| Metering valve | Automatic pinch valve with X-Treme Duty metering tube |
| Piping | 1-1/4" galvanized, with moisture separator |
| Valves | Heavy duty full port ball valves |
| Pop-up | 6" Fast-Fill |
| Warranty | 5-year limited blast pot warranty; 10-year limited pressure vessel warranty |
Air & Abrasive Requirements
When using steel abrasives, sealed connectors (PB-31131) are required. Pirate Brand also offers a regulator kit for blasting at lower pressures to control profile or achieve custom finishes, and a lid to keep moisture out of the pot in outdoor use.

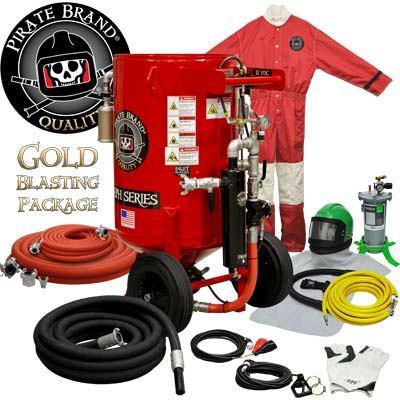

What's Included
- 6.5 cu ft EPH blast pot with automatic pinch valve, moisture separator, 1-1/4" piping, electric D-handle control and 55' control cord
- Gold Blasting Package:
- (1) 10-114BLK-050-3AL, 1-1/4" blast hose assembly kit with couplings, 50'
- (1) 1348-555, #5 tungsten carbide all-poly nozzle
- (1) 122-9150, lightweight blast suit, large
- (1) 407701, luxury double-palmed gloves (pair)
- (1) 407000-PFC, RPB NOVA 2000 respirator package
- (1) 10-034RED-050-1, 3/4" air hose assembly kit with couplings, 50'
- (1) 10-112RED-050-1, 1-1/2" air hose assembly kit with couplings, 50'
- (1) UM-100, air hose coupling, 2 lug, 1" male NPT
- (1) UF-150, air hose coupling, 4 lug, 1-1/2" female
