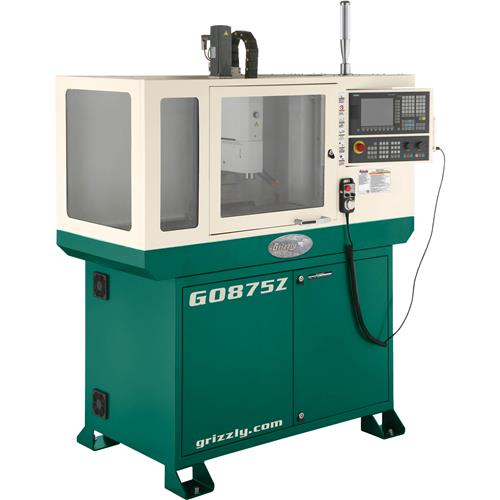

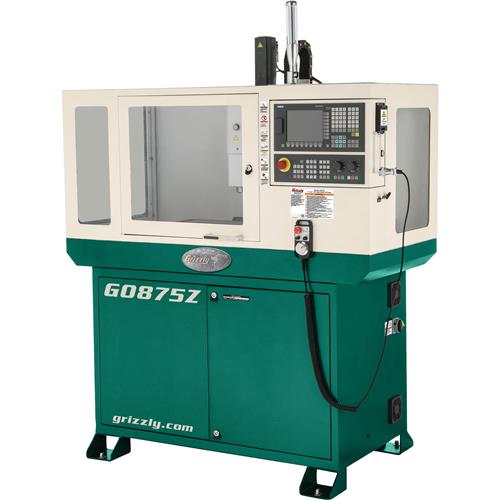

Are you ready to take your metalworking production to new levels? The G0875Z Enclosed CNC Mill, equipped with a powerful 3 HP servo-driven spindle motor, delivers the precision and performance you need to tackle even the most demanding tasks.
Featuring a Siemens® Sinumerik 808D Advanced CNC controller and a BT30 spindle with a powered pull stud tool retention system, the G0875Z offers lightning-fast tool changes and unparalleled accuracy. The upgraded 3 HP motor provides ample power to drive your tools, ensuring smooth cuts and exceptional results.
With Siemens servo motors driving the ball screws on all 3 axes, you can expect silky-smooth and precise movements. A 5-gallon coolant tank and dual flexible coolant nozzles keep your tools cool and lubricated, even during the most intensive cutting operations.
The enclosed design of the G0875Z helps to keep your shop floor clean while allowing you to monitor the cutting process through viewing windows. Our comprehensive manual, written by our U.S.-based Technical Documentation Department, provides detailed instructions for assembly and maintenance.
Made in an ISO 9001 factory
SPECIFICATIONS
Spindle servo motor: 3 HP, 220V, 3-phase, 5.4A
Power requirement: 220V, 3-phase, min. 20A circuit
X-axis servo motor: 0.55 HP, 220V, 3-phase, 1.2A
Y-axis servo motor: 1 HP, 220V, 3-phase, 2.1A
Z-axis servo motor: 1 HP, 220V, 3-phase, 2.1A
Spindle taper: BT30
Spindle speed: Variable, 90–3000 RPM
Spindle to column: 7-3/4"
Spindle to table: 11"
X-axis travel: 14"
Y-axis travel: 6"
Z-axis travel: 9"
Rapid feed rates: 240 in./min.
Position resolution: ±0.002"
Repeat position resolution: ±0.002"
Air requirement: 8 Bar
Table size: 7" x 24-3/8"
Table T-slots: 3 x 7/16"
Table weight capacity: 66 lbs.
Coolant tank capacity: 5 gallons
Footprint: 65" x 68"
Overall dimensions: 65" W x 42" D x 78" H
Approximate shipping weight: 1444 lbs.
FEATURES

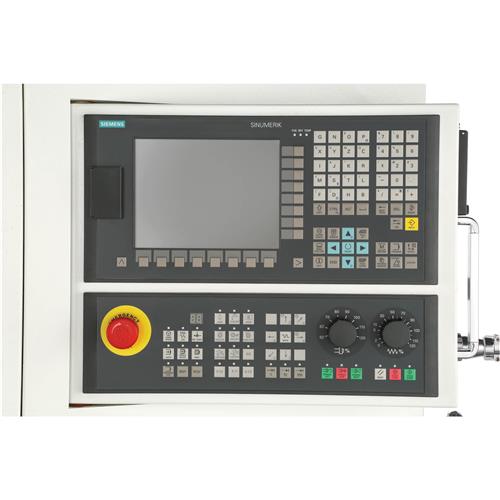

Siemens® Sinumerik 808D Advanced CNC controller

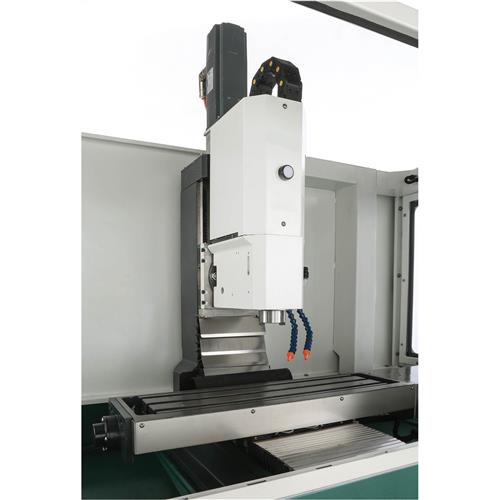

Servo motors with ball screws on all axes
Powerful 3 HP spindle servo motor
Variable-speed BT30 spindle
Easy access to table
Rapid table speeds of up to 240 in./min.
Need help?We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0875Z comes with a 1-year warranty.
