50' Professional Hose Reel  Kit - Assembled
50' Professional Hose Reel  Kit - Assembled
50' Professional Hose Reel  Kit - Assembled
50' Professional Hose Reel  Kit - Assembled
50' Professional Hose Reel  Kit - Assembled

50' Professional Hose Reel Kit - Assembled

Regular price
$310.95
Sale price
$310.95
Quantity must be 1 or more

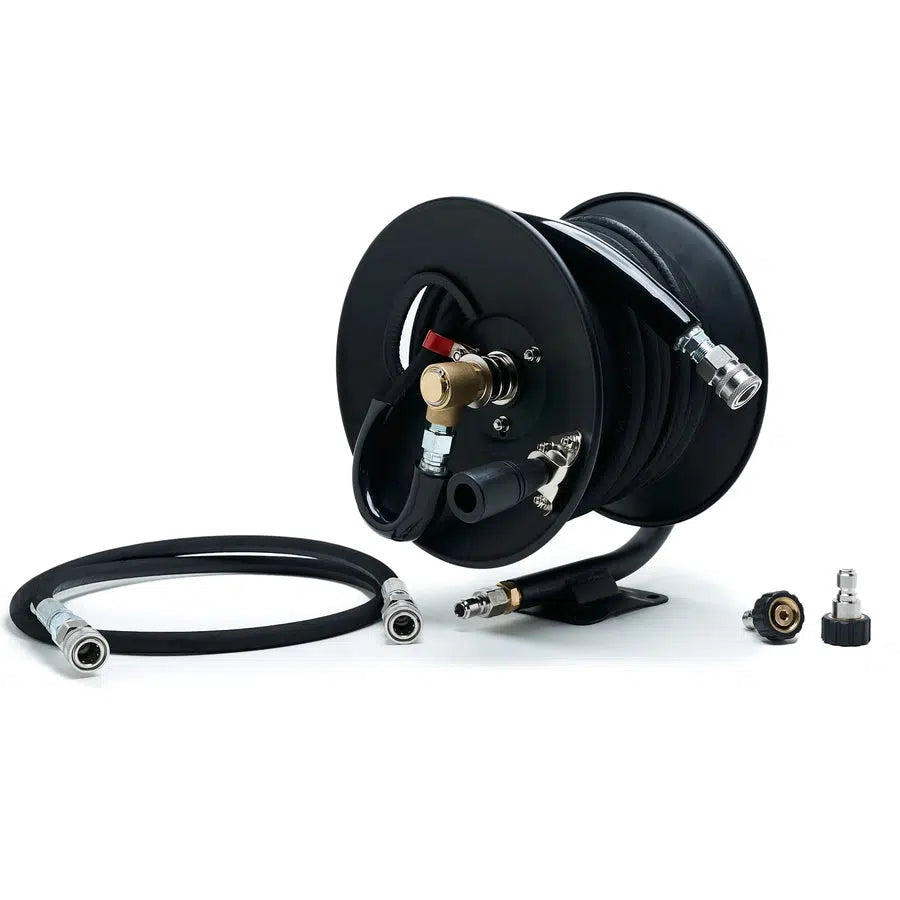

This all-inclusive hose reel kit has everything you need including installed fittings and assembly! The Professional 50' Hose Reel Kit includes a 50' hose reel, a 50' KobraJet black hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models.

Specifications

  • 50' Hose Reel
  • Supports 50' of 3/8" (ID) pressure washing hose
  • Mounted Weight of 19lbs.
  • 4,000 PSI Max
  • 140° Max Temp


Included

  • 50’ Hose Reel
  • 50’ KobraJet Black3/8” 4,000 PSI Hose
  • 5’ Whip Line 3/8" stainless steel couplers installed
  • 3/8” stainless steel plug installed on inlet of hose reel
  • 3/8” stainless steel coupler installed on outlet of hose
  • Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
  • Teflon Tape
  • Installation and mounting instructions


Reel Dimensions

Measurement 50' 100' 150' 200'
Height 12.5" 12.5" 16.5" 16.5"
Total Width 11" 15" 15" 20.5"
Depth 10.5" 10.5 13.5" 13.5"
Wall Width 7.5" 12" 10" 16"
Core Width 4.375" 8.75" 6.375" 12.5"
Core Diameter 4.25" 4.25" 5.5" 5.5"
Inlet 3/8" Male NPT 3/8" Male NPT 3/8" Male NPT- 9" Pigtail 3/8" Male NPT- 9" Pigtail
Base to Center of Core 7.5" 7.5" 10" 10"
Mounting Bracket 4 holes-square - 3.375" to center 4 holes-square - 3.375" to center 4 slots-4.25" W x 3.375" D 4 slots-4.25" W x 3.375" D
Hole Diameter 0.375" Circle 0.375" Circle 0.375" x 2.2" Slot 0.375" x 2.2" Slot
Pin Lock Yes Yes Yes Yes
Mounting Hardware None None None None


;
