Description

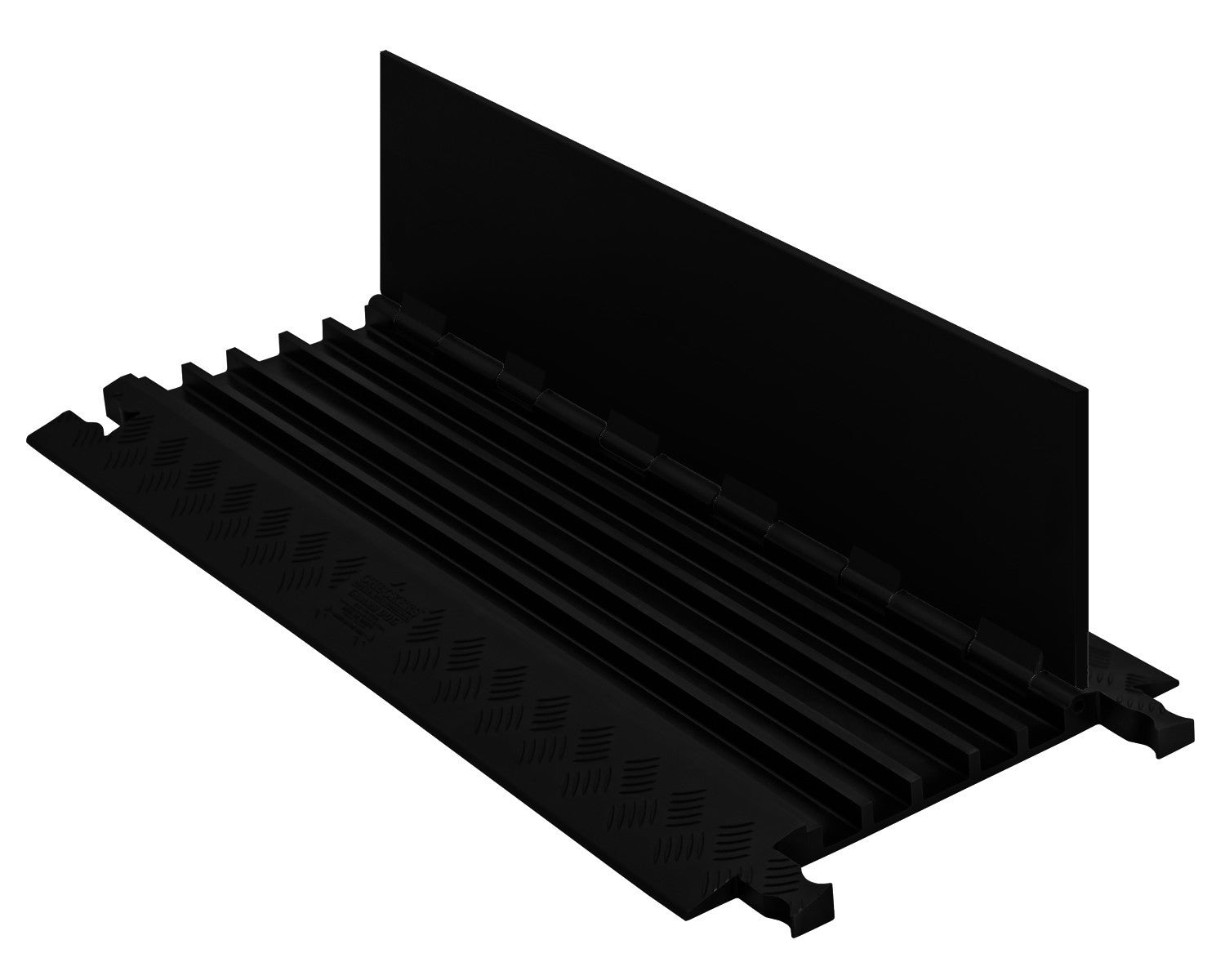

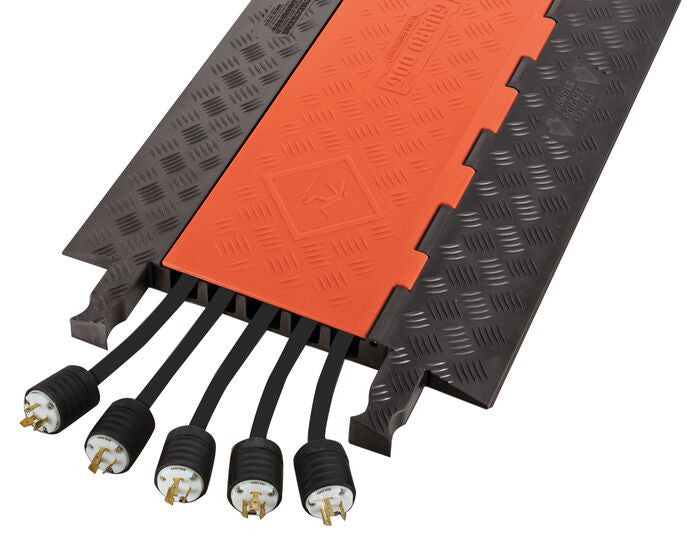

Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
Specifications
| Model No | GD5X75-ST-B/B | UPC | 812958005880 | Brand | Checkers Safety™ |
|---|---|---|---|---|---|
| Color | Black Lid / Black Base | Quantity Included | 1 | Pallet Quantity | 54 |
| Load Capacity Per Axle | 48000 lbs | Load Capacity Per Tire | 24000 | Length (Inches) | 38.38 |
| Width (Inches) | 16.88 | Height (Inches) | 1.25 | Max Cable Outside Diameter (Inches) | 0.75 |
| Number of Channels | 5-Channels | Connector Type | Dog Bone Connector | Channel Width | 1.28 |
