Description

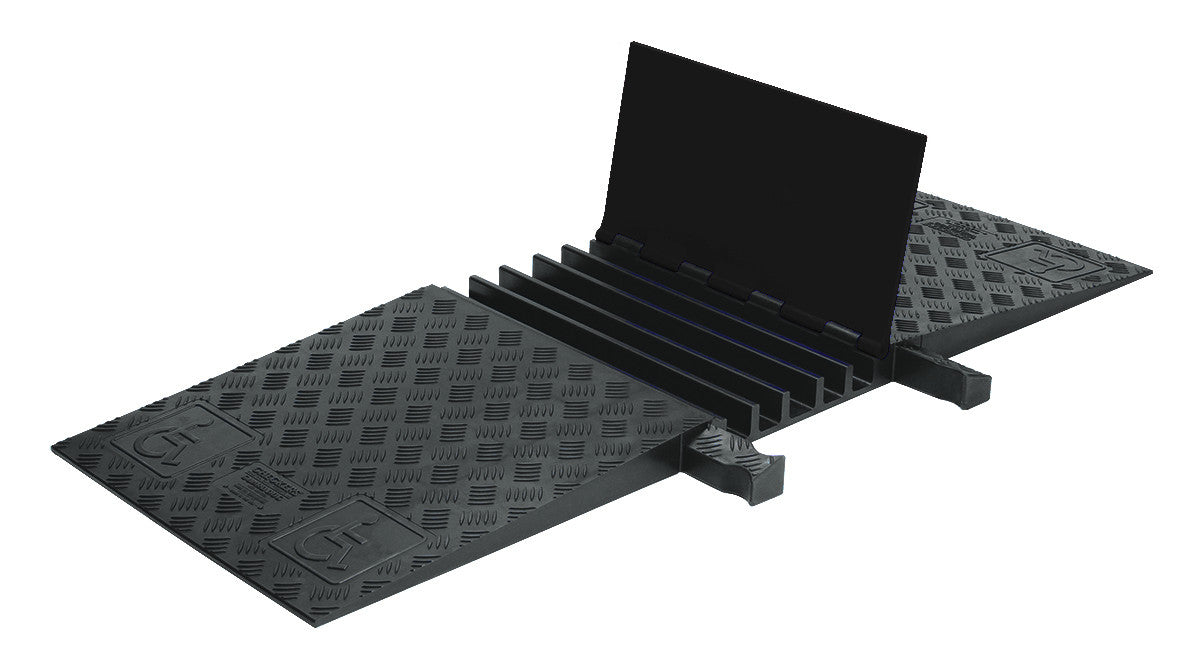

Made of all-weather polyurethane and featuring a patented 5-bar tread surface, Guard Dog's 5-channel ADA cable protectors are equipped with built-in accessibility ramps. This allows them to provide safe passage for both vehicle and foot traffic without the need for separate connectors. Featuring a modular, interlocking design available in lightweight 18" sections, this protector is ideal for virtually any use.
A reinforced hinged lid allows for easy cable placement, while a recessed carrying handle on the protector's underside makes transportation easy. The product is compatible with all standard 5 channel Dog Bone Connector Models, meaning you don't need specialized equipment in order to extend it to whatever length you need.
Custom cable protectors can be made with different colors and embossed logos. Get a quote with your specific requirements.
Specifications
| Model No | GD5X125-ADA-B/B | UPC | 812542021272 | Brand | Checkers Safety™ |
|---|---|---|---|---|---|
| Accessory Type | ADA | Color | Black Lid / Black Base | Quantity Included | 1 |
| Load Capacity Per Axle | 21000 lbs | Load Capacity Per Tire | 10500 | Length (Inches) | 18 |
| Width (Inches) | 50 | Height (Inches) | 1.88 | Max Cable Outside Diameter (Inches) | 1.325 |
| Number of Channels | 5-Channels | Connector Type | Dog Bone Connector | Channel Width | 1.339 |
